51 16 040 Removing and installing/replacing housing on left or right door mirror: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Tilt door mirror forwards a little.

NOTE: Only grip the innermost area (1) on the drainage groove of the mirror cap; otherwise the inside catch would be damaged.

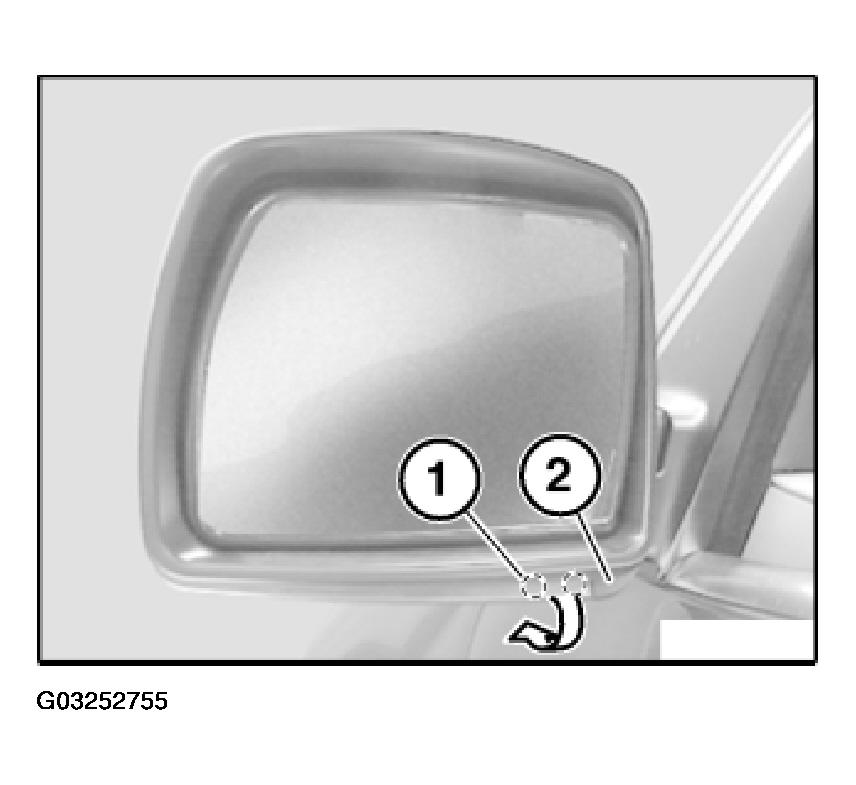

Unlock mirror (1) cap from mirror foot (2).

Fig 1: Unlocking Mirror Cap From Mirror Foot

Courtesy of BMW OF NORTH AMERICA, INC.

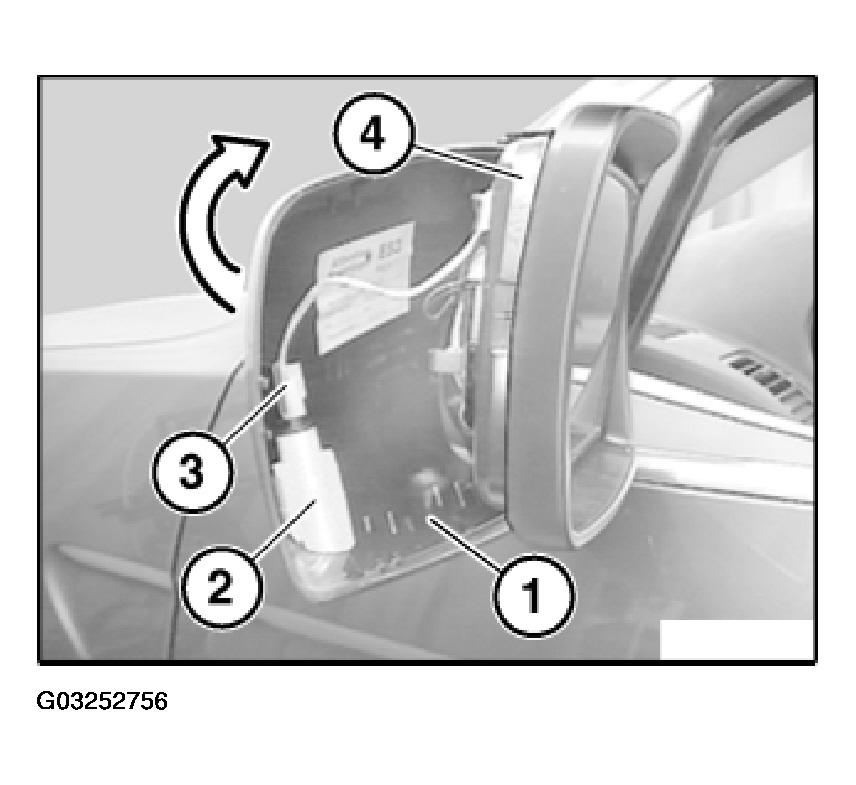

Unfasten mirror cap (1) forwards/upwards until light (2) is accessible.

Disconnect plug-in connection (3).

Turn mirror cap (1) forwards/upwards and remove from mirror foot (4).

Fig 2: Disconnecting Plug-In Connection

Courtesy of BMW OF NORTH AMERICA, INC.
