Attachment Parts On Underside Of Rear Spoiler Lower Section:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Attach muckets (1) on left/right.

Stick on buffers (2) on left/right.

Stick on stop buffer (3) in middle.

  1. Mucket 45 mm long
  2. Buffer 5.8 mm high
  3. Stop buffer 2.2 mm high

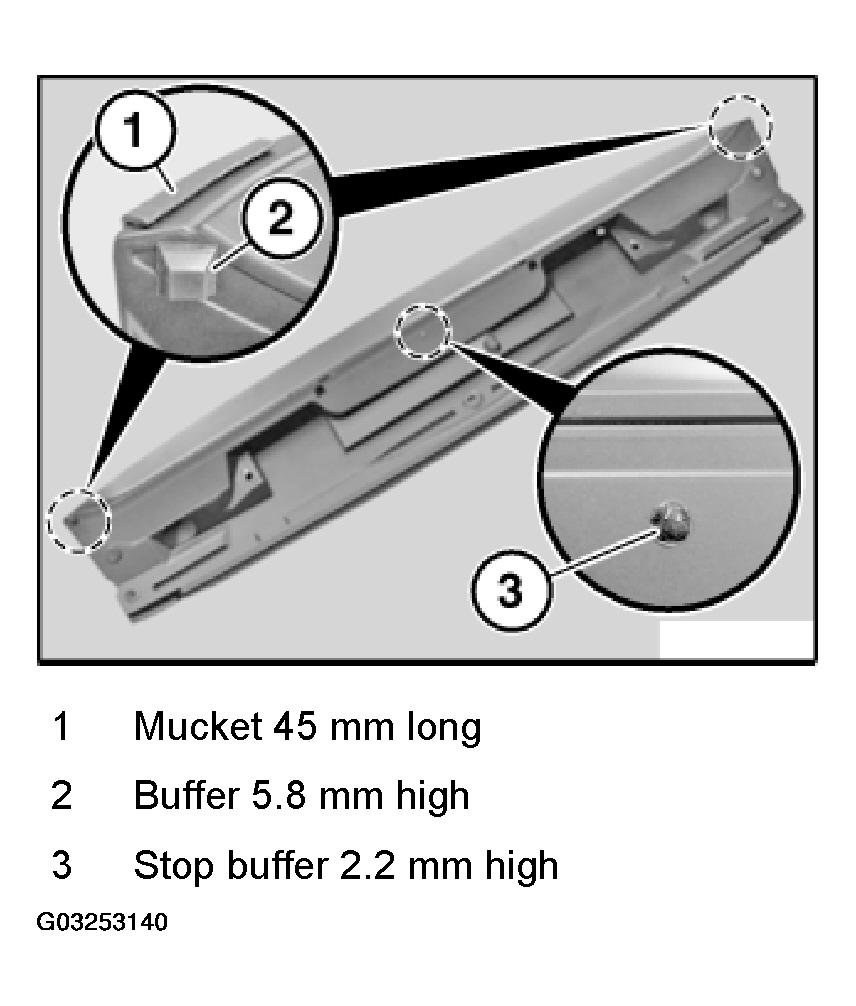

    Fig 1: Attaching Muckets On Left/Right
    G03253140Courtesy of BMW OF NORTH AMERICA, INC.
