51 71 080 Removing and installing/replacing heater bulkhead: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Detach sealing strips (1).

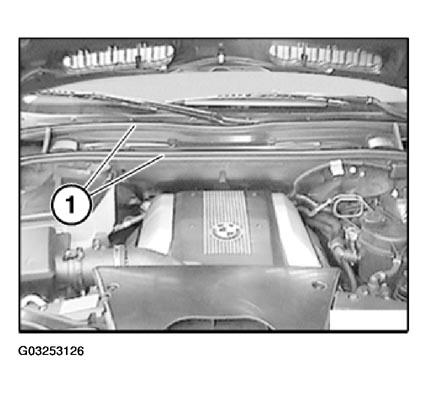

Fig 1: Detaching Sealing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Turn toggles through approx. 90°.

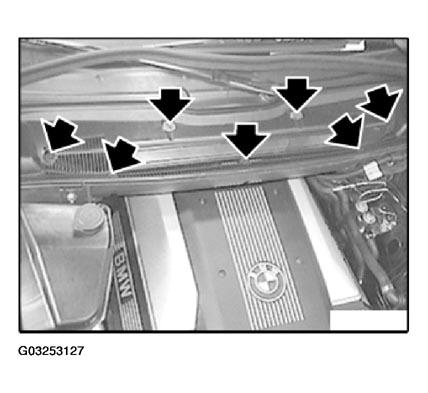

Fig 2: Turning Toggles

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out cover (1).

Unfasten screws.

Pull out heater bulkhead (2).

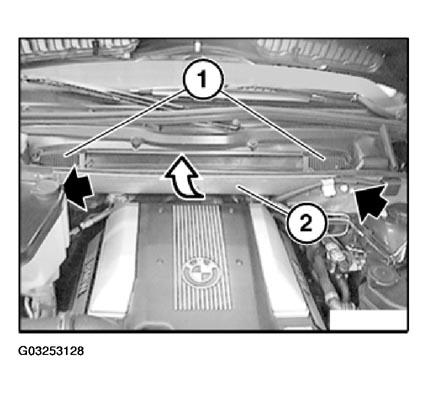

Fig 3: Lifting Out Cover

Courtesy of BMW OF NORTH AMERICA, INC.
