51 71 080 Removing and installing/replacing heater bulkhead: Installation:
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

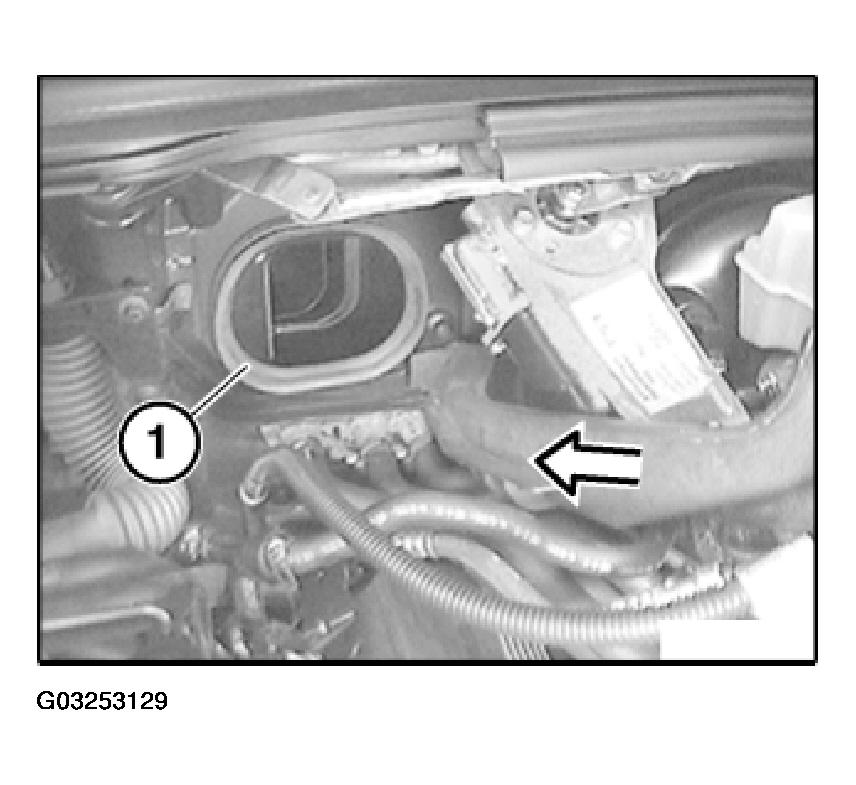

Check rubber seals (1) on left and right and replace if necessary.
Coat rubber seals (1) on left and right with rubber protection coating agent.
Heater bulkhead is guided at sides via guide channels.
Clean guide channels and coat with rubber protection coating agent.
