51 45 030 Removing and installing instrument panel trim: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

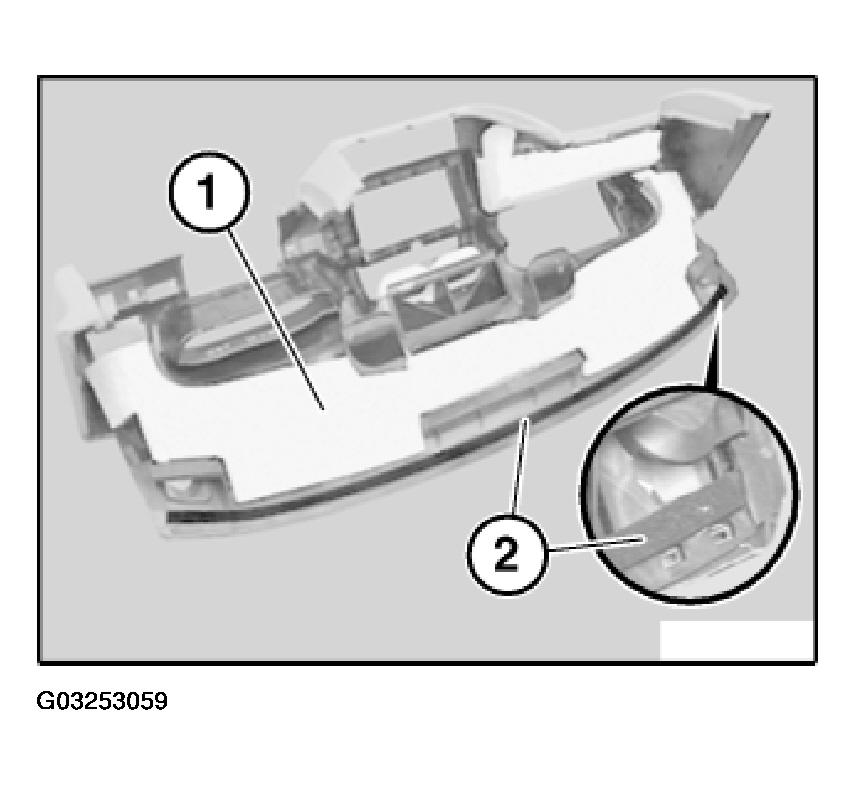

Anti-drumming lining (1) must be correctly stuck on.

Foam strip (2) must be correctly stuck on.

Fig 1: Inspecting Foam Strip Must Be Correctly Stuck On

Courtesy of BMW OF NORTH AMERICA, INC.

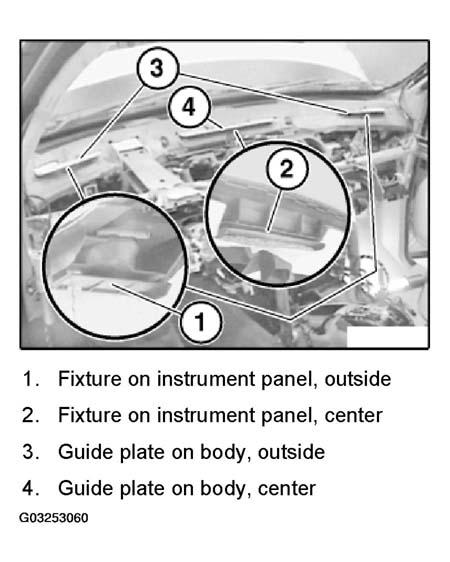

Push fixtures (1) and (2) onto guide plates (3) and (4).

Fixture on instrument panel, outside
Fixture on instrument panel, center
Guide plate on body, outside
Guide plate on body, center

Fig 2: Pushing Fixtures (1) And (2) On To Guide Plates
Courtesy of BMW OF NORTH AMERICA, INC.
