Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

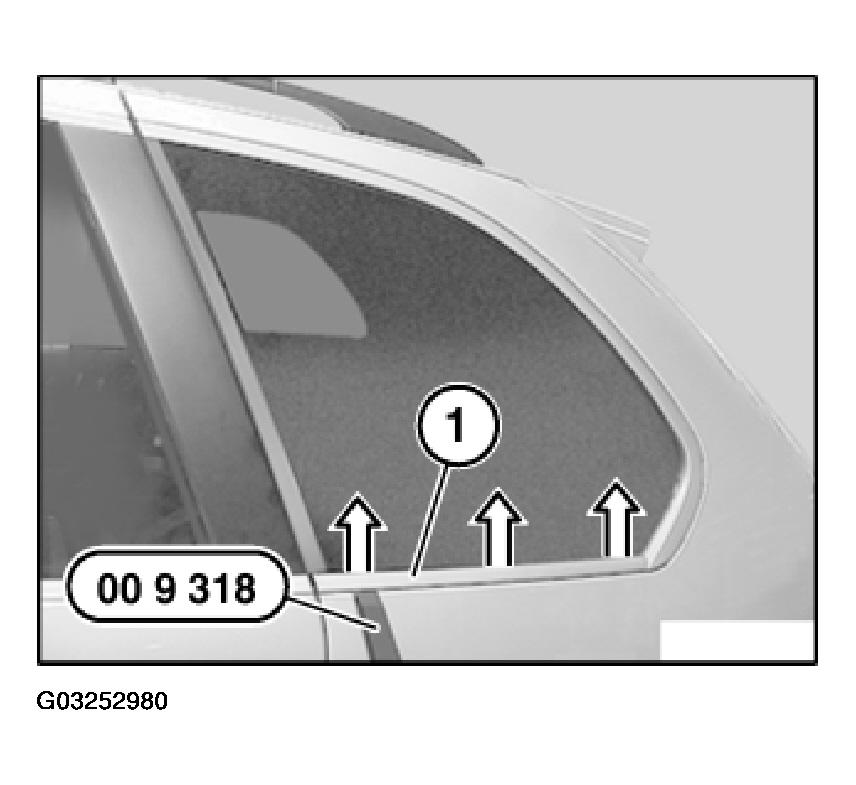

Carefully lever out strip (1) with special tool 00 9 318 from rear to front in direction of arrow.

Fig 1: Identifying Out Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

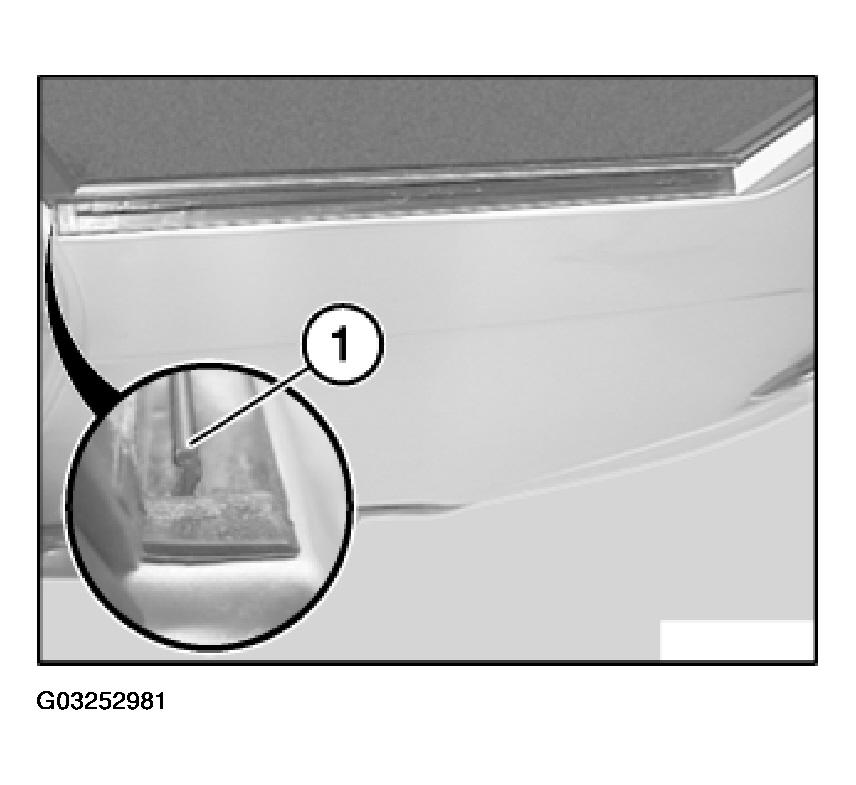

If necessary, detach clips from bridge (1). Bridge (1) must not be damaged.

Fig 2: Detaching Clips From Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

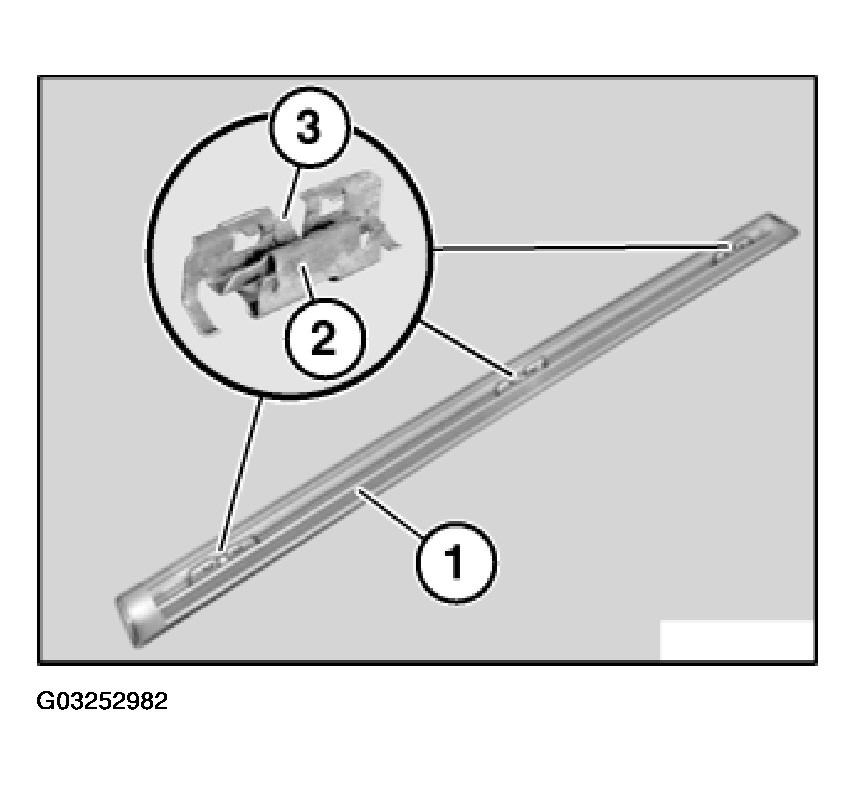

If necessary, replace faulty clips (2).

Attach clips (2) to strip (1).

Lock (3) must be correctly engaged in strip (1).

Fig 3: Attaching Clips To Strip

Courtesy of BMW OF NORTH AMERICA, INC.
