51 36 035 Removing and installing/replacing trim on side window at top rear left or right: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

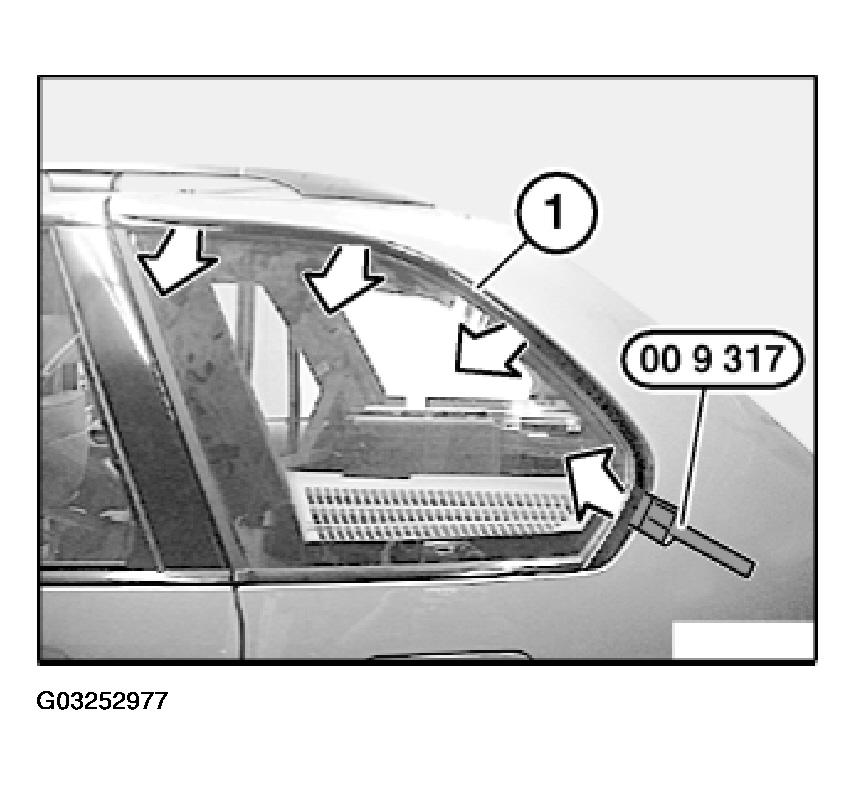

Carefully lever out trim (1) with special tool 00 9 317.

Fig 1: Identifying Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

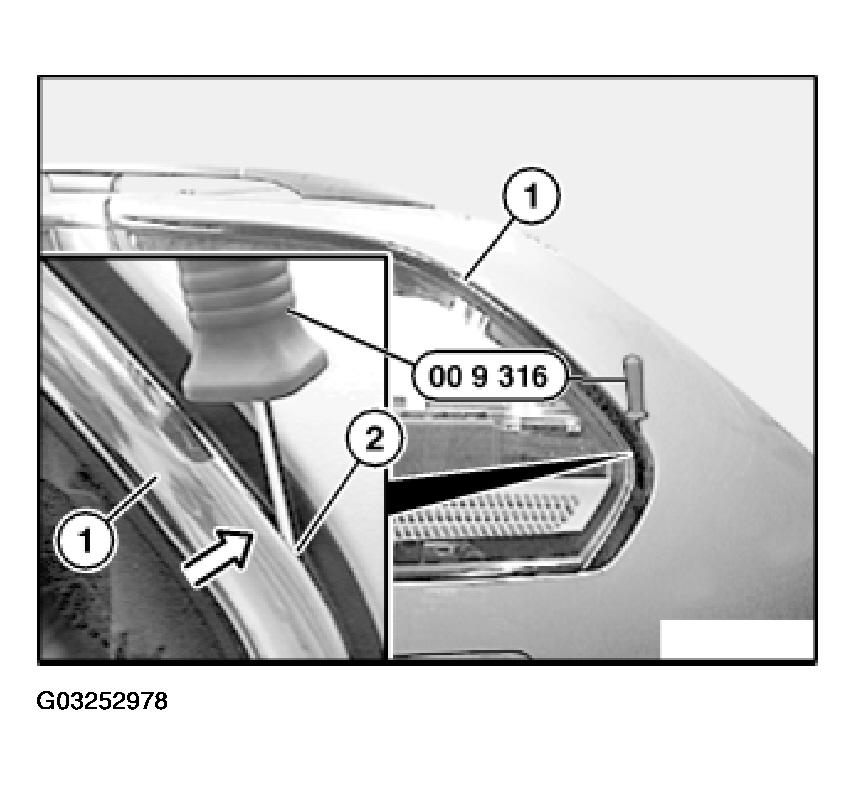

Fit trim (1), raise sealing lip (2) with special tool 00 9 316 and at same time snap trim (1) into place.

Fig 2: Fitting Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

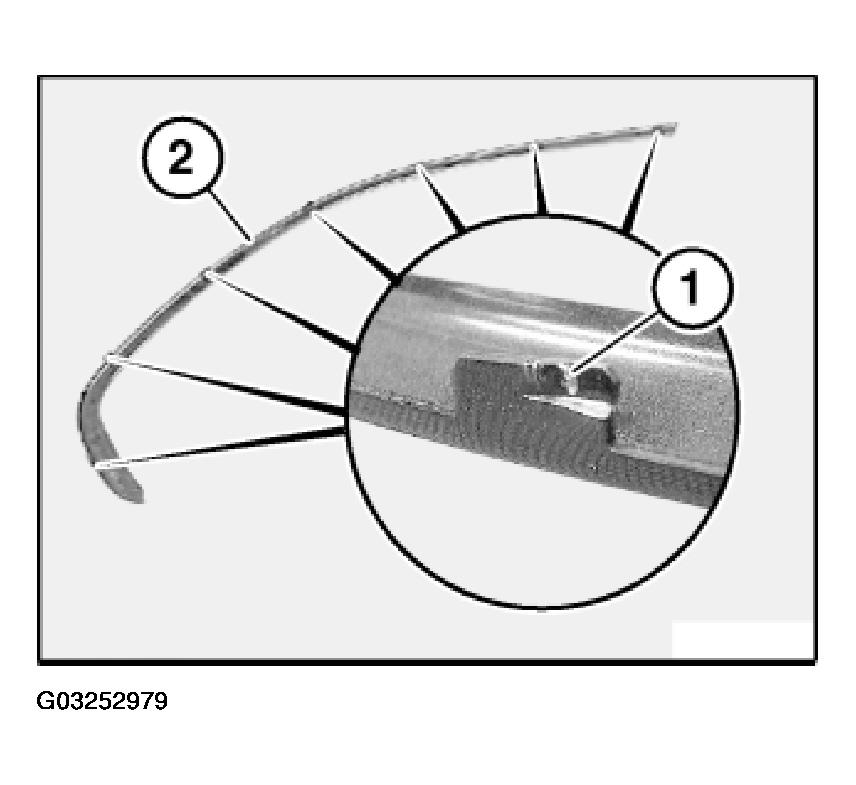

Catches (1) on trim (2) must not be damaged.

If trim (2) fails to engage correctly, bend catches (1) slightly.

Fig 3: Inspecting Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
