51 23 265 Removing and installing/replacing left or right gas strut for engine bonnet/hood
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury and damage!
For the following tasks, you must take the appropriate measures to support the engine bonnet/hood.
As an alternative, you can enlist the help of a second person to hold the bonnet/hood.
For the following tasks, you must take the appropriate measures to support the engine bonnet/hood.
As an alternative, you can enlist the help of a second person to hold the bonnet/hood.
Raise bonnet/hood lid.

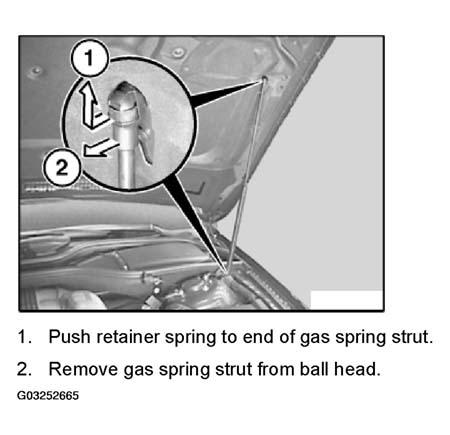

Removing gas spring strut at top and bottom:
- Push retainer spring to end of gas spring strut.
- Remove gas spring strut from ball head.
