51 31 021 Removing and installing/replacing rubber frame for windshield (top): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Rubber frame is reinforced with an aluminum strip.
Do not damage windshield when removing rubber frame.

Carefully turn and remove rubber frame (1).

Tear-off lip (2).

Aluminum strip (3).

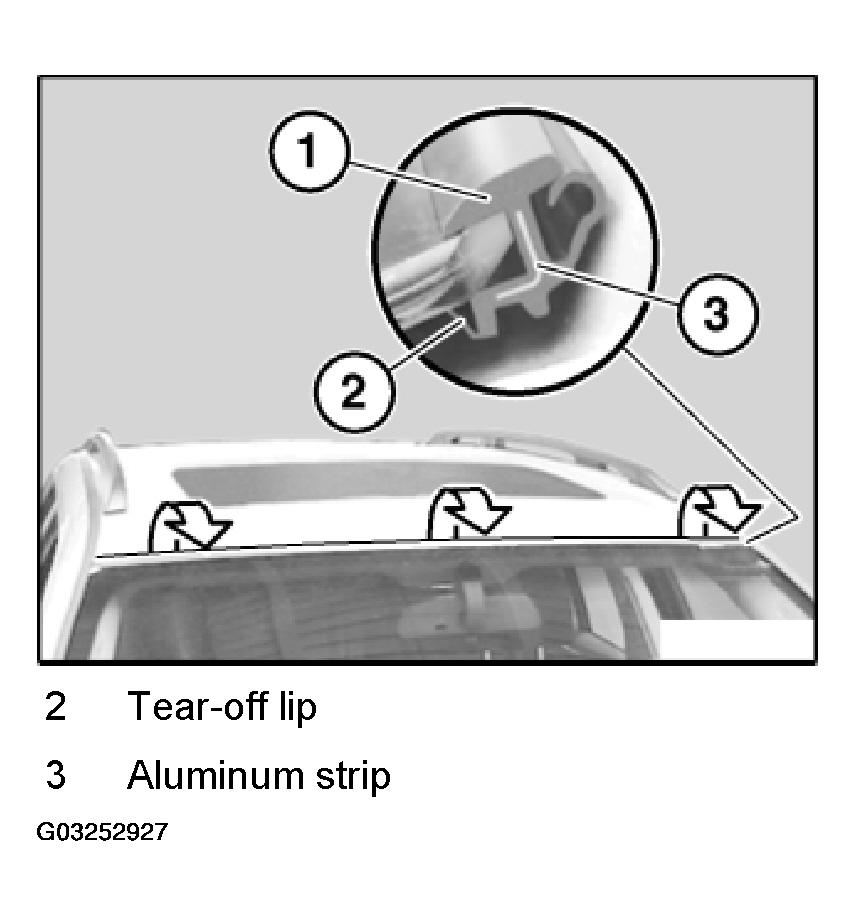

Fig 1: Removing Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When rubber frame (1) is removed, lip (2) tears off and remains in car.
