Field Of Vision (No Repairs Acceptable):

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Repairs must only be carried out outside of the field of vision.

If the stone chip damage is outside the field of vision, refer to 51 31 ... REMOVING WINDSCREEN WITH "ROLL OUT 2000"

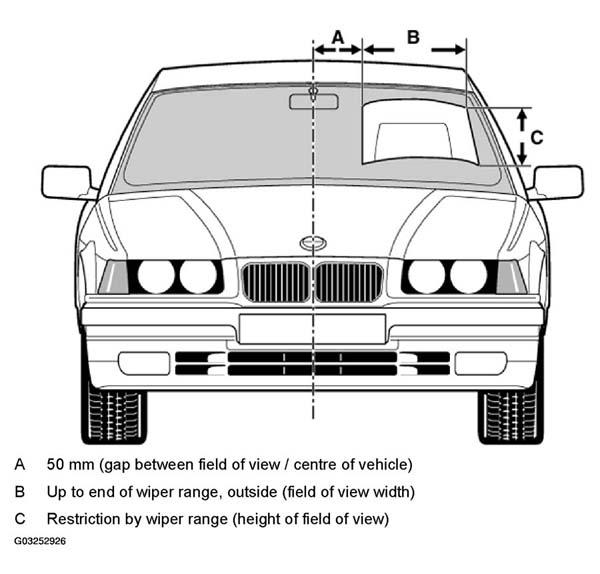

Fig 1: Identifying Field Of Vision (No Repairs Acceptable)
G03252926Courtesy of BMW OF NORTH AMERICA, INC.
