51 48 001 Removing and installing/replacing insulation lining on hood/bonnet

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using the E87 as an example. There may be differences in detail in the case of other vehicle models.

Release threaded rivets (1) on insulation lining (2).

Remove insulation lining (2).

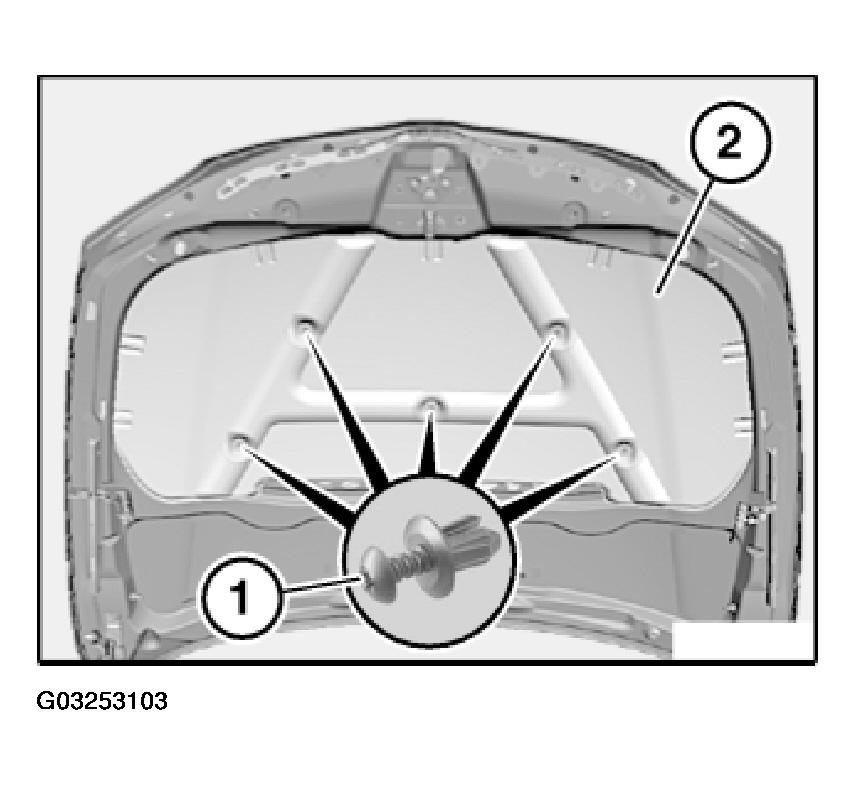

Fig 1: Releasing Threaded Rivets On Insulation Lining

Courtesy of BMW OF NORTH AMERICA, INC.
