Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. See 51 41 000 Removing And Installing Left Or Right Front Door Trim Panel .

If necessary, remove airbag module in front door. See SIDE AIR BAG MODULE .

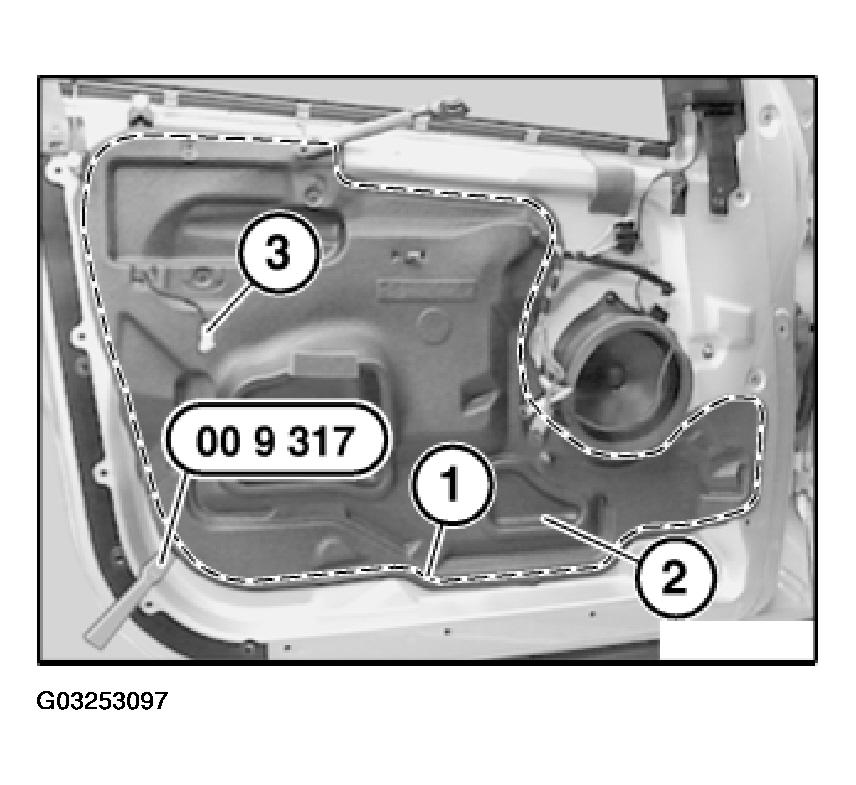

Using special tool 00 9 317 (trim panel wedge), lever out sealing bead (1) of sound insulation (2) completely or if necessary partially.

Feed airbag lead (3) out of sound insulation (2).

Fig 1: Identifying Sealing Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In event of replacement or partial detachment, lay butylene tape (sourcing reference: BMW Parts) on inner door plate or sound insulation.

Seal cable penetrations with butylene tape.

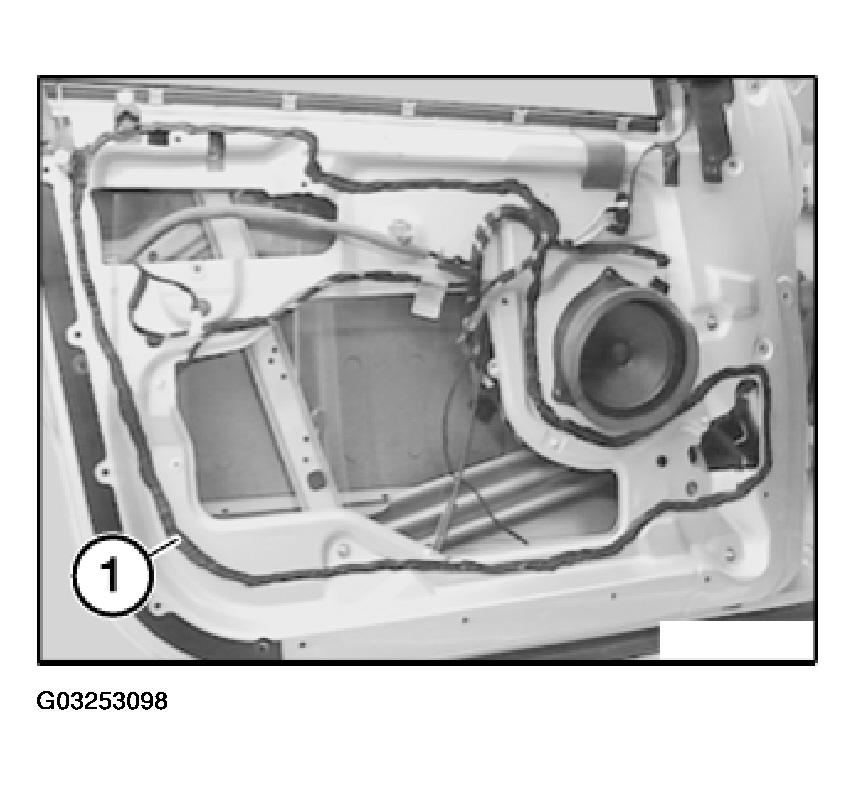

NOTE: Position of butylene tape (1) on inner door plate.

Fig 2: Positioning Of Butylene Tape On Inner Door Plate

Courtesy of BMW OF NORTH AMERICA, INC.

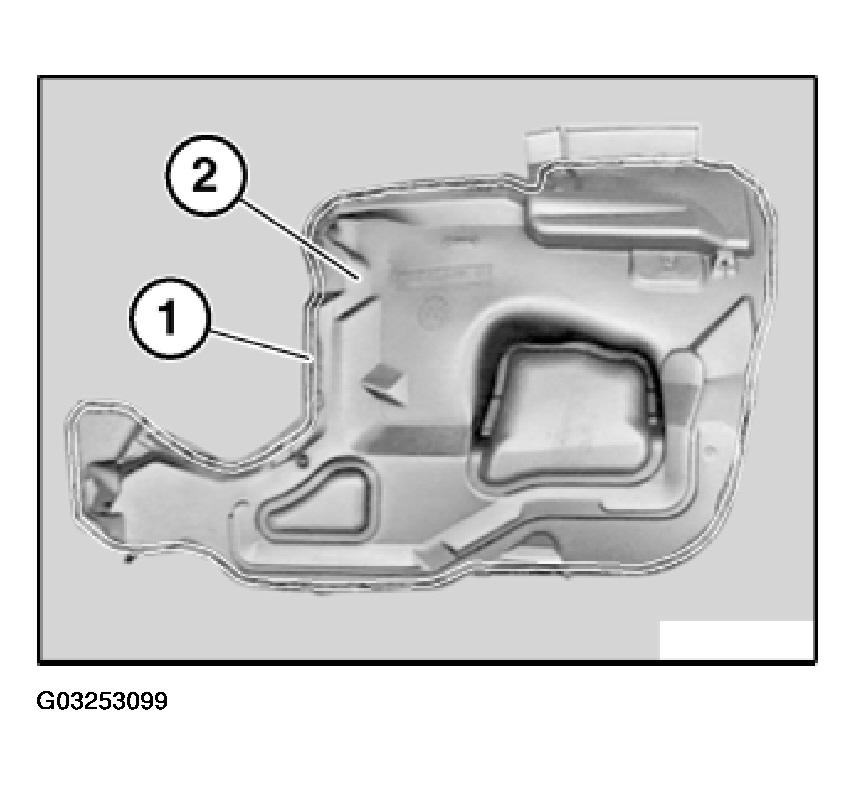

NOTE: Position of butylene tape (1) on sound insulation (2).

Fig 3: Positioning Of Butylene Tape On Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Clean specified adhesive area with adhesive cleaner (sourcing reference: BMW Parts Service).

Air drying time: 1 minute

CAUTION: The adhesive areas must be dry and free from dust and grease.
After cleaning, do not touch the adhesive areas with bare hands.

Lay single row of 6 mm dia. butylene tape or double row of 3 mm dia. tape (sourcing reference: BMW Parts Service) in specified adhesive area.

Heat butylene tape (hot air blower) and press down firmly on sound insulation all around.

Contact pressure with hand roller: approx. 30 N/cm²

Manual contact pressure: approx. 10 N/cm²

NOTE: Firm thumb pressure has approx. 50 N/cm²
