51 41 018 Replacing speaker frame on front left or right door trim panel: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. See 51 41 000 Removing And Installing Left Or Right Front Door Trim Panel .

Release plastic welded joints (1) and remove speaker frame (2).

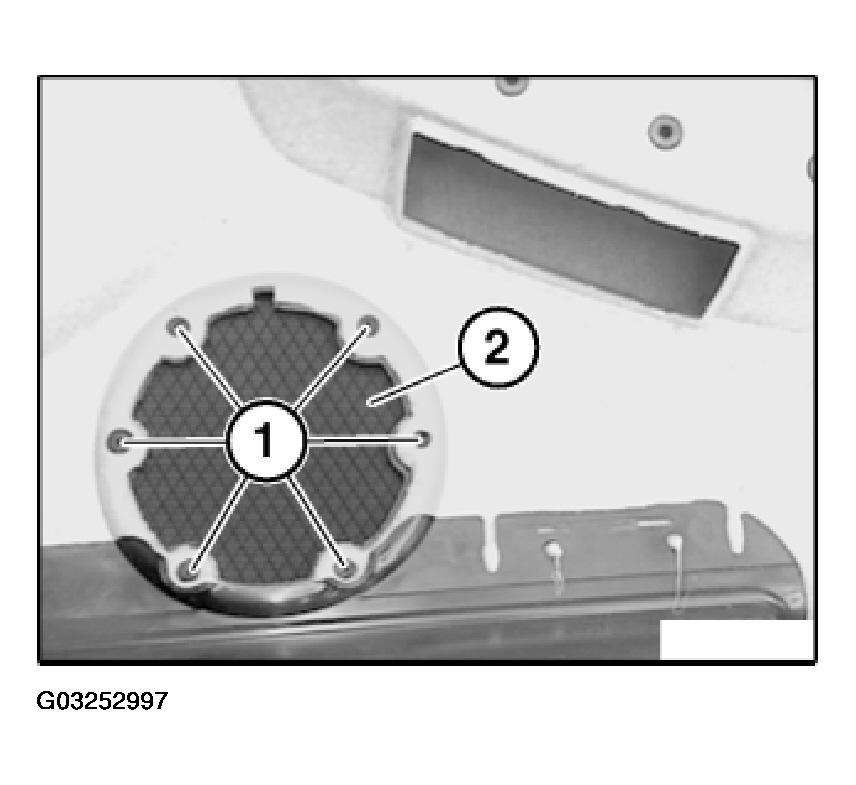

Fig 1: Removing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.
