51 21 351 Replacing window cavity seal on left or right front door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Pull off window cavity seal (1) towards top.

Installation:

If necessary, replace faulty clips (2).

For installation, coat window cavity seal (1) with turpentine substitute (sourcing reference: BMW Parts Service).

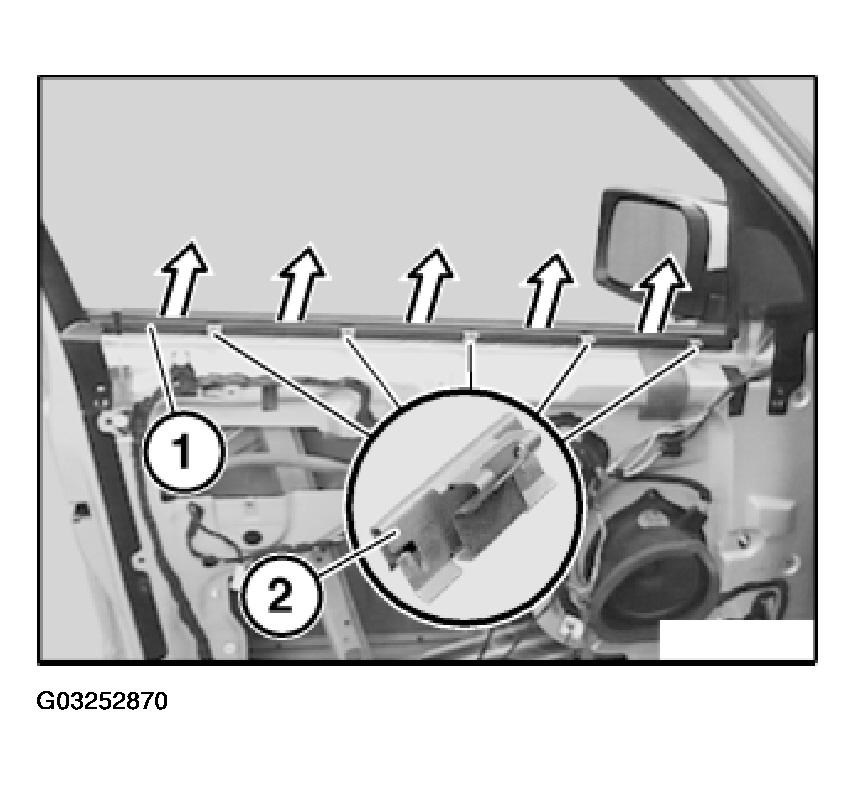

Fig 1: Pulling Off Window Cavity Seal Towards Top
G03252870Courtesy of BMW OF NORTH AMERICA, INC.
