Special Tools Required:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

00 9 311

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

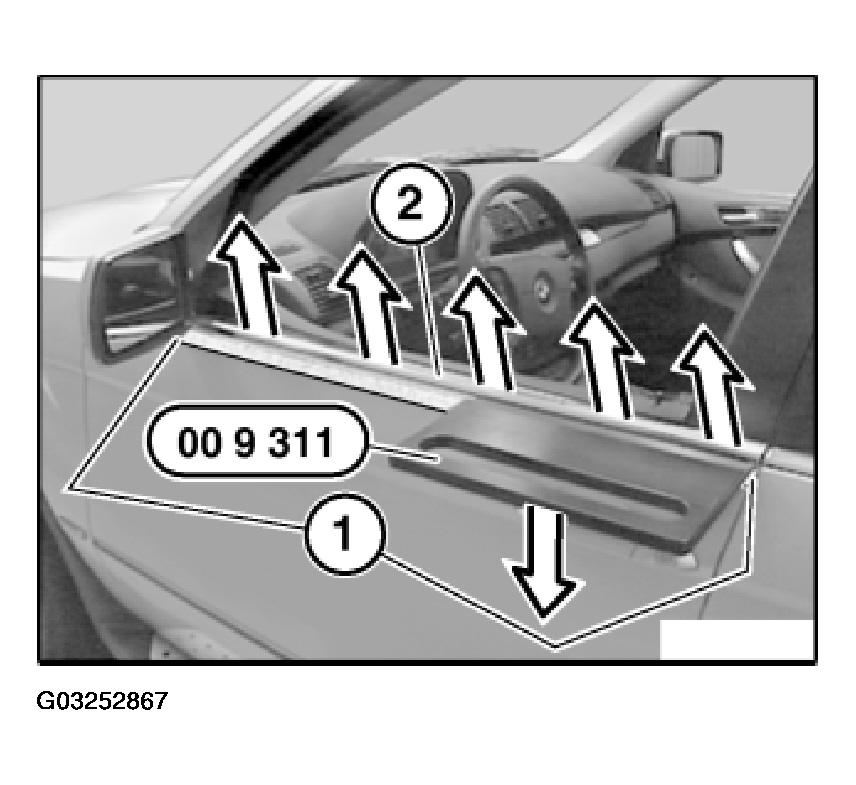

Using special tool 00 9 311 and proceeding from rear to front, lever out window cavity cover strip (1).

Installation:

For installation, coat window cavity seal (1) with turpentine substitute (sourcing reference: BMW Parts Service).

Window cavity cover strip (1) must be flush with door edge at front and rear.

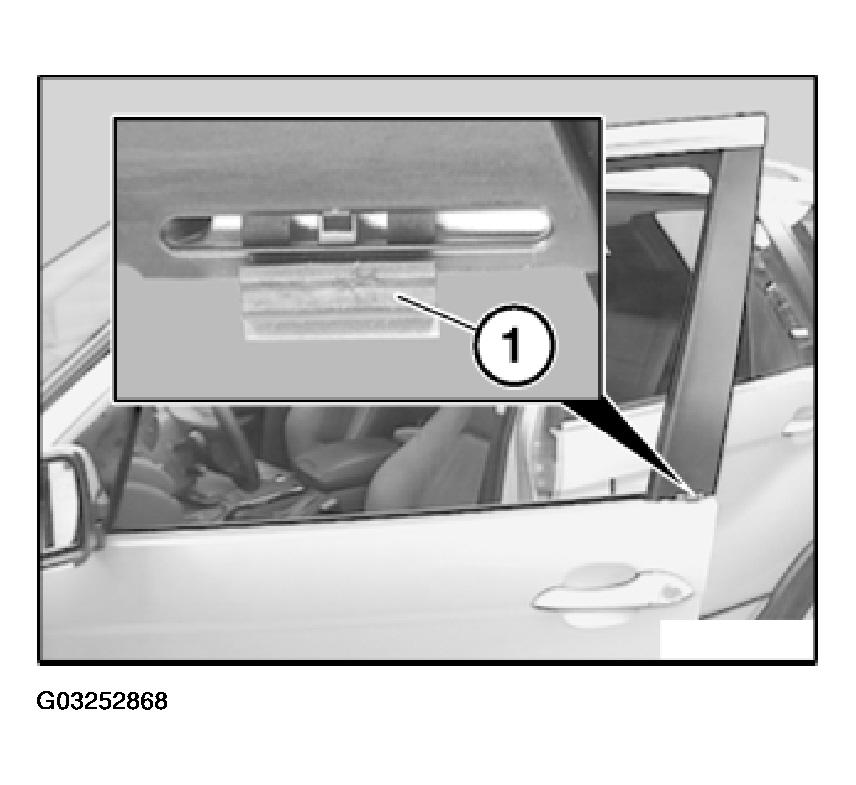

Fig 1: Attaching Adhesive Tape Below Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip (1) must not be damaged.

Fig 2: Locating Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainer (1) of window cavity cover strip (2) must not be damaged.

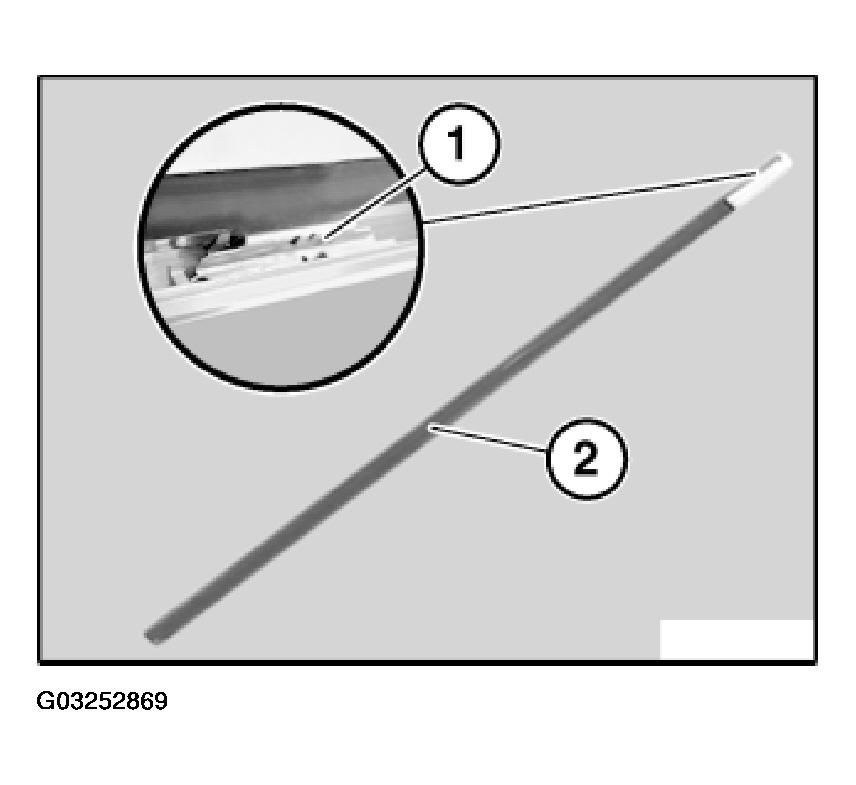

Fig 3: Checking Retainer Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
