51 21 140 Removing and installing/replacing complete lock cylinder: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

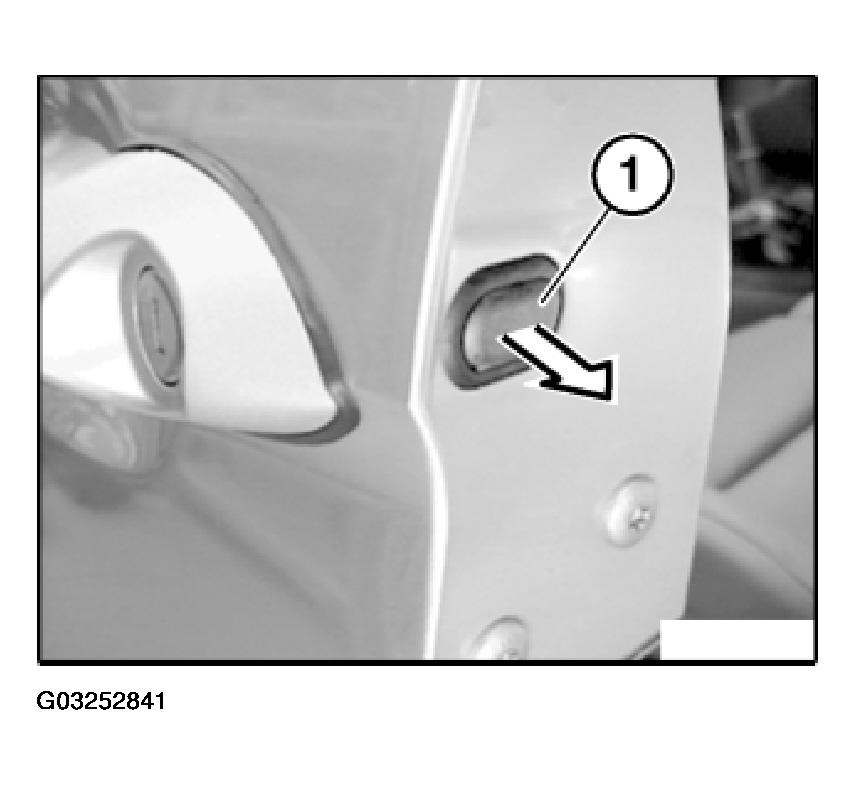

Fit new plate (1).

Fig 1: Removing Plate

Courtesy of BMW OF NORTH AMERICA, INC.

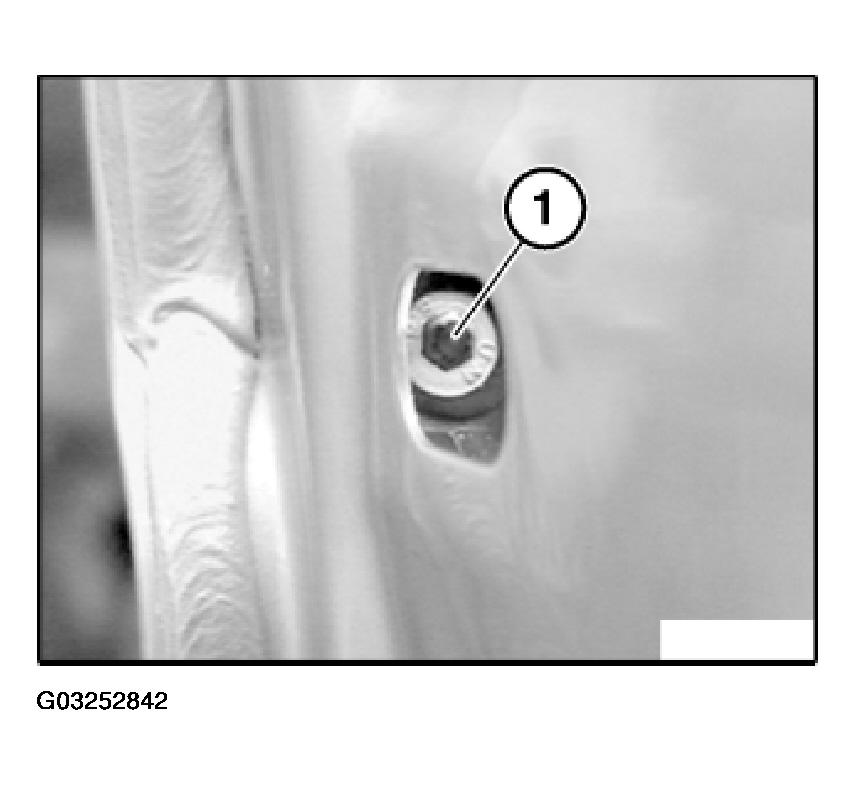

Release screw (1).

Fig 2: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

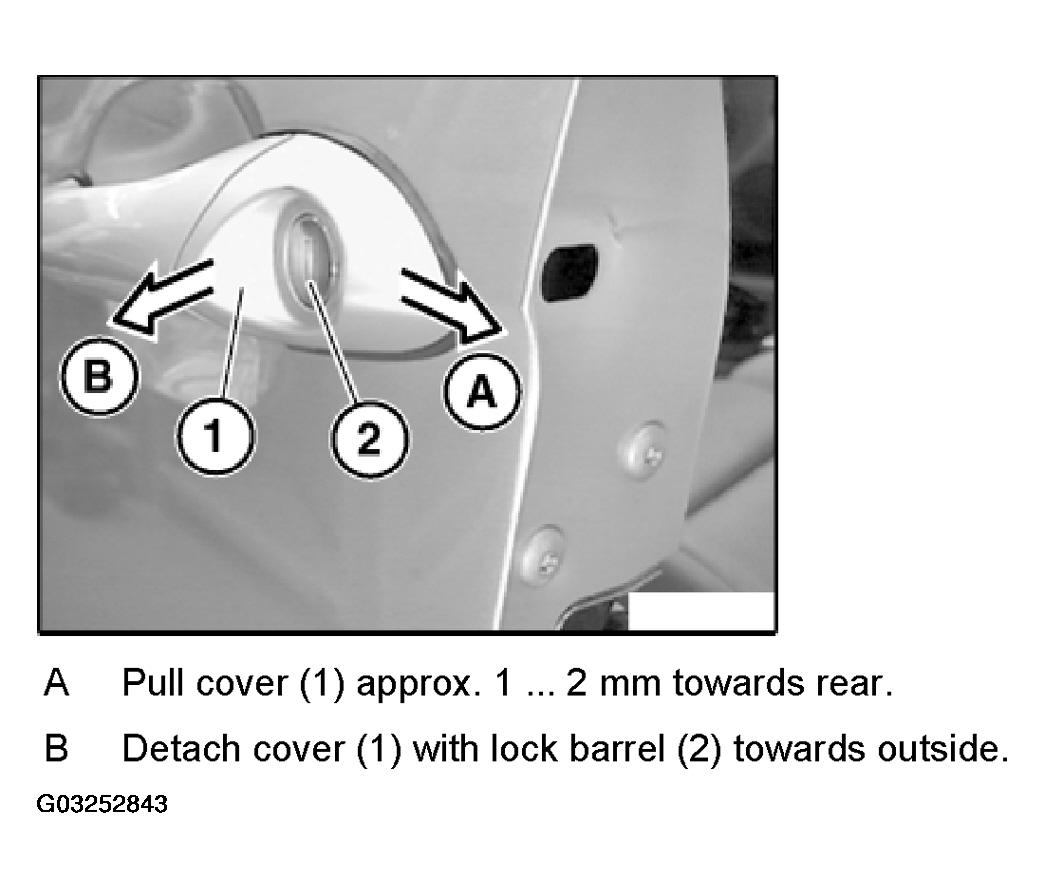

Removing cover (1) on outside handle:

A Pull cover (1) approx. 1 ... 2 mm towards rear.
B Detach cover (1) with lock barrel (2) towards outside.

Fig 3: Removing Cover On Outside Handle
Courtesy of BMW OF NORTH AMERICA, INC.

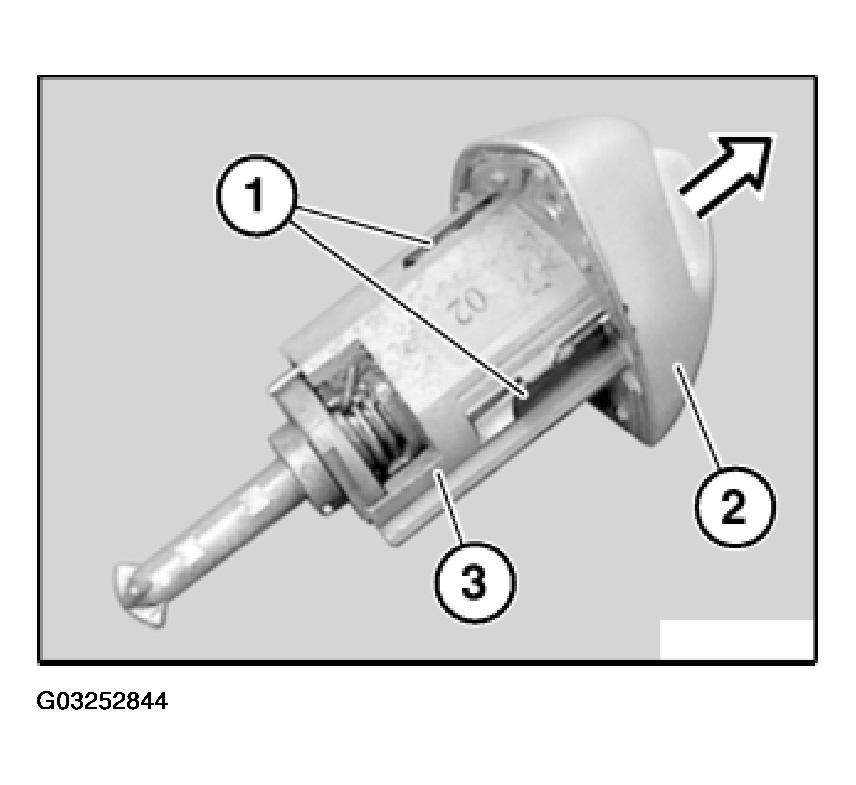

Remove catches (1) and detach cover (2) from lock cylinder (3).

Fig 4: Detaching Cover From Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

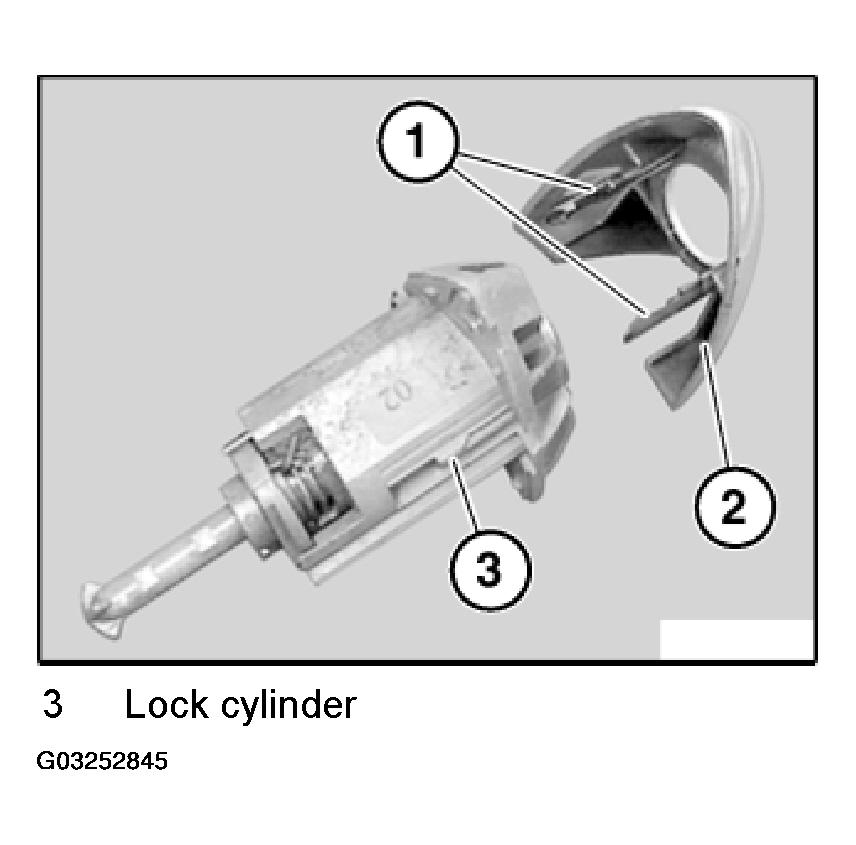

Catches (1) on cover (2) must not be damaged.

3 Lock cylinder

Fig 1: Checking Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

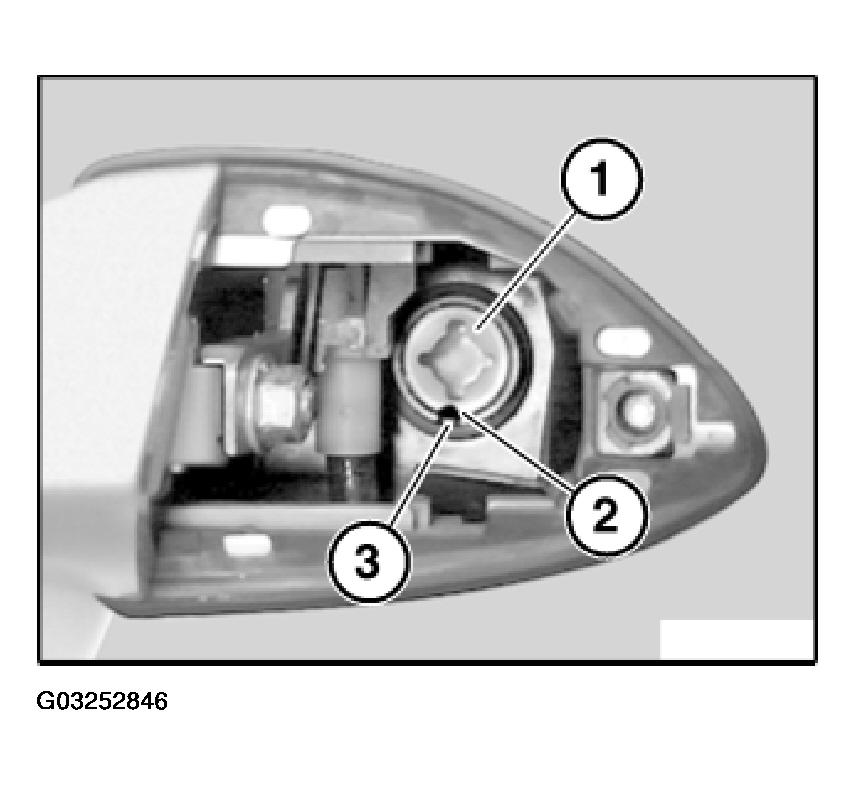

Notch (2) on paddle support (1) must be secured in catch (3).

Only in this position will installation of the lock barrel be guaranteed.

Fig 1: Inspecting Notch On Paddle Support Must Be Secured In Catch

Courtesy of BMW OF NORTH AMERICA, INC.
