51 11 050 Removing and installing/replacing member (cross-member) for front bumper trim: Replacement:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release nut (3) and remove fanfare horns (2).

Version up to 10/03:

Release welding spots (4), remove holder (5) and protect bright metal plate against rusting.

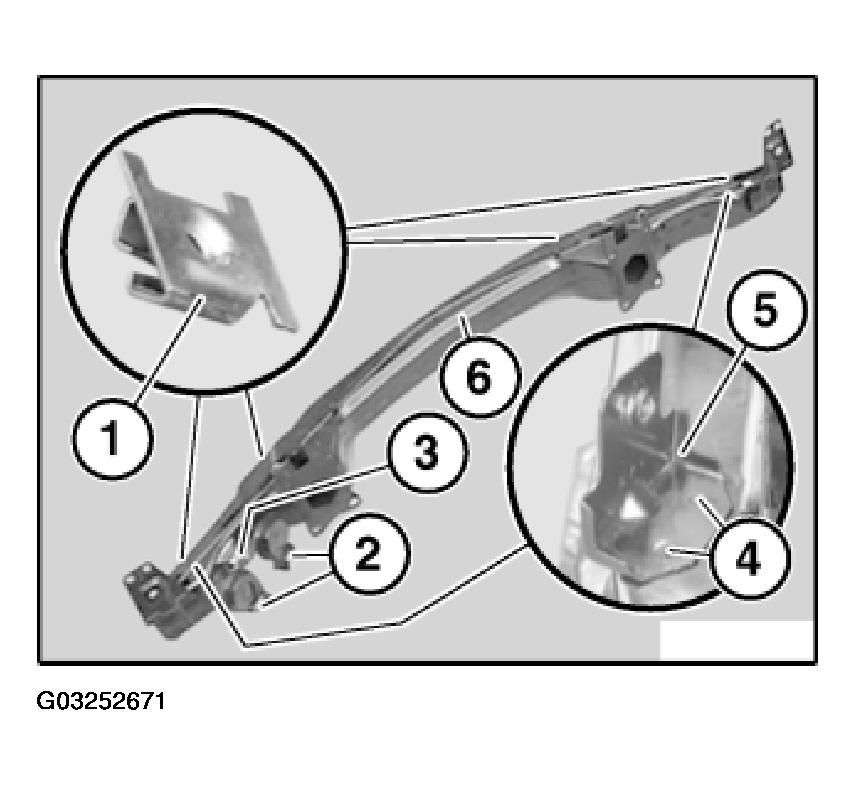

Fig 1: Releasing Nut And Removing Fanfare Horns

Courtesy of BMW OF NORTH AMERICA, INC.
