51 11 050 Removing and installing/replacing member (cross-member) for front bumper trim: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove underride protection

NOTE: The operation is described on the left side; proceed in the same way for the right side.

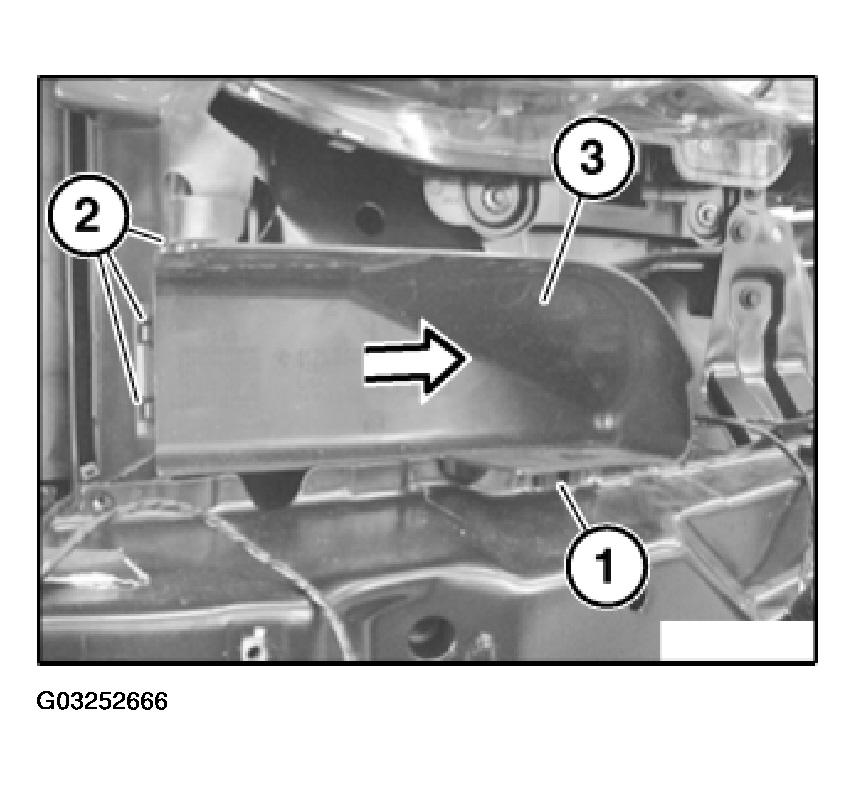

Lever lower trim (3) out of guide (1).

Unlock catches (2) and remove trim (3) in direction of arrow.

Fig 1: Unlocking Catches And Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

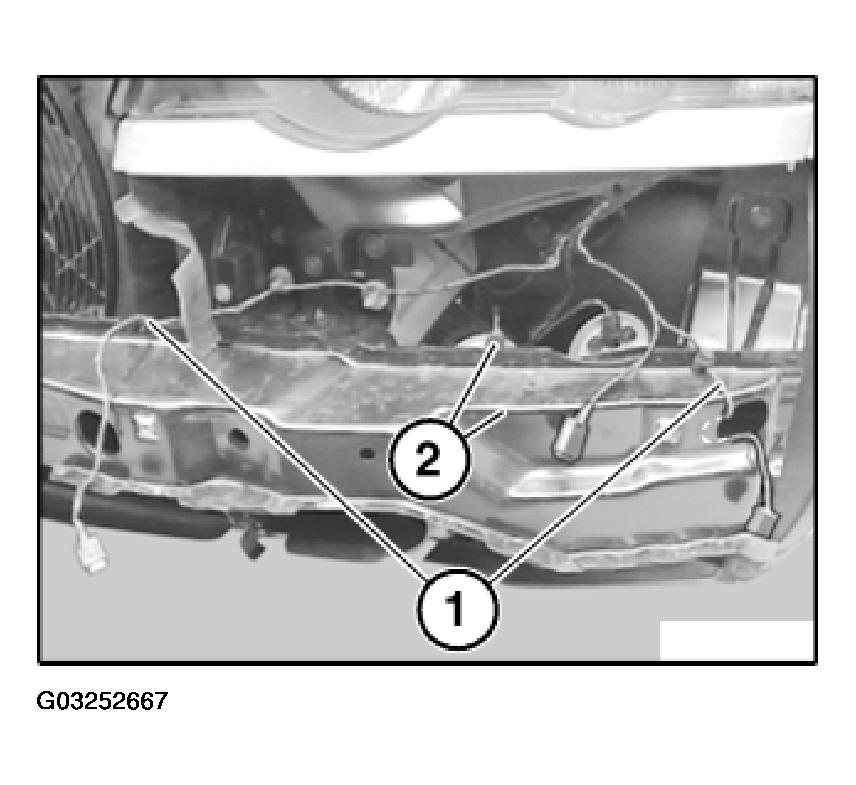

Release cable ties (1).

Disconnect plug connections (2) for fanfare horns.

Fig 2: Disconnecting Plug Connections For Fanfare Horns

Courtesy of BMW OF NORTH AMERICA, INC.

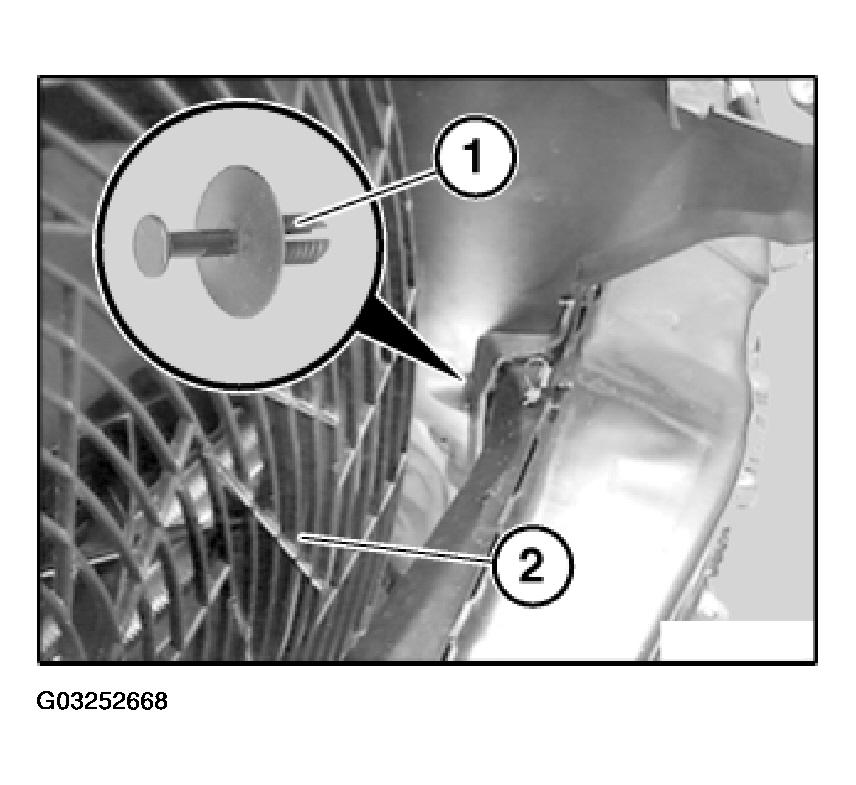

Release expander rivet (1) from fan impeller (2).

Fig 3: Releasing Expander Rivet From Fan Impeller

Courtesy of BMW OF NORTH AMERICA, INC.

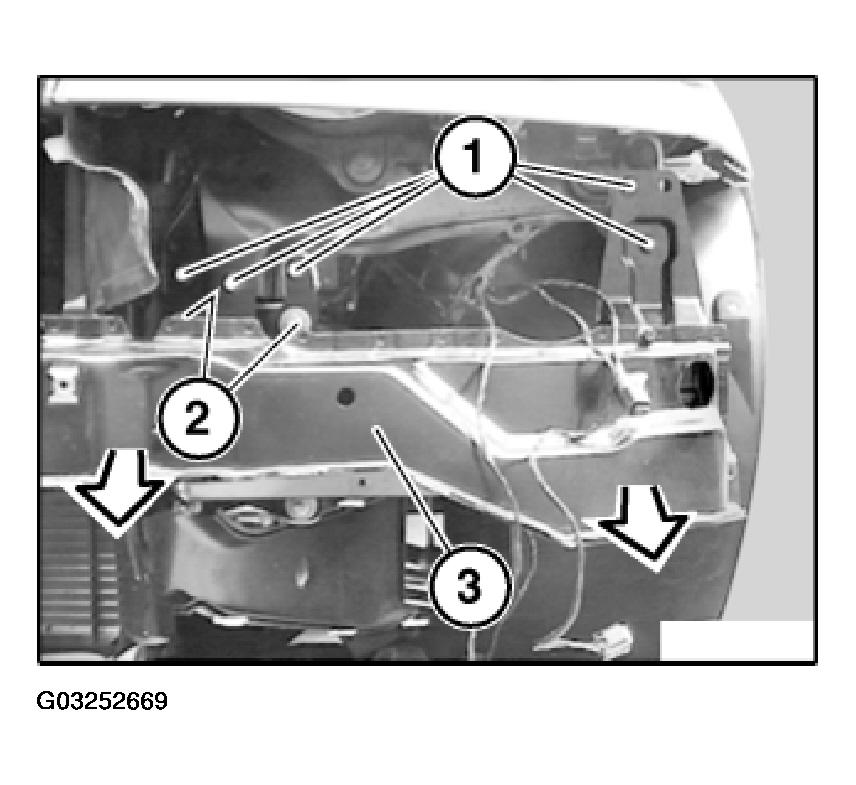

NOTE: For vertical adjustment, mark position of member (3).

Release screws (1).

Release nuts (2) and remove member (3) towards front.

Installation:

Fig 4: Releasing Nuts And Removing Member Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

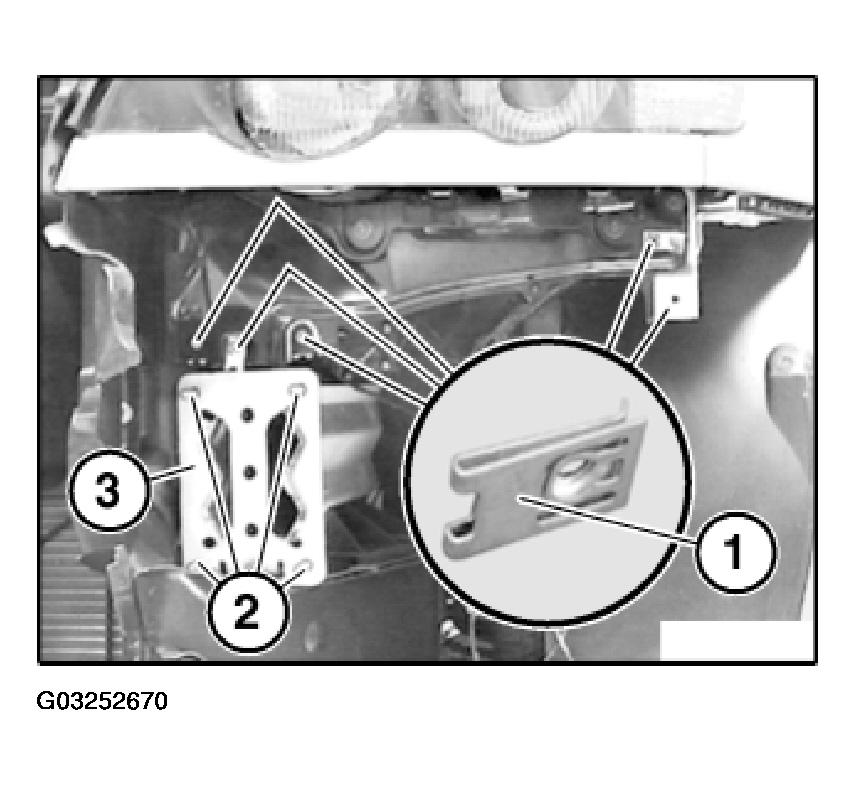

If necessary, replace faulty metal nuts (1).

Stud bolts (2) on member (3) must not be damaged.

Fig 5: Replacing Faulty Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty metal nuts (1) on member (6).
