51 47 491 Removing and installing/replacing rear underbody protection
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

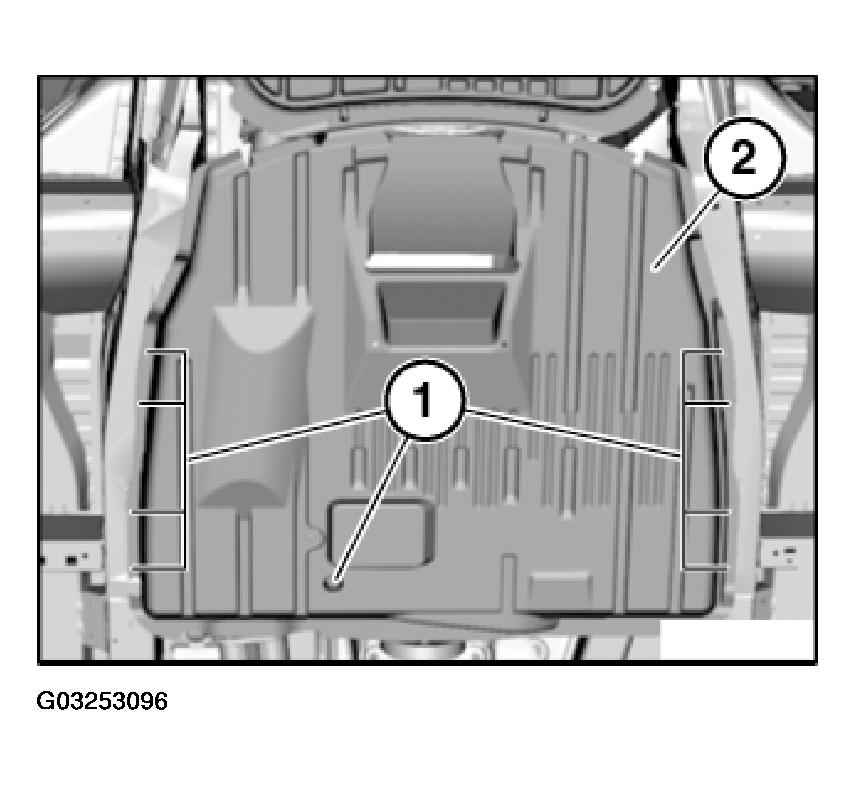

Illustration shows one example only. Differences in detail may be possible in the different engine variants.
Release screws (1).
Remove underbody protection (2).
Installation:
Ensure correct seating.
Center underbody protection (2) and tighten down all screws.
