51 47 161 Removing and installing/replacing right trunk wheel arch trim: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove inside window cavity cover strip for door window, rear right. See 51 37 261 Removing And Installing/Replacing Window Cavity Cover Strip For Door Window, Rear Left Or Right .

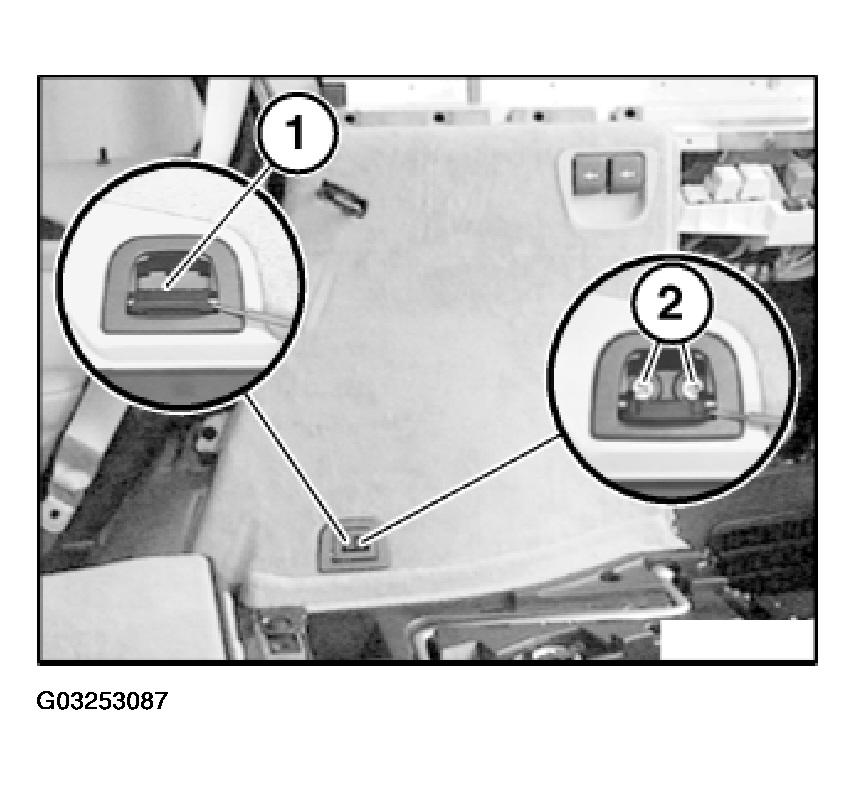

Lever out cover plate (1) in lashing eye.

Unfasten screws (2).

Fig 1: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

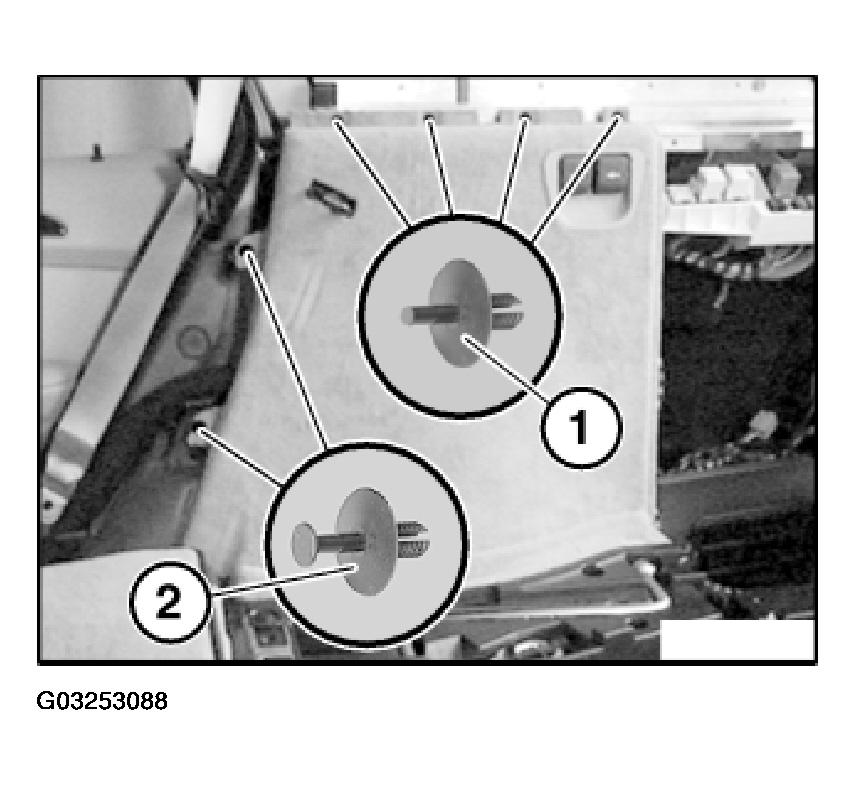

Release expansion rivets (1) and (2).

Fig 2: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

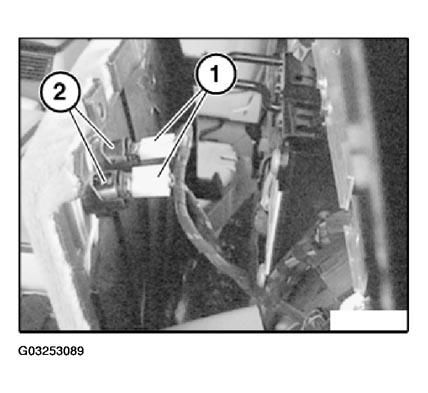

Disconnect plug connections (1) on both 12 V sockets (2).

Removing right luggage compartment wheel arch trim.

Installation:

Check catch of socket housing in luggage compartment wheel arch trim.

If necessary, replace 12 V sockets.

Fig 3: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
