51 47 000 Removing and installing/replacing the front (inside) left or right rocker panel strip: Notes
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Risk of breakage to connecting lug on B-pillar trim panel.
Do not raise entrance cover strip (1) over entire length simultaneously.
Do not raise entrance cover strip (1) over entire length simultaneously.

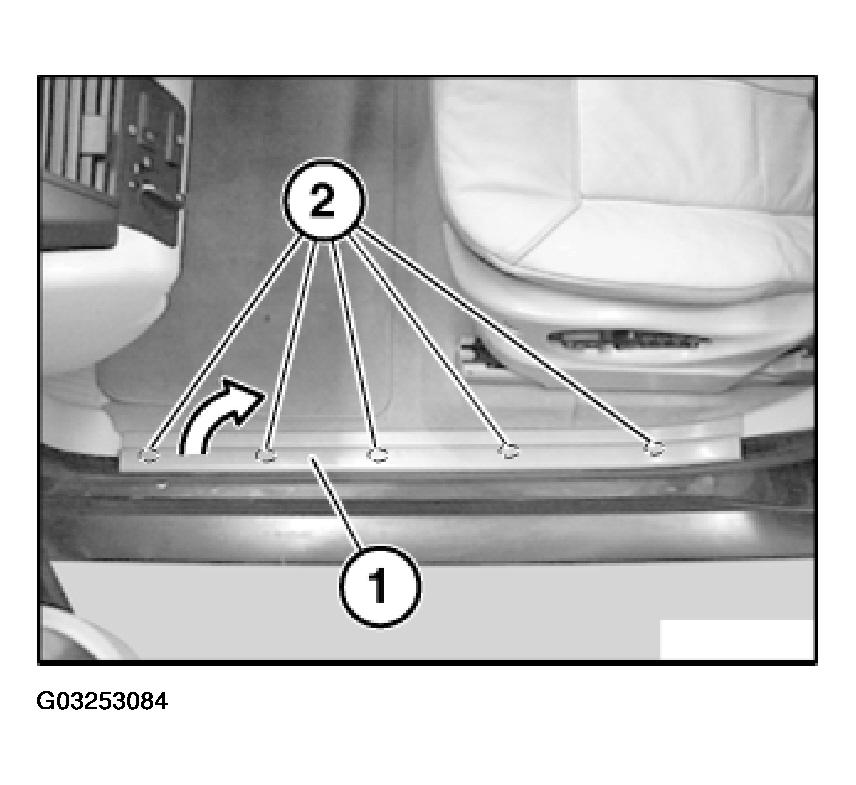

Raise entrance cover strip (1) from front to rear and detach with clips (2) from floor plate.
Detach entrance cover strip (1) from B-pillar trim panel at bottom towards front.
If necessary, lift clips off floor plate.
