Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Lever out badge with special tool 00 9 318 and remove towards top.

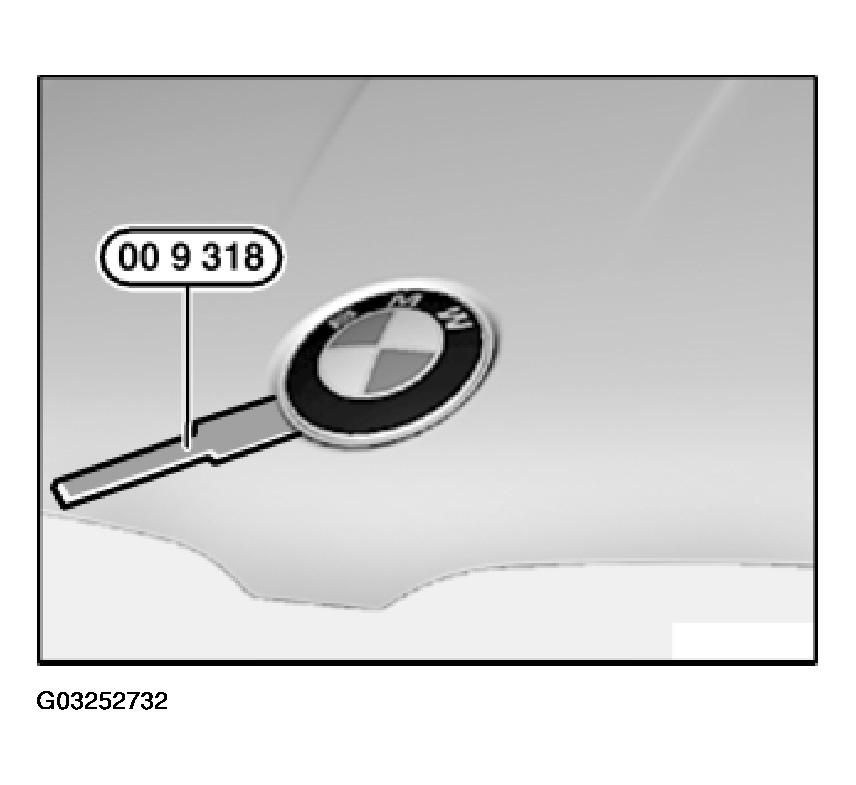

Fig 1: Levering Out Badge With Special Tool
G03252732Courtesy of BMW OF NORTH AMERICA, INC.

Following parts of badge (1) must not be damaged or missing:

  1. 2 Guide pins
  2. 3 Grommets

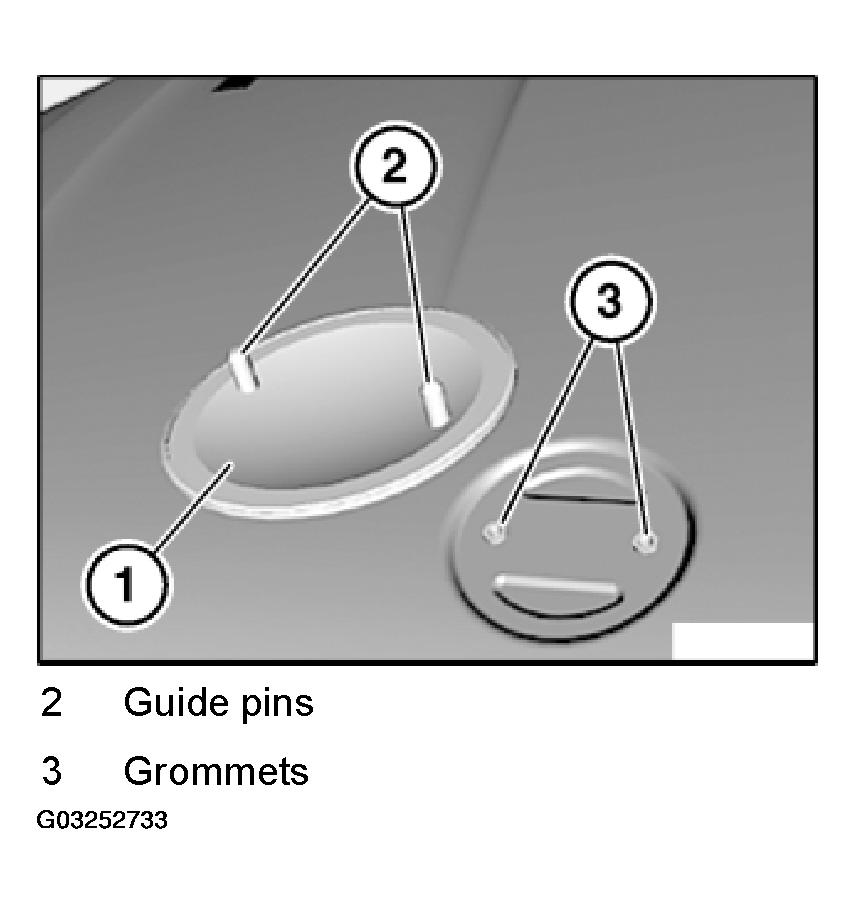

    Fig 2: Checking Guide Pins And Grommets
    G03252733Courtesy of BMW OF NORTH AMERICA, INC.
