35 40 503 Replacing adapter plate
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always replace disassembled adapter plate with a new part.
Retaining clips of old part can be damaged and adapter plate can slide out of steel plate.
This means there is a risk of accident!
Remove accelerator pedal module.

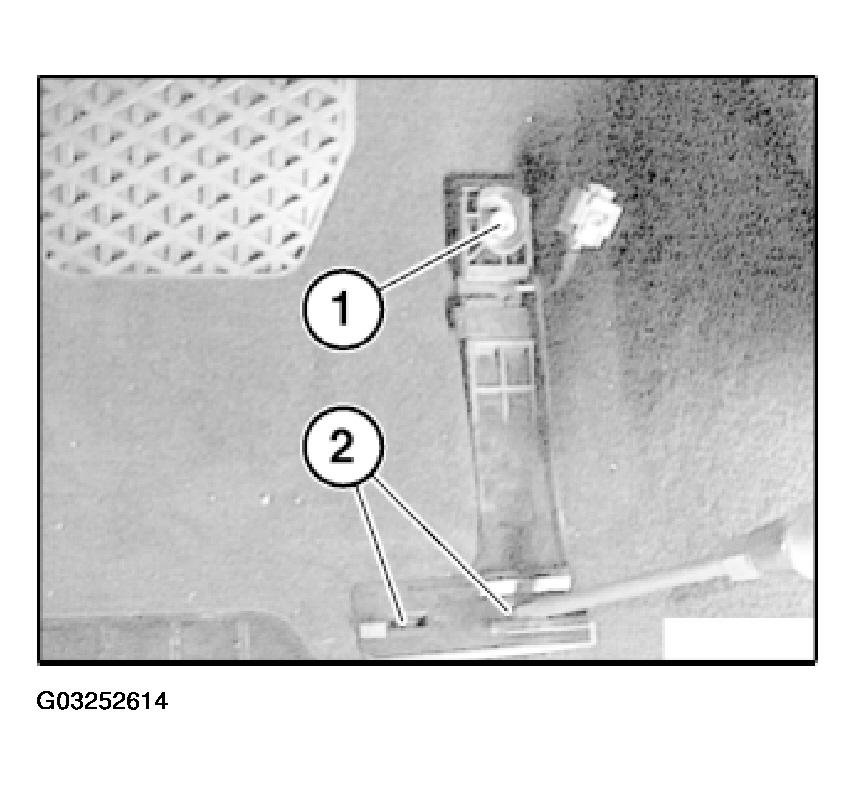

Release screw (1).
Installation:
Tightening torque, see 35 40 1AZ in PEDALS - TIGHTENING TORQUES - X5 .
Bend retaining clips (2 and 3) to one side and pull out adapter plate towards top.
