26 20 000 Removing and installing front propeller shaft: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

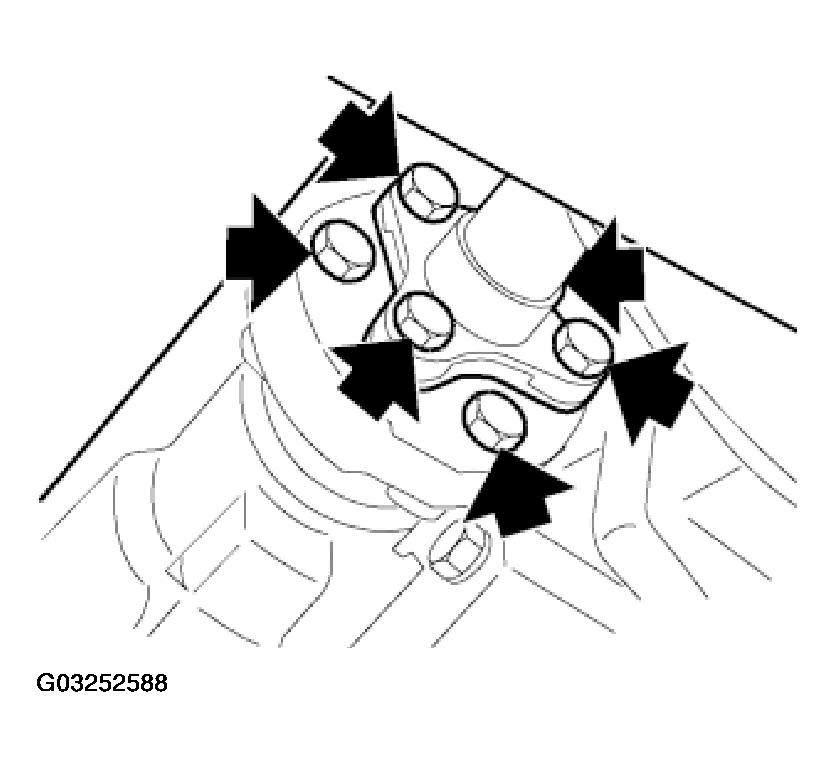

Replace self-locking nuts.

Tightening torque, see 26 11 7AZ/8AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .

Fig 1: Replacing Self-Locking Nuts

G03252588

Courtesy of BMW OF NORTH AMERICA, INC.

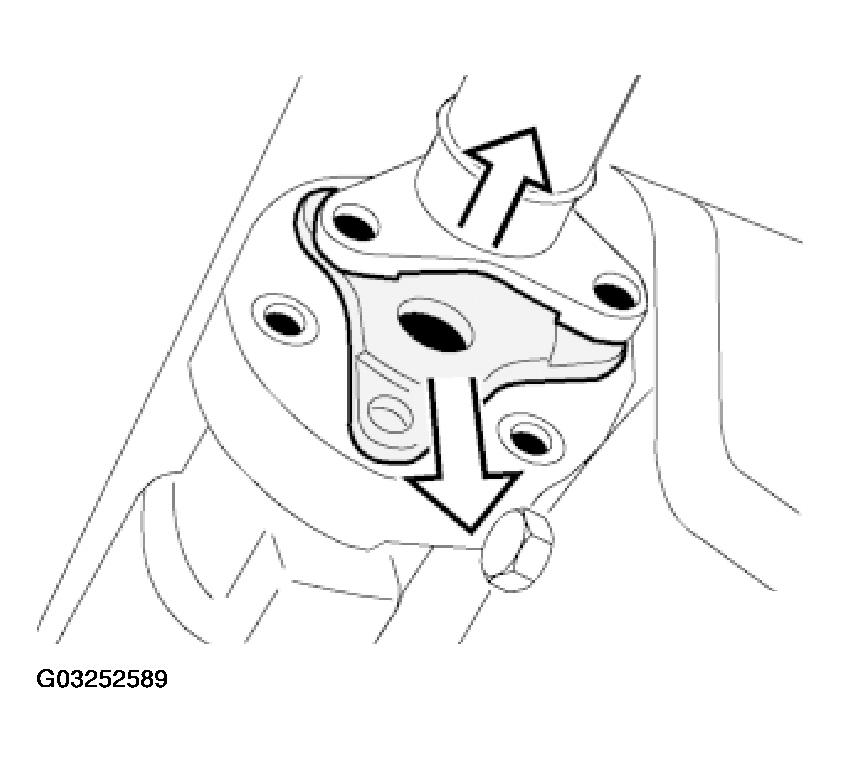

Push propeller shaft back.

Remove flexible disk with centering flange.

Fig 2: Removing Flexible Disk With Centering Flange

G03252589

Courtesy of BMW OF NORTH AMERICA, INC.

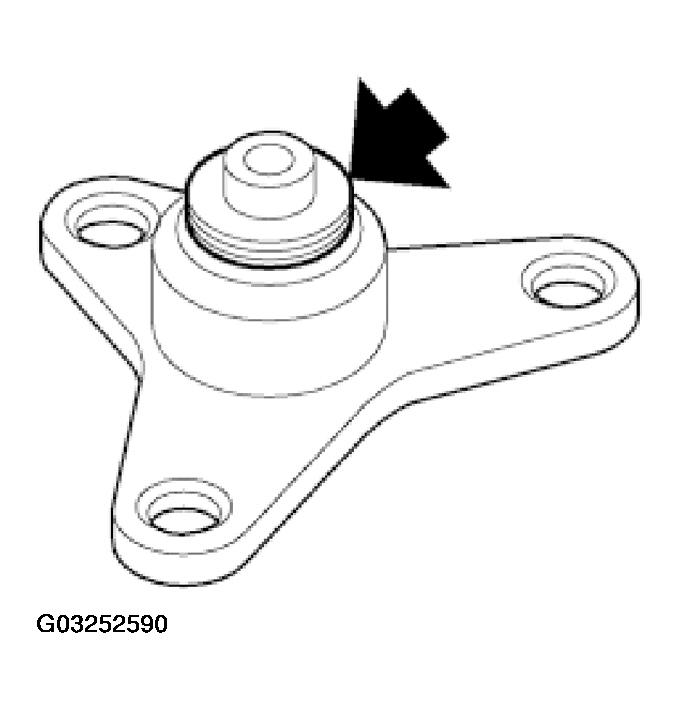

NOTE: Check sealing ring and replace if necessary.

Fig 3: Checking Sealing Ring

G03252590

Courtesy of BMW OF NORTH AMERICA, INC.

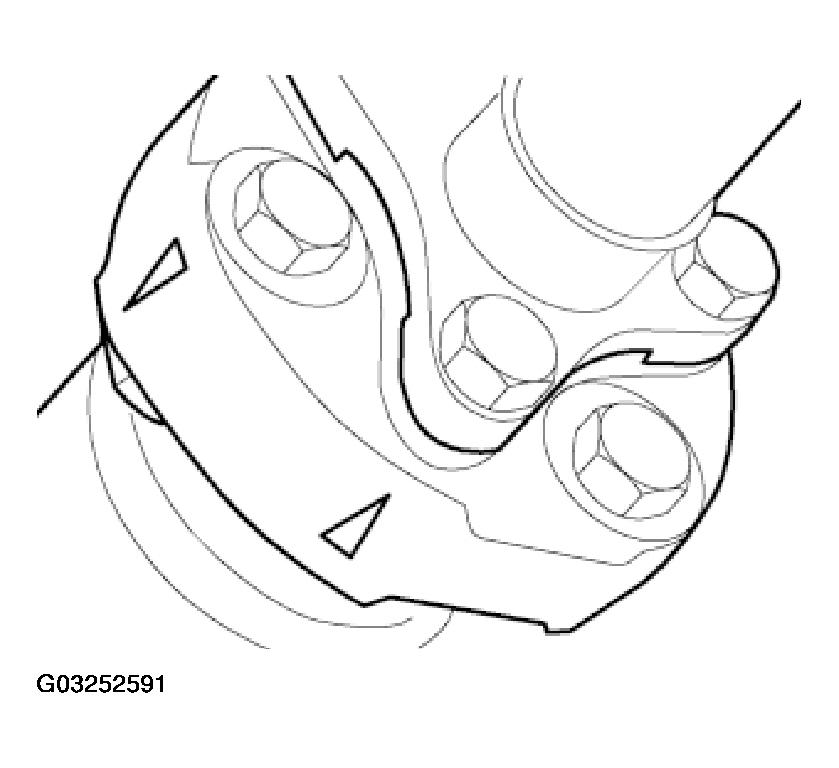

NOTE: Fit flexible disk must in such a way that arrows point to flange arms.

Fig 4: Fitting Flexible Disk Must In Such A Way That Arrows Point To Flange Arms

G03252591

Courtesy of BMW OF NORTH AMERICA, INC.

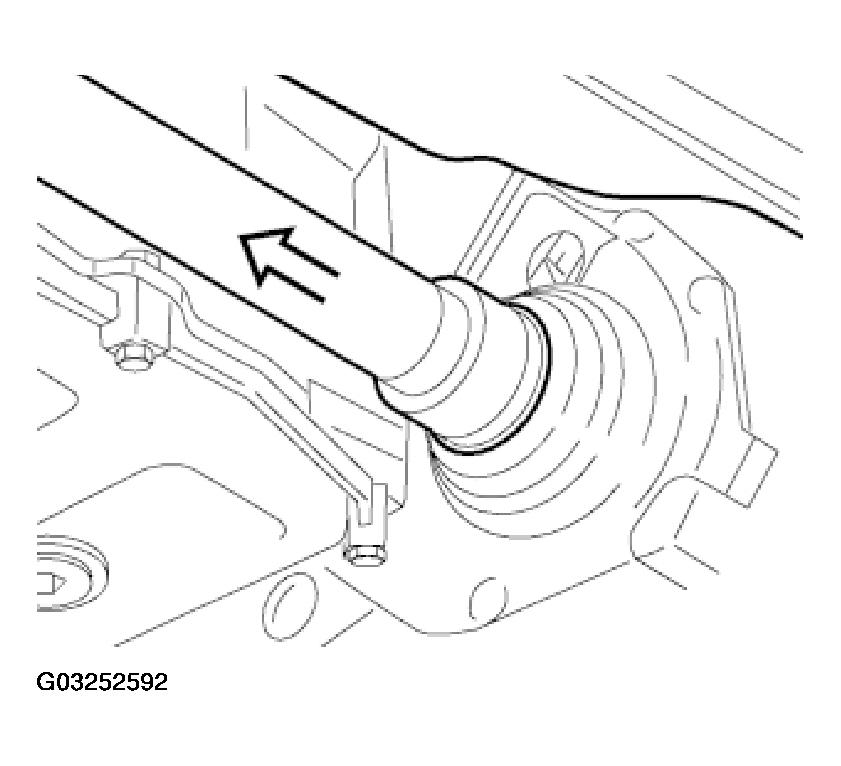

Detach propeller shaft from transfer box.

NOTE: Apply a thin coat of grease to splines.

Fig 5: Detaching Propeller Shaft From Transfer Box

G03252592

Courtesy of BMW OF NORTH AMERICA, INC.

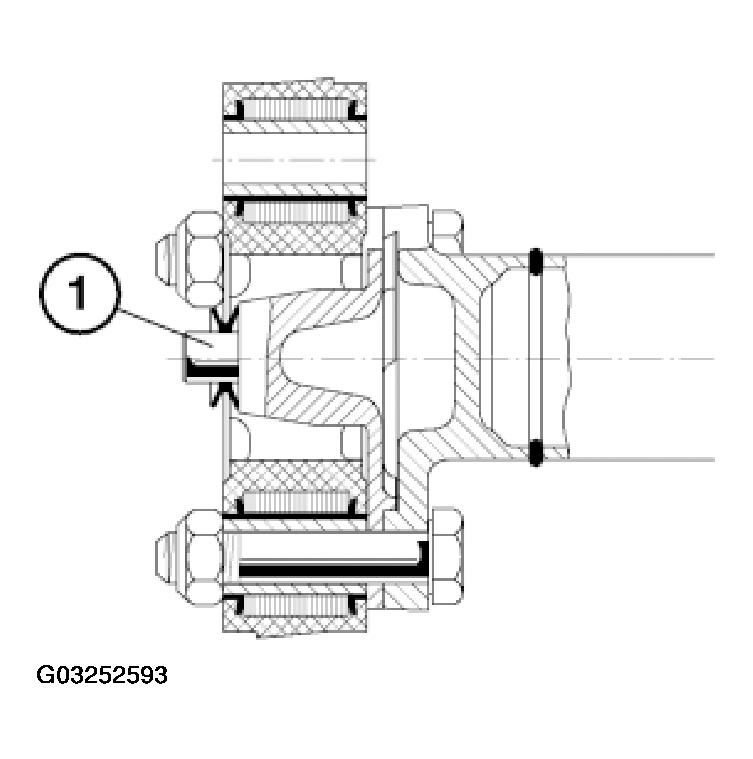

Check centering mount (1).

Replace a damaged centering mount.

Grease centering mount.

Fig 1: Checking Centering Mount

G03252593

Courtesy of BMW OF NORTH AMERICA, INC.
