Necessary Preliminary Task:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove propeller shaft. See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

Fill centering bore (1) completely with viscous grease.

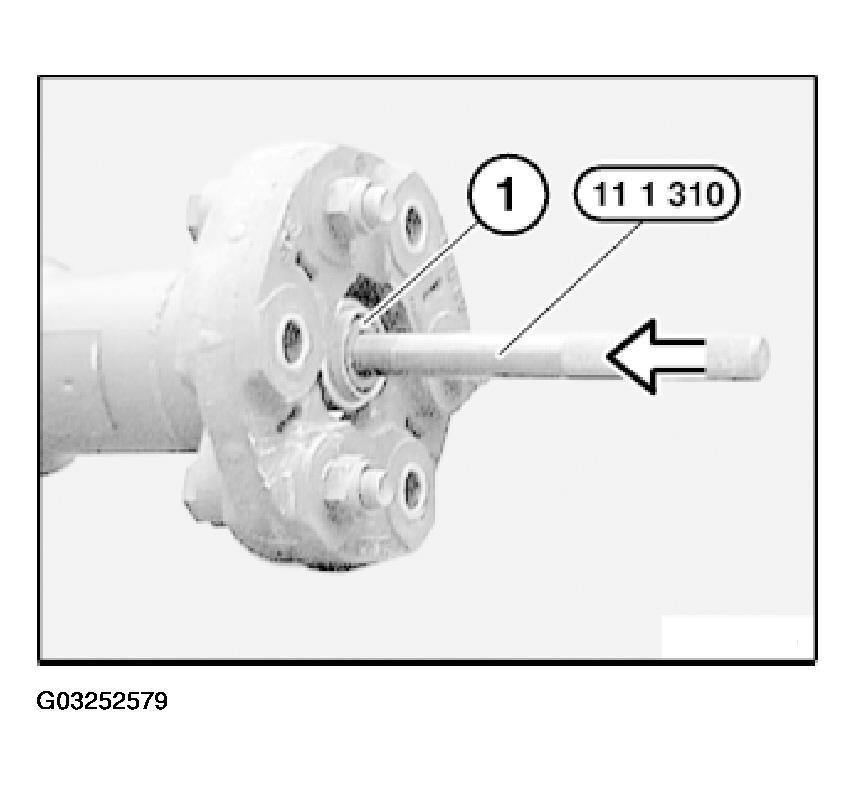

Drive special tool 11 1 310 with a plastic hammer into centering bore.

The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

Fig 1: Filling Centering Bore Completely With Viscous Grease

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove grease/water from mount bore.

Drive in centering (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Grease centering mount.

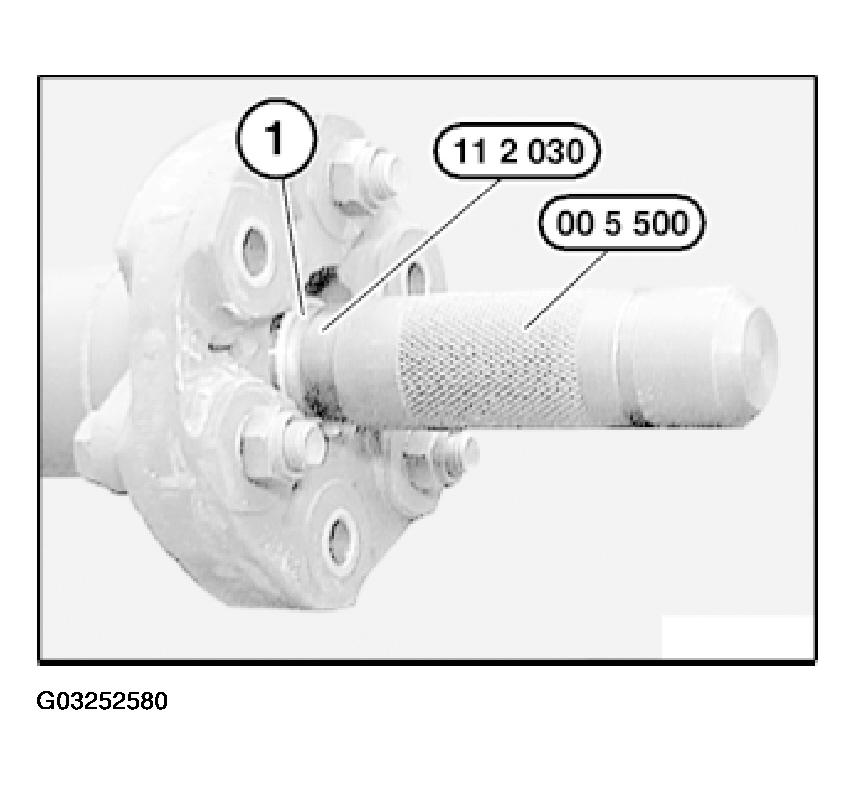

Fig 2: Driving In Centering With Special Tools 11 2 030 And 00 5 500 Into Propeller Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
