26 11 090 Removing and installing/replacing centering mount for propeller shaft: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

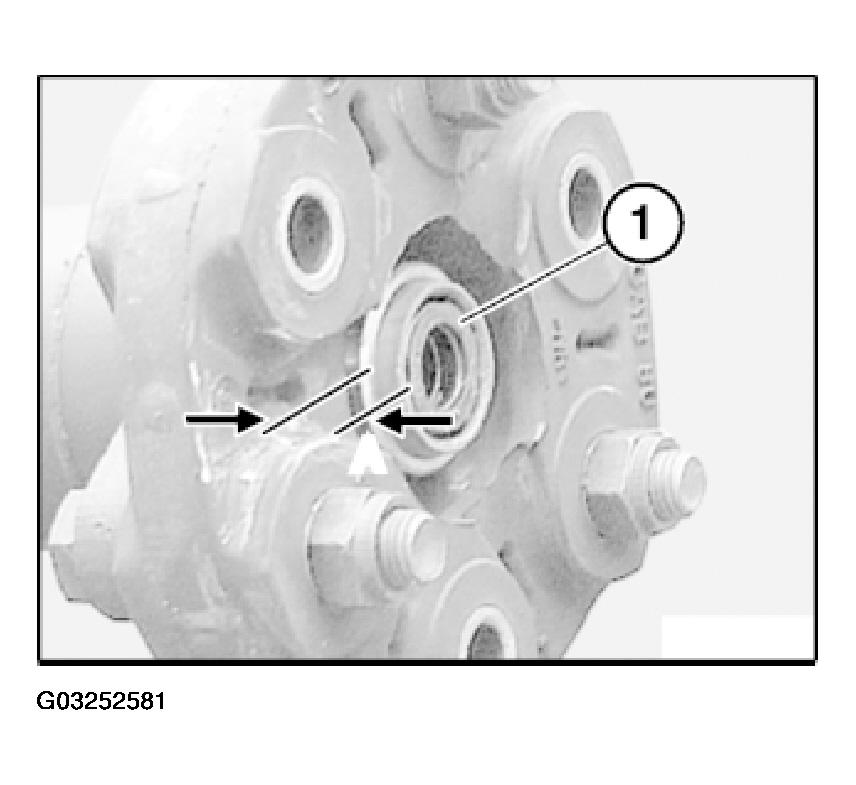

Observe protrusion A = 4+2 mm of centering (1).

Fig 1: Identifying Observe Protrusion
G03252581Courtesy of BMW OF NORTH AMERICA, INC.
