26 11 051 Replacing joint disk for propeller shaft: Installation:
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

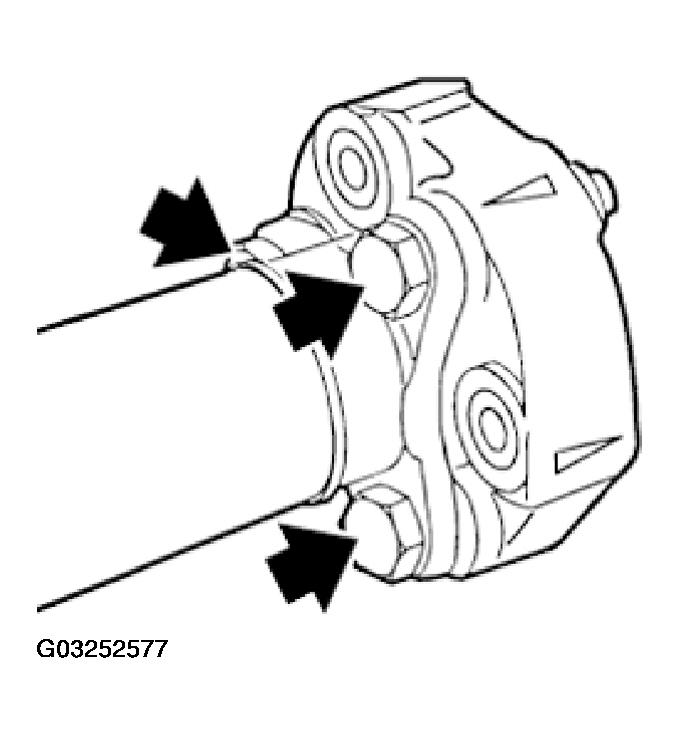

The screw connection may only be tightened by means of the nut.
Tightening torque, see 26 11 1AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .

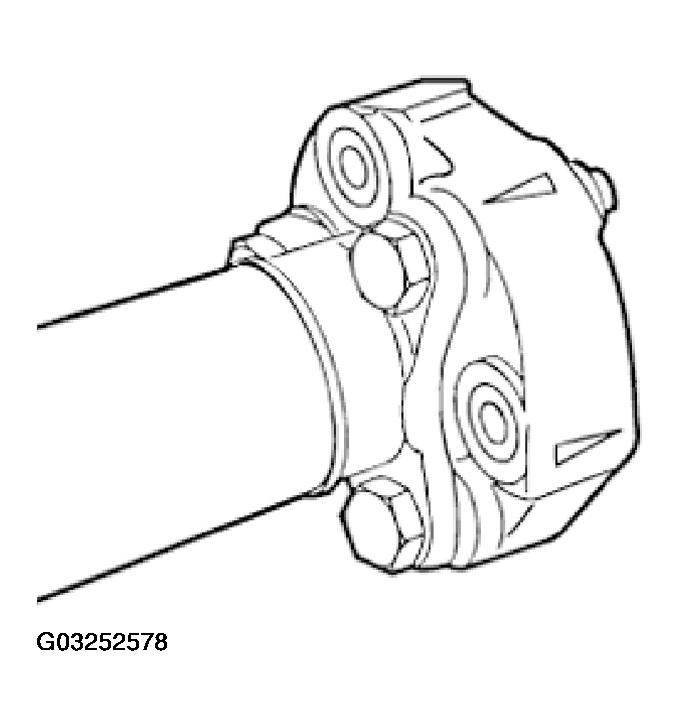

Joint disk must be fitted in such a way that arrows point to flange arms.
