26 12 001 Replacing complete propeller shaft center bearing (constant-velocity joint): Removal

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove propeller shaft. See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

IMPORTANT: Propeller shaft is balanced as a unit.

Mark front propeller shaft relative to rear propeller shaft with paint stick.

Marking by means of engraving which causes surface damage (e.g. center mark) is not permitted.

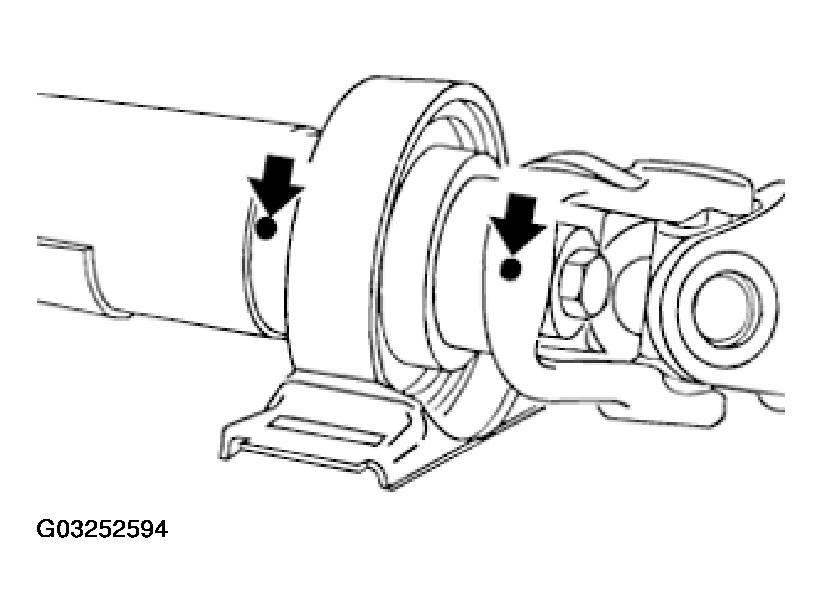

Fig 1: Marking Front Propeller Shaft Relative To Rear Propeller Shaft With Paint Stick

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Pull propeller shaft apart.
