26 12 001 Replacing complete propeller shaft center bearing (constant-velocity joint): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Thread free from grease.

When pushing shaft together, make sure that markings match up.

Insert bolt (1) with thread-locking liquid, refer to BMW Parts Service.

Tightening torque, see 26 11 5AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5

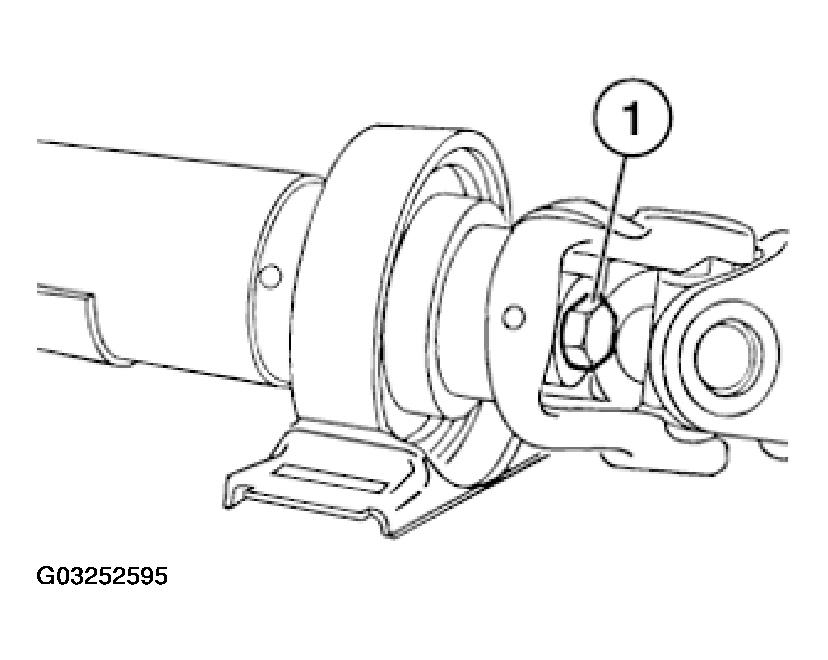

Fig 1: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shim and dust gaiter.

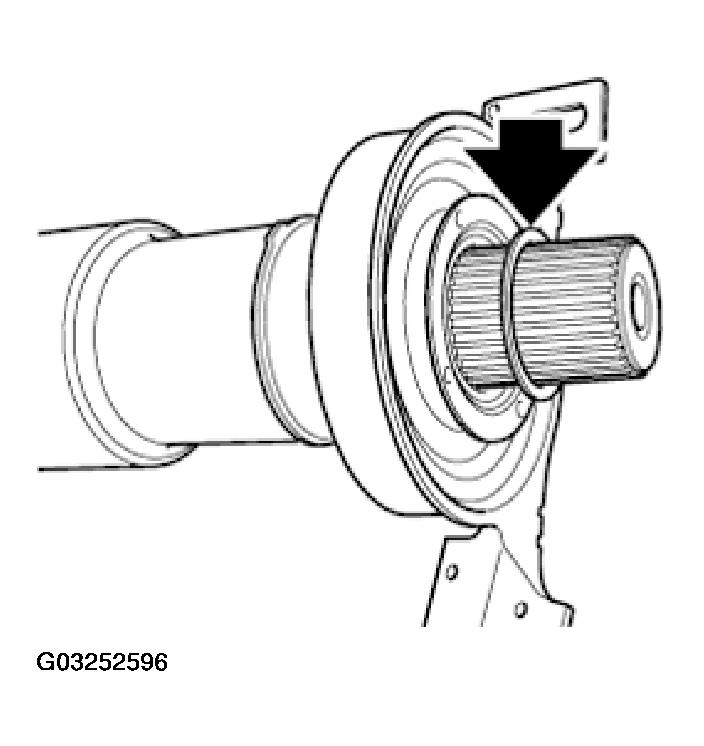

Fig 2: Removing Shim And Dust Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off center bearing with special tool 00 7 500 / 33 1 307 and commercially available puller.

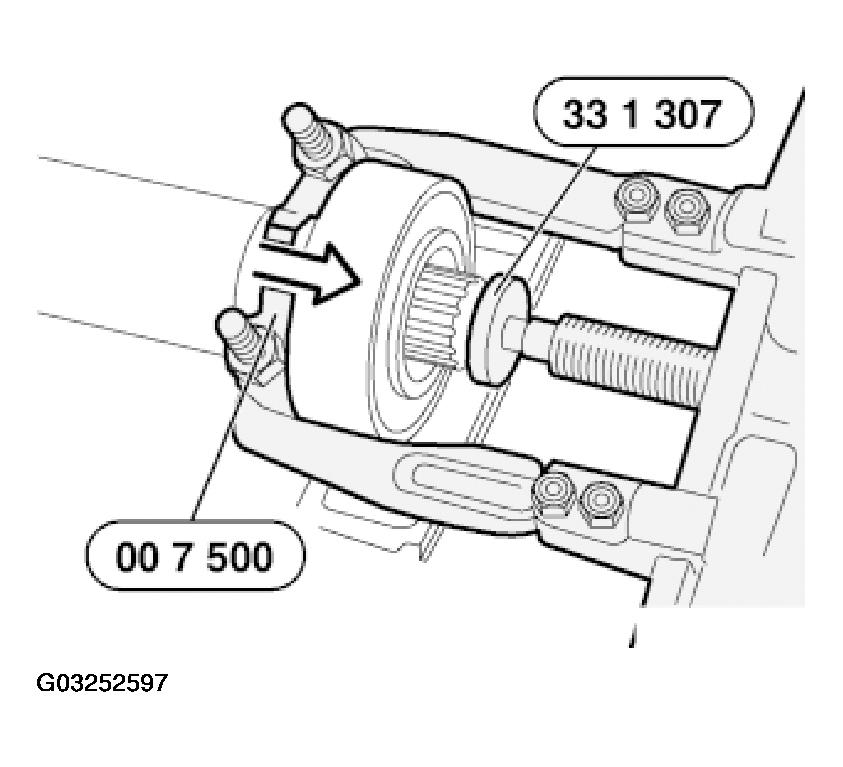

Fig 3: Pulling Off Center Bearing With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Drive new center bearing firmly home with special tool 24 0 090 or 24 1 050.

NOTE: Bearing inside diameter 30 mm, use special tool 24 0 090.
Bearing inside diameter 35 mm, use special tool 24 1 050.

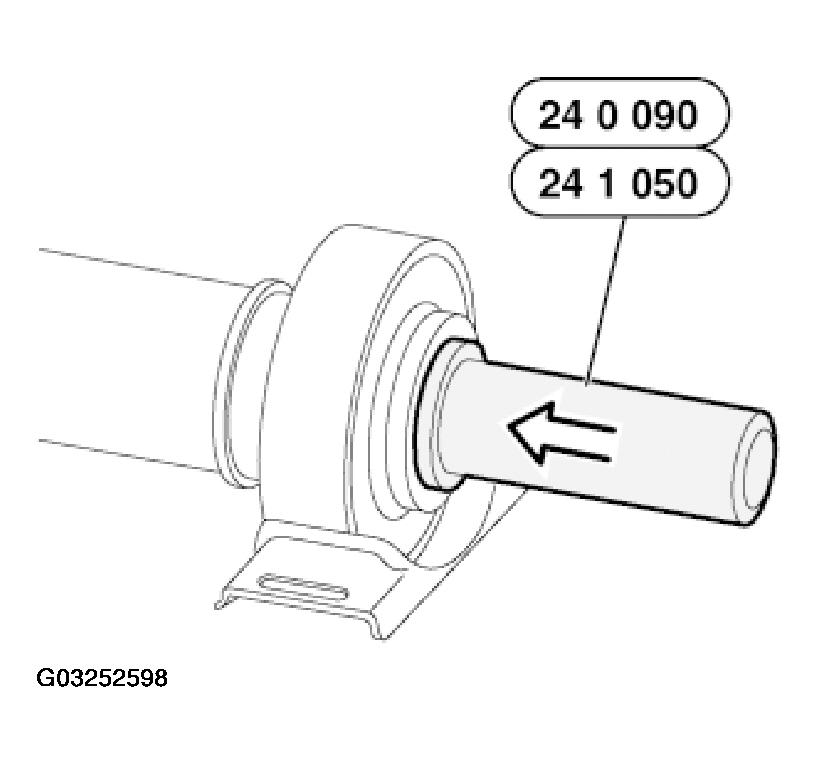

Fig 4: Driving New Center Bearing Firmly Home With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
