Arrangement Of Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S, GA6HP26Z

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

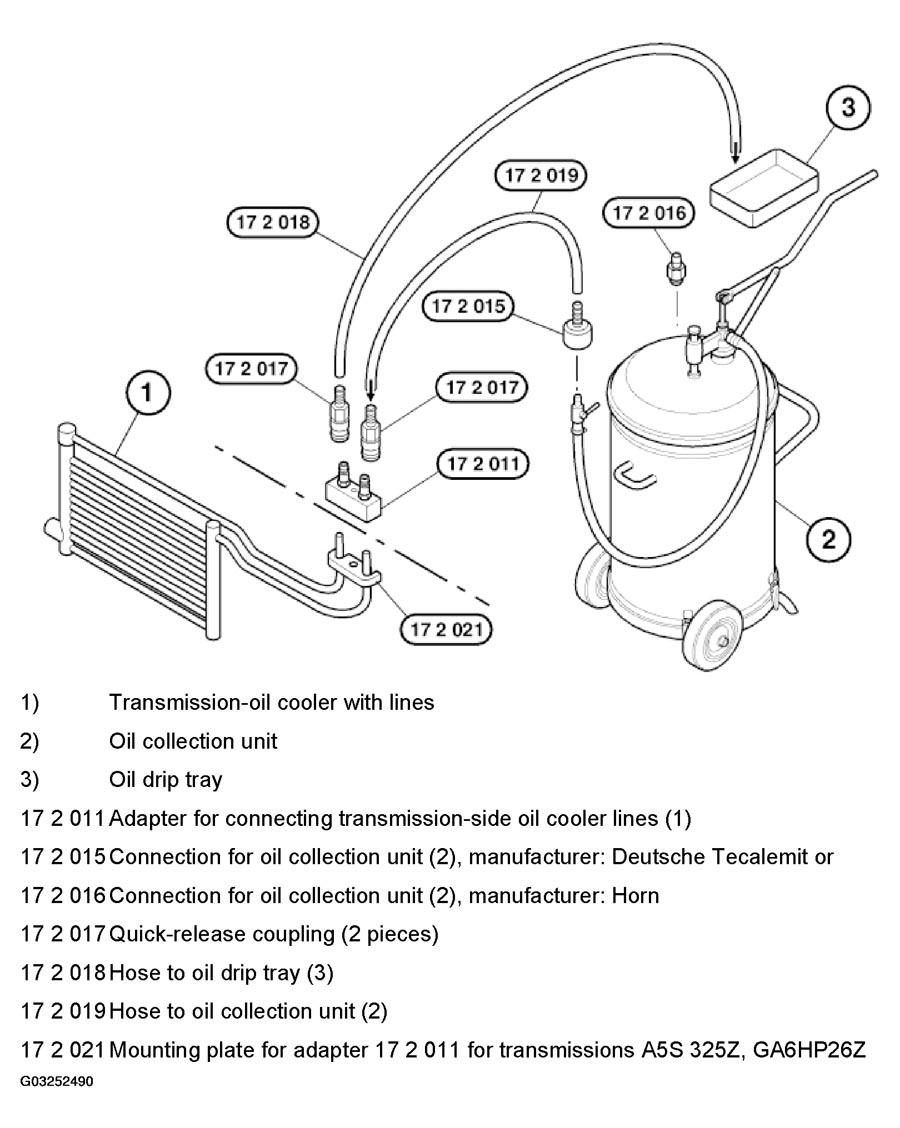

Fig 1: Identifying Arrangement Of Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S, Ga6Hp26Z
G03252490Courtesy of BMW OF NORTH AMERICA, INC.
