Arrangement Of Flushing Device For Transmission A4S 440Z

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

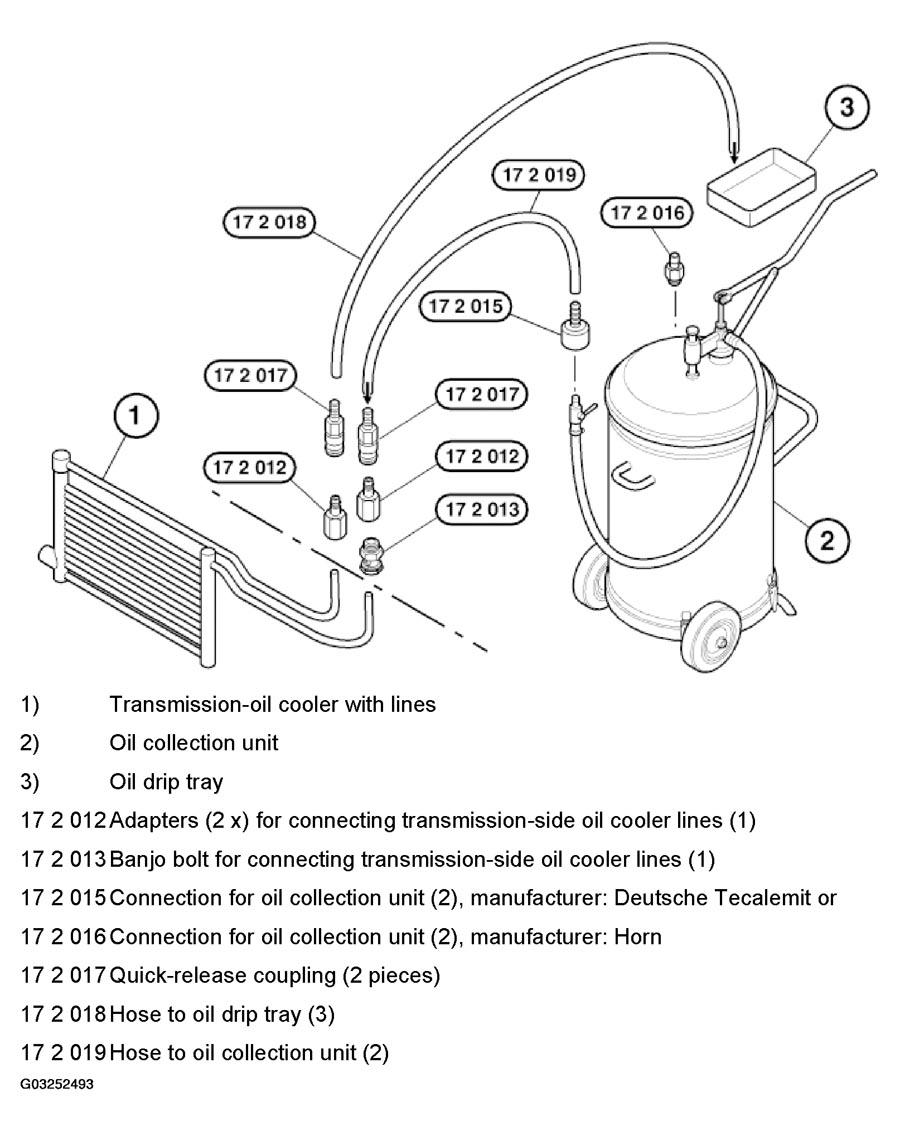

Fig 1: Identifying Arrangement Of Flushing Device For Transmission A4S 440Z
G03252493Courtesy of BMW OF NORTH AMERICA, INC.
