17 22 010 Removing and installing/replacing heat exchanger for automatic transmission (M62/M54/M57): Notes
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Drain off and top up coolant.
Recycling
Transmission fluid emerges when oil lines are detached from heat exchanger.
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations.
CAUTION:
Check fluid level in automatic transmission, refer to OPERATING FLUIDS - AUTOMATIC TRANSMISSION
.

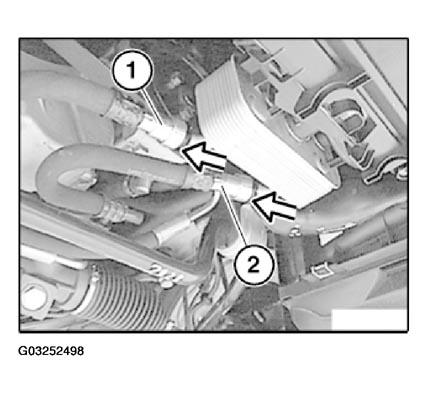

Press lines (1/2) in direction of heat exchanger and pull locking ring towards rear.
Keep locking ring pressed and detach lines (1/2) from heat exchanger.
NOTE:
Illustration shows heat exchanger from E46.
Pull out lock (1).
Pull heat exchanger (2) out of mounting plate on radiator.
