17 11 530 Removing and installing cassette (condenser for air conditioner)

Remove radiator. See 17 11 000 Removing and installing radiator (M62, M54 and M57)  .

Draw off refrigerant from A/C system. See 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM .

Release screw (1).

Release screws (2).

Disconnect A/C system lines from condenser.

Installation:

Replace sealing rings.

Evacuate and fill A/C system.

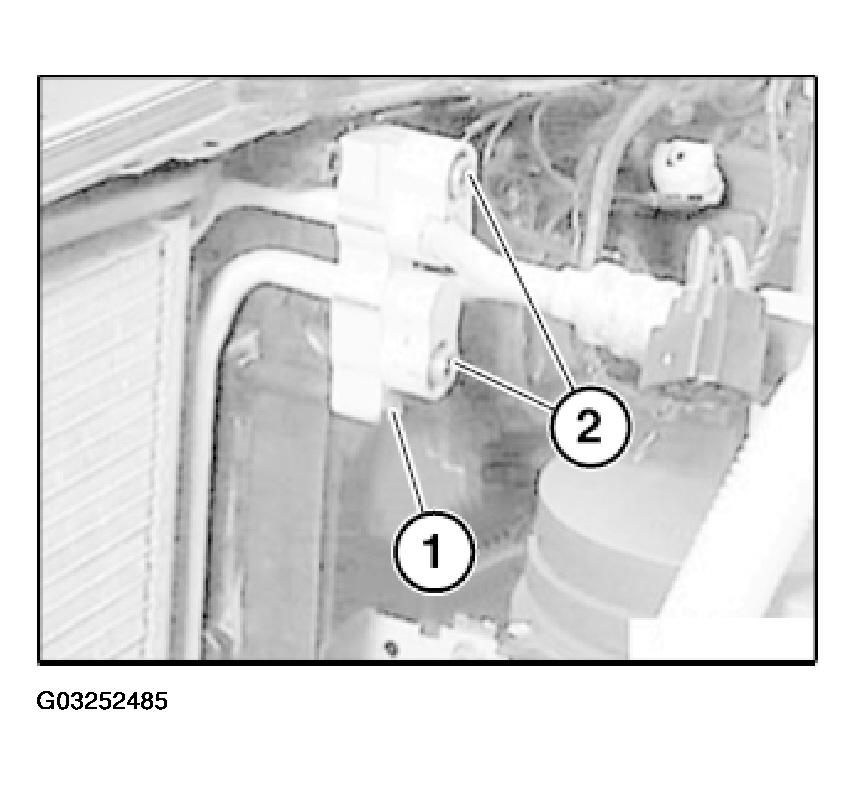

Fig 1: Disconnecting A/C System Lines From Condenser

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling

Hydraulic fluid emerges when hydraulic lines are disconnected. Catch and dispose of emerging hydraulic fluid. Observe country-specific waste-disposal regulations.

Disconnect fast-release couplings on hydraulic lines.

Installation:

Bleed power steering.

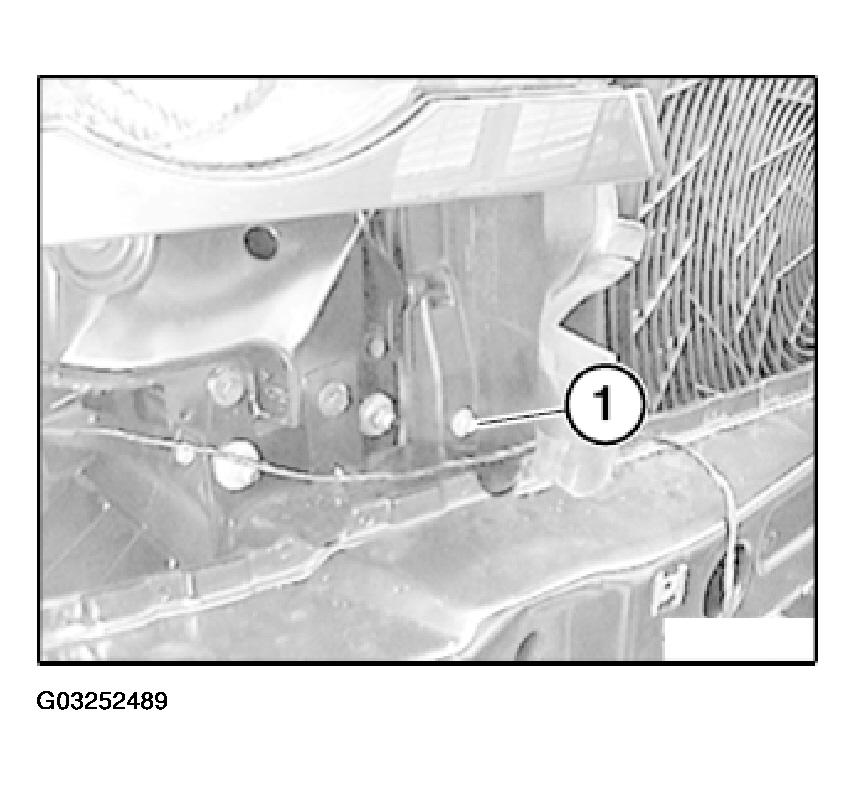

Fig 2: Removing A/C Condenser

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove A/C condenser.

Remove cooler for steering hydraulics.

Installation:

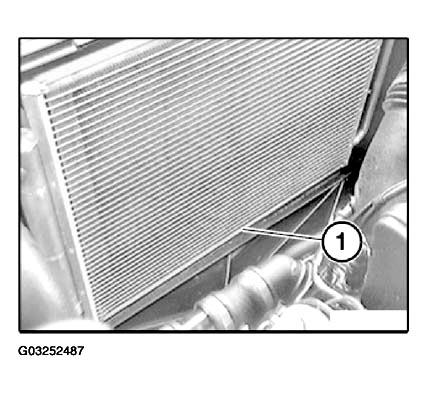

Check sealing strip (1) between condenser and cooler for steering hydraulics for correct seating.

Fig 3: Checking Sealing Strip Between Condenser And Cooler For Steering Hydraulics For Correct Seating

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

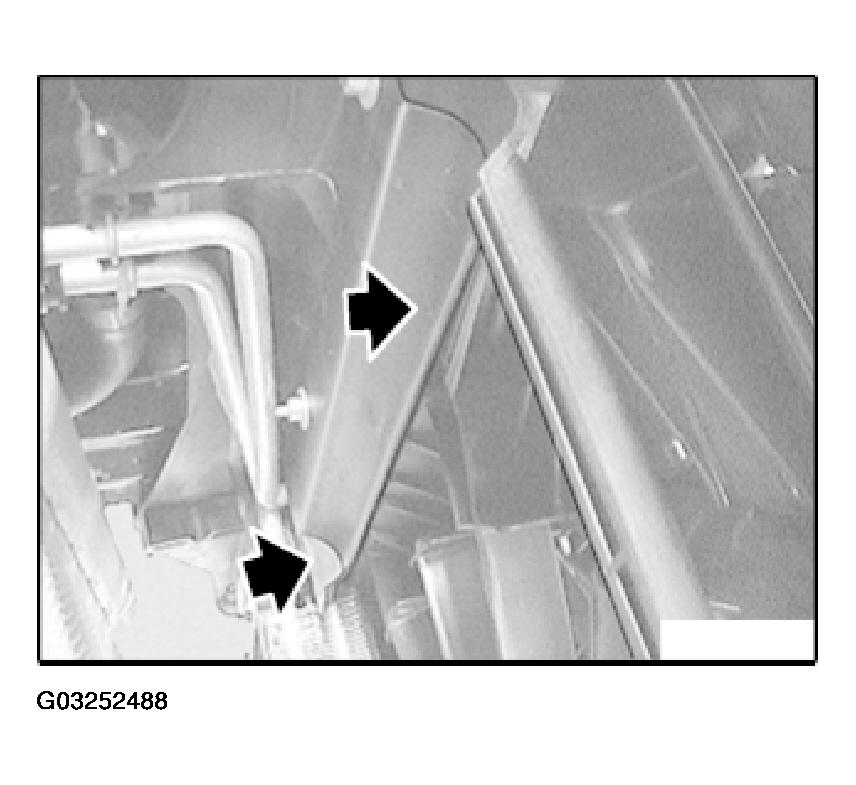

Insert condenser into semicircular holders on left and right.

Fig 4: Inserting Condenser Into Semicircular Holders On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front bumper. Release screws (1) on left and right. Remove cassette towards top.

Installation:

Install cassette on left and right into holders.

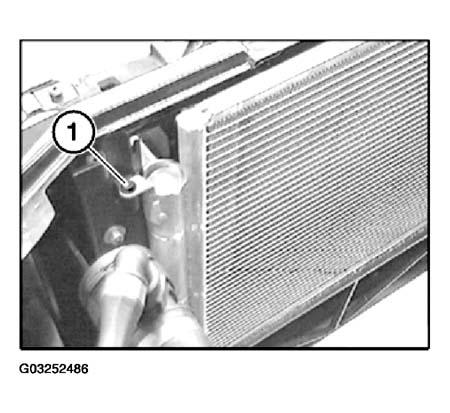

Fig 5: Removing Cassette

Courtesy of BMW OF NORTH AMERICA, INC.
