17 11 370 Removing and installing/replacing cooling loop for power steering: Recycling:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Draw off power steering fluid from supply tank - do not reuse fluid.

Observe country-specific waste-disposal regulations.

Disconnect quick-release couplings on hydraulic lines. Remove radiator.

Remove cooling coil.

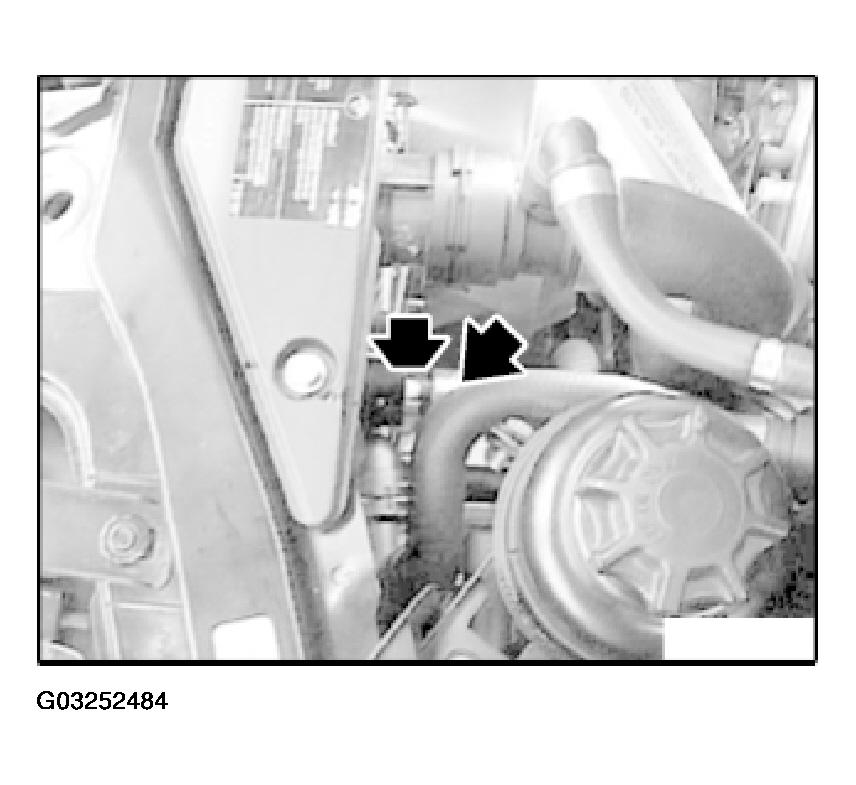

Fig 1: Removing Cooling Coil

Courtesy of BMW OF NORTH AMERICA, INC.
