17 11 100 Removing and installing/replacing coolant expansion tank (M62): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

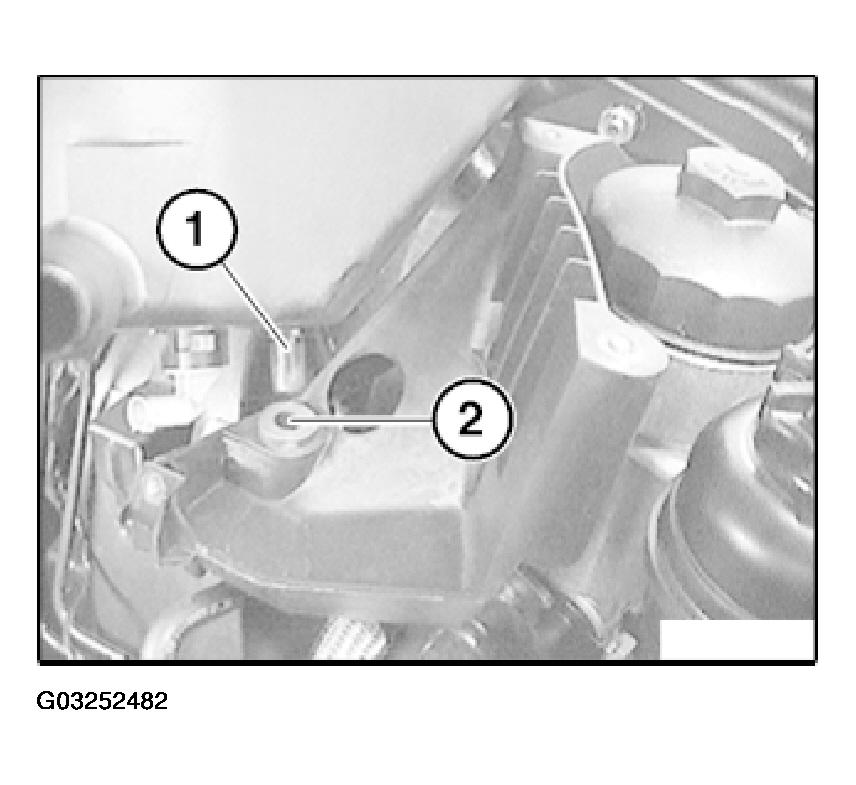

When installing coolant expansion tank: Insert locating pin (1) into locating bore (2).

Fig 1: Installing Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tank marking indicates coolant level at approx. 20°C.

Use only BMW coolant.

Slowly top up coolant expansion tank with coolant until maximum fill level is reached (float needle at height of top edge on expansion tank).

Vent cooling system and check for leaks, refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (M62) .

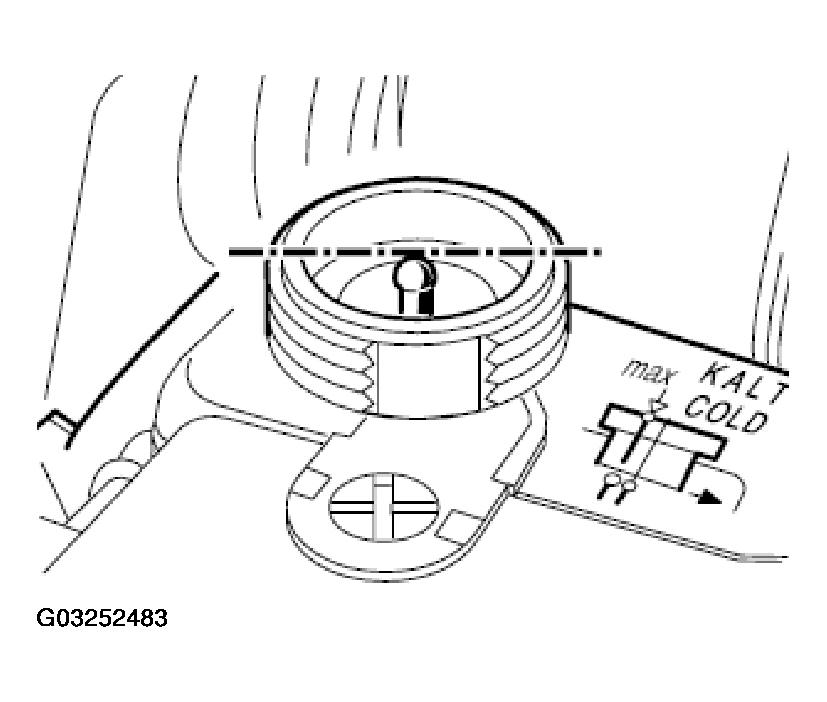

Fig 2: Identifying Tank Mounting Mark

Courtesy of BMW OF NORTH AMERICA, INC.
