M62, M54

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove fan impeller with fan clutch.

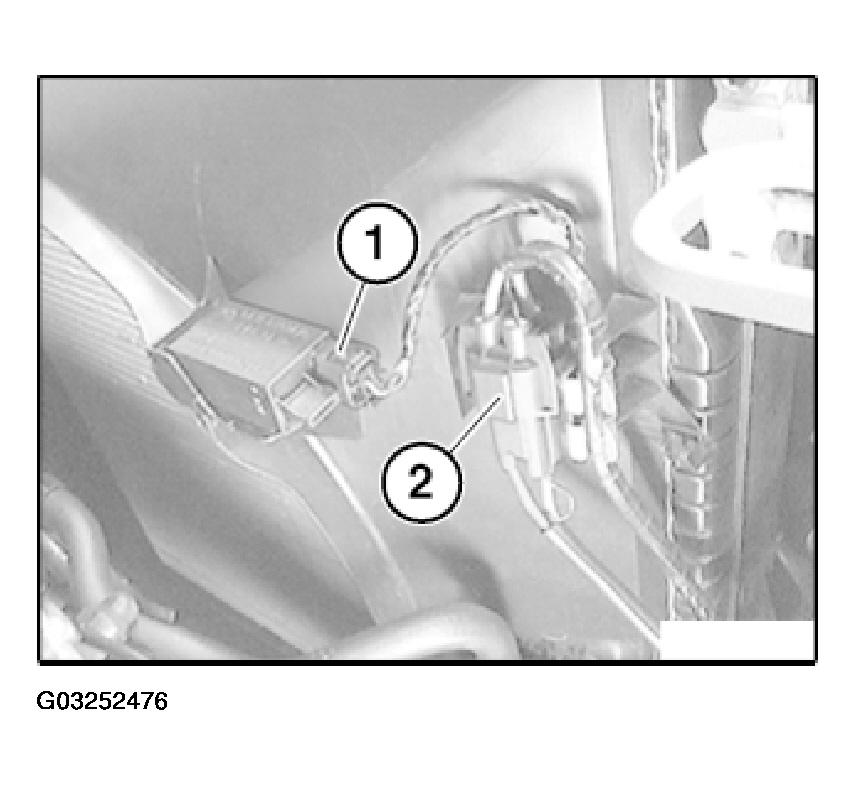

Detach plug (1) from AUC sensor.

Unlock plug connection (2) and unclip cable.

Fig 1: Detaching Plug From Auc Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

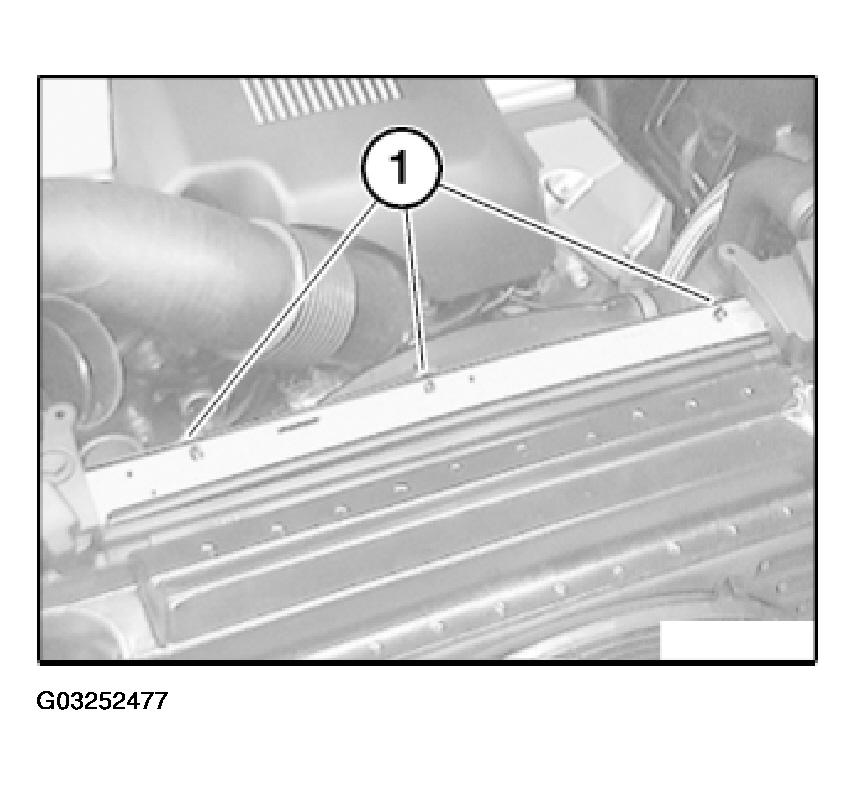

Lever out expansion rivets (1).

Fig 2: Removing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

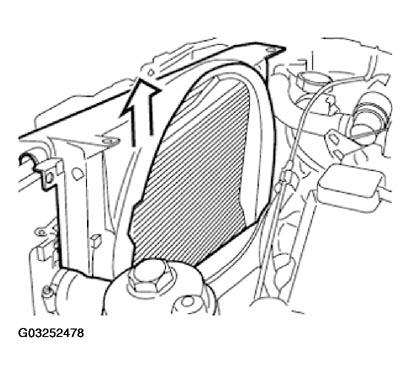

Remove fan cowl towards top.

Fig 3: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

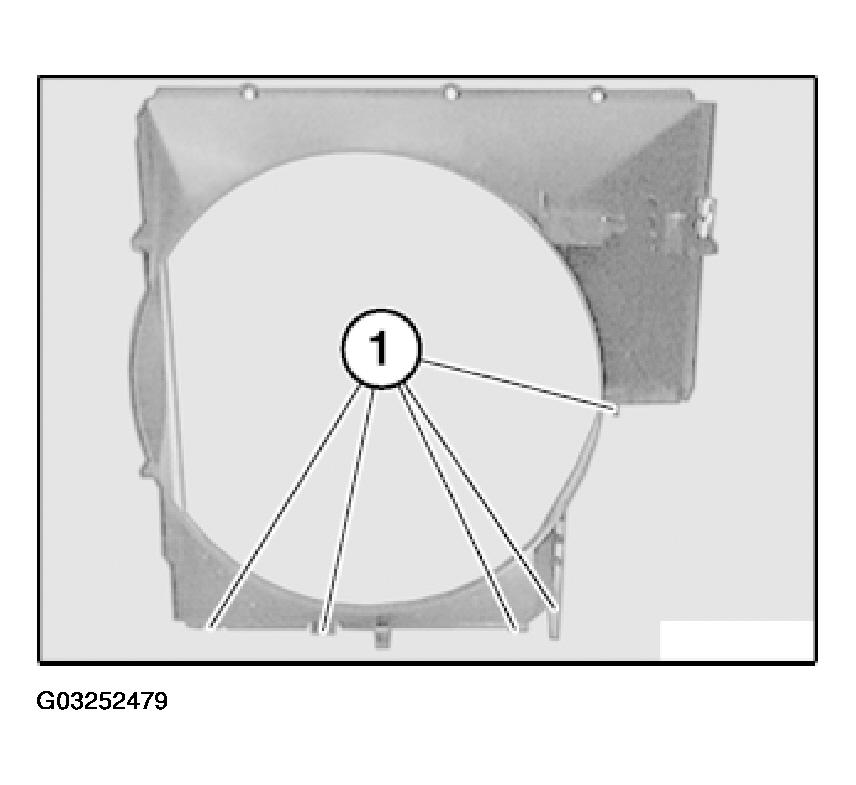

Attach lugs (1) to holders on radiator.

Fig 4: Attaching Lugs To Holders On Radiator

Courtesy of BMW OF NORTH AMERICA, INC.
