M62 Only:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

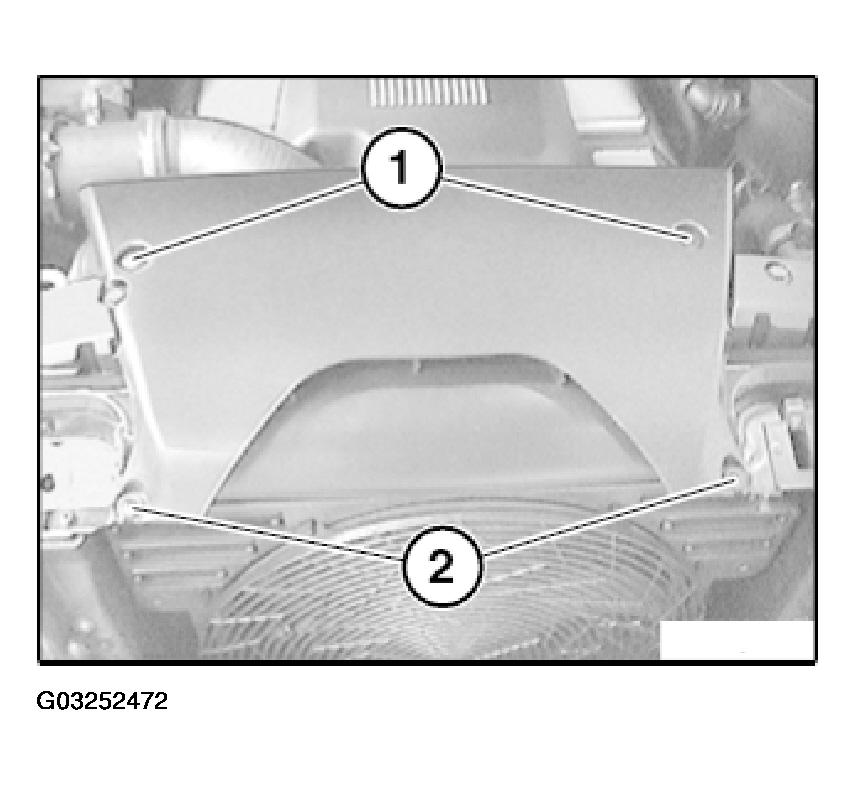

Lever out expansion rivets (1). Release screws (2). Tightening torque, see 13 71 3AZ in FUEL SYSTEM - TIGHTENING TORQUES .

Fig 1: Removing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

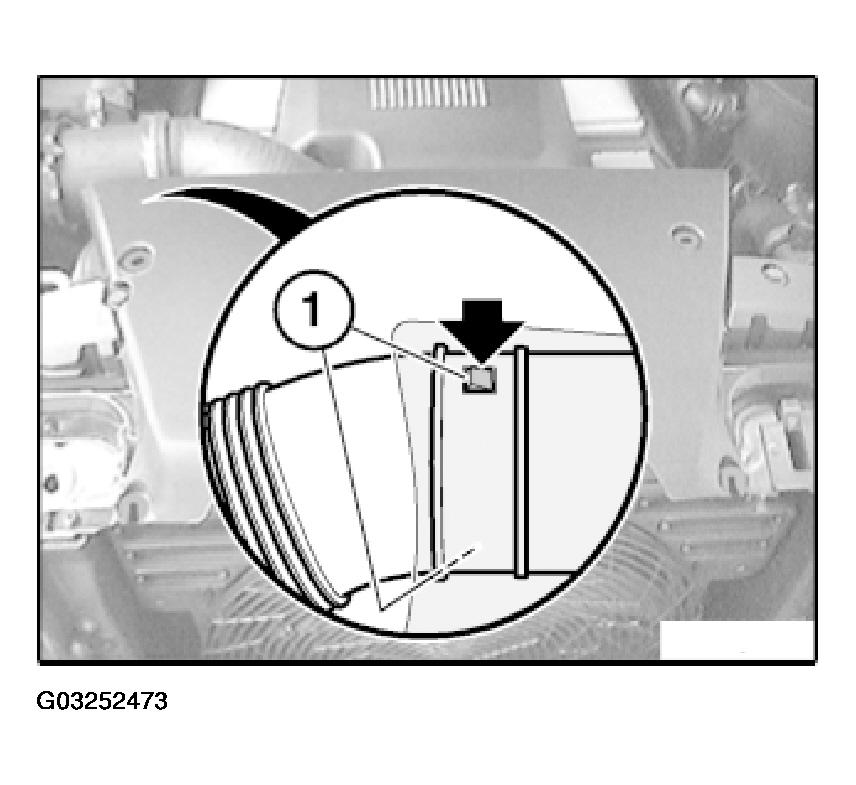

NOTE: Intake pipe is secured in intake hood by means of two retaining lugs (1).
Retaining lugs are located under intake hood.

Press in retaining lugs (1) and remove intake hood.

Fig 2: Removing Intake Hood By Pressing Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

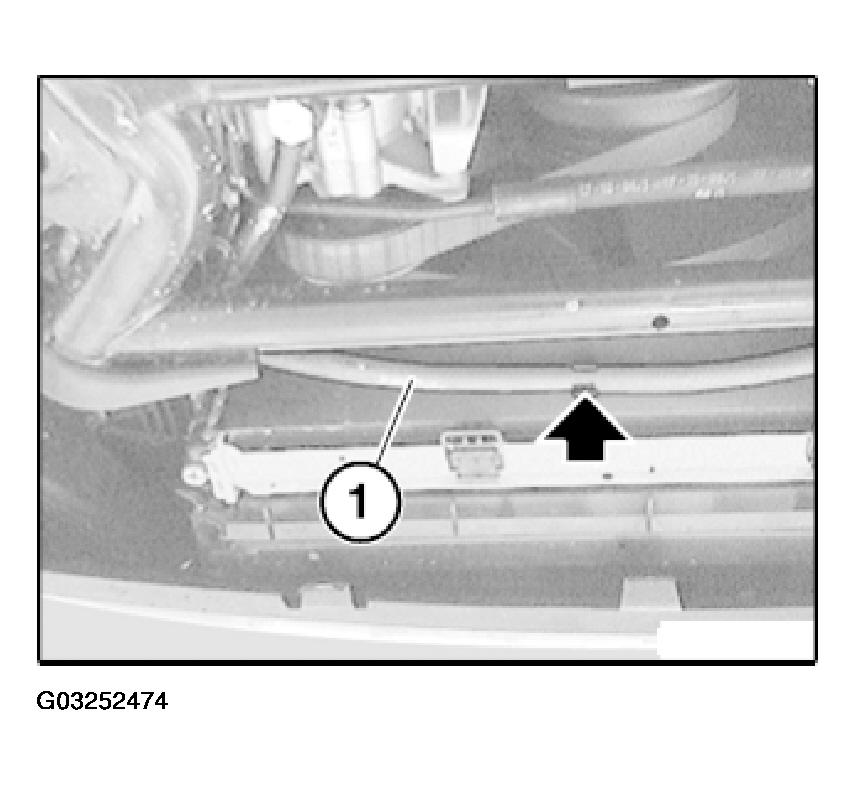

Unclip water hose (1) from holder on fan cowl.

NOTE: For purposes of clarity, this work step is shown on the car from below. Underbody paneling does not have to be removed. Water hose (1) can be pulled out of holder from above.

Fig 3: Locating Water Hose

Courtesy of BMW OF NORTH AMERICA, INC.
