M62, M54 and M57 With Automatic Transmission:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

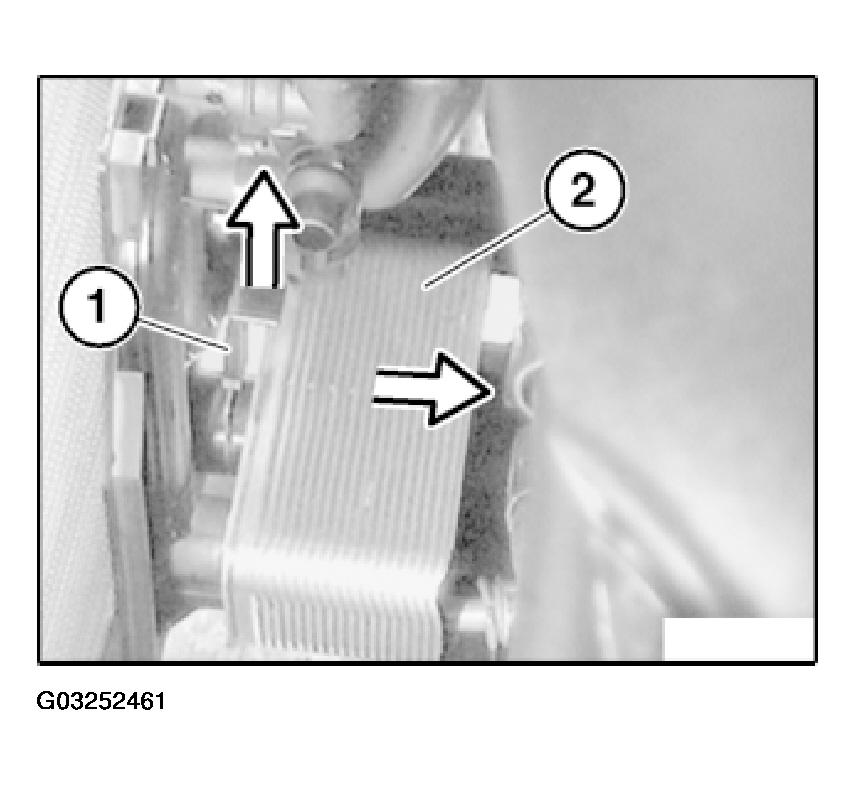

Pull lock (1) upwards.

Remove heat exchanger (2) for automatic transmission fluid from mounting plate on radiator.

NOTE: Oil lines remain connected to heat exchanger.

Installation:

Press lock (1) downwards
Push on heat exchanger

The lock must snap audibly into place when the heat exchanger is forced on.

Fig 1: Removing Heat Exchanger Of Automatic Transmission Fluid From Mounting Plate On Radiator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

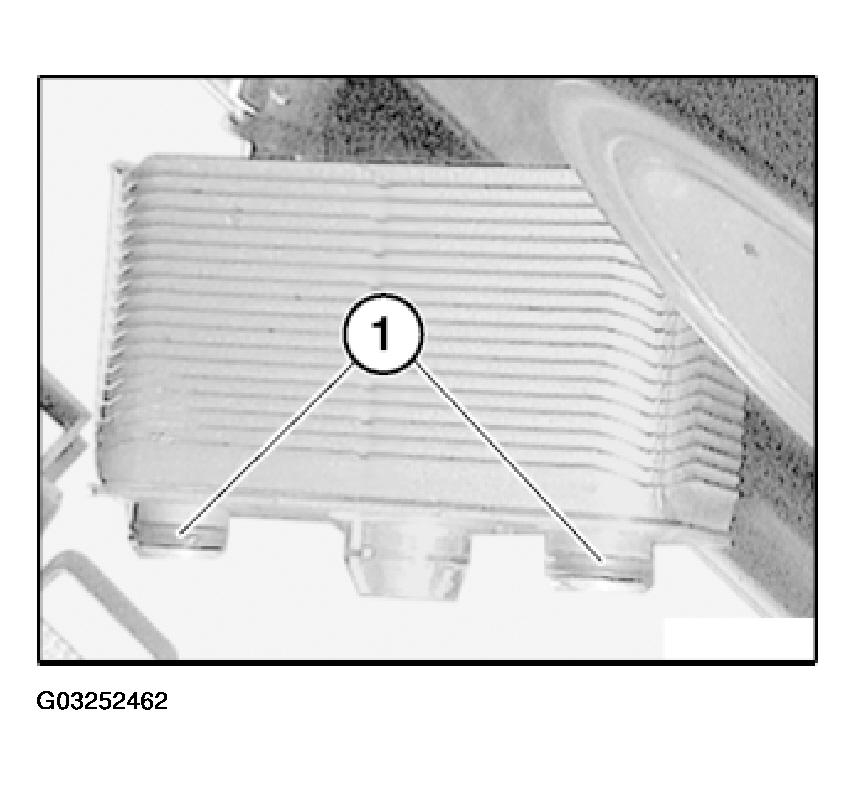

Replace sealing rings (1) on heat exchanger.

Fig 2: Removing Sealing Rings On Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.
