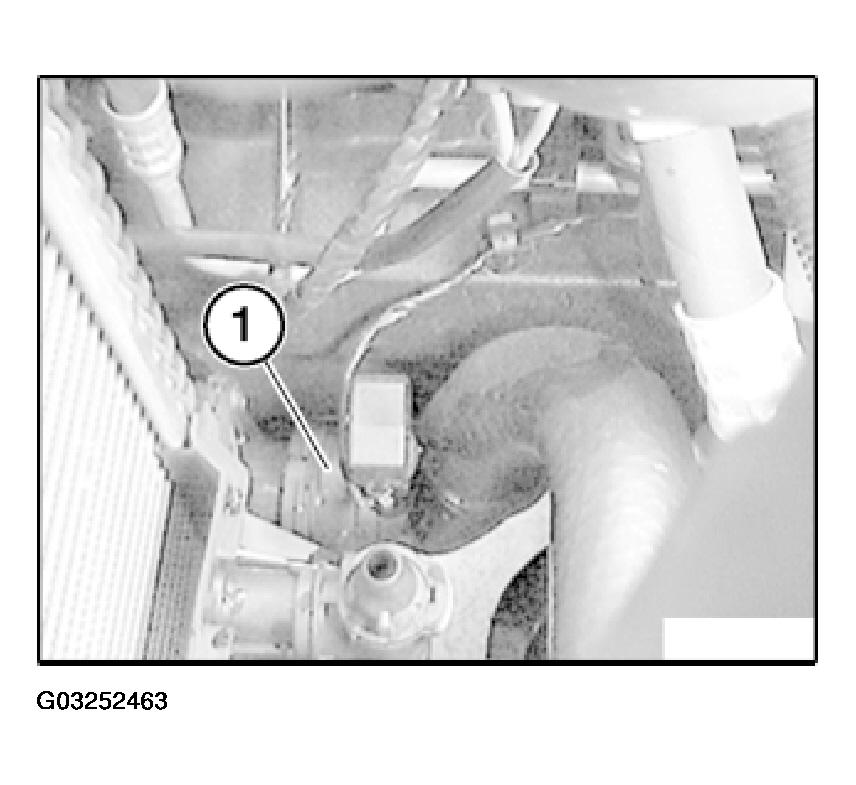

Detach water hose (1) from radiator at bottom.

Fig 1: Detaching Water Hose From Radiator

G03252463

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque, see 17 11 1AZ in COOLING SYSTEM - TIGHTENING TORQUES .

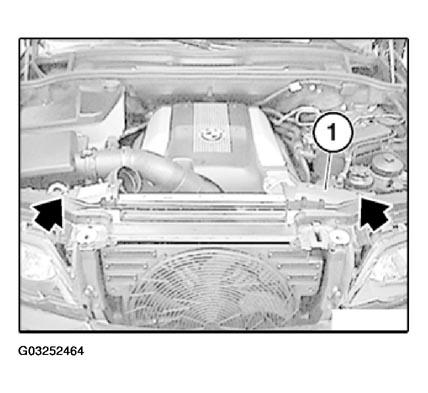

Remove retaining bracket (1).

Fig 2: Removing Retaining Bracket

G03252464

Courtesy of BMW OF NORTH AMERICA, INC.

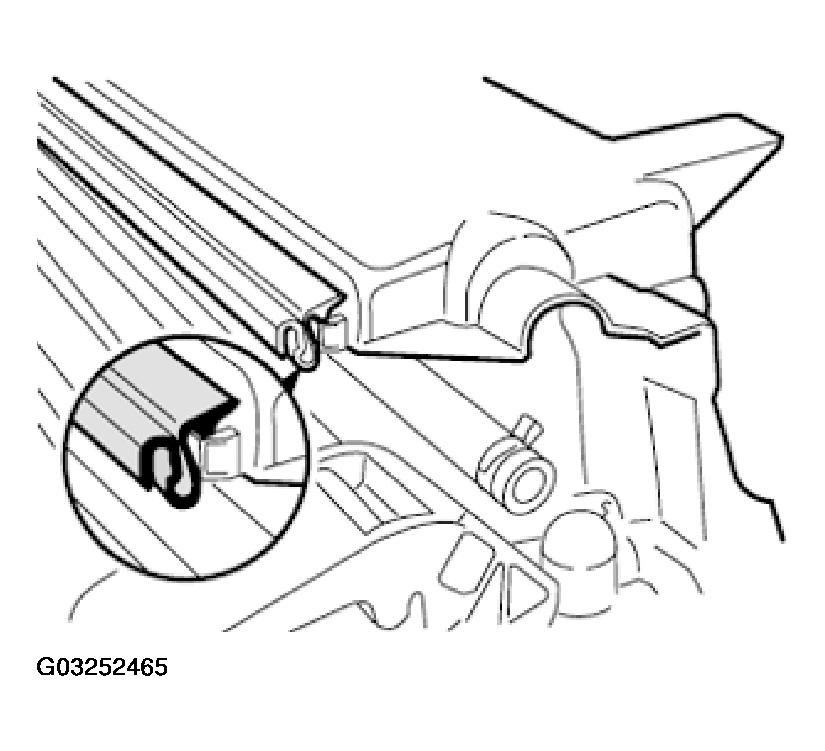

Detach sealing strip between radiator and radiator cassette.

Fig 3: Detaching Sealing Strip Between Radiator And Radiator Cassette

G03252465

Courtesy of BMW OF NORTH AMERICA, INC.

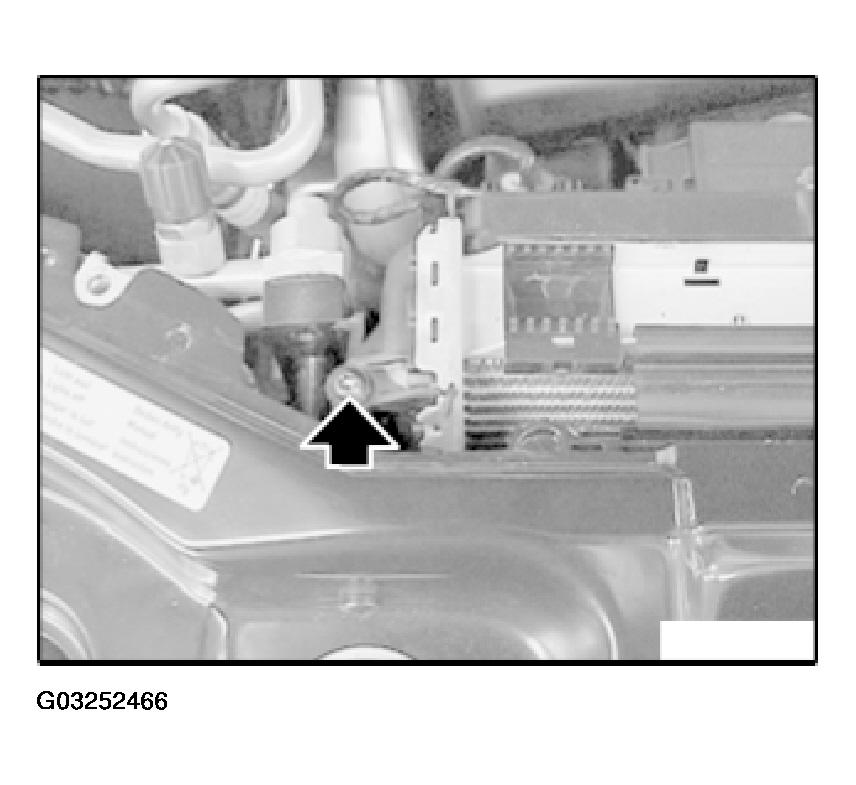

Release screw on right of radiator.

Fig 4: Removing Screw On Right Of Radiator

G03252466

Courtesy of BMW OF NORTH AMERICA, INC.

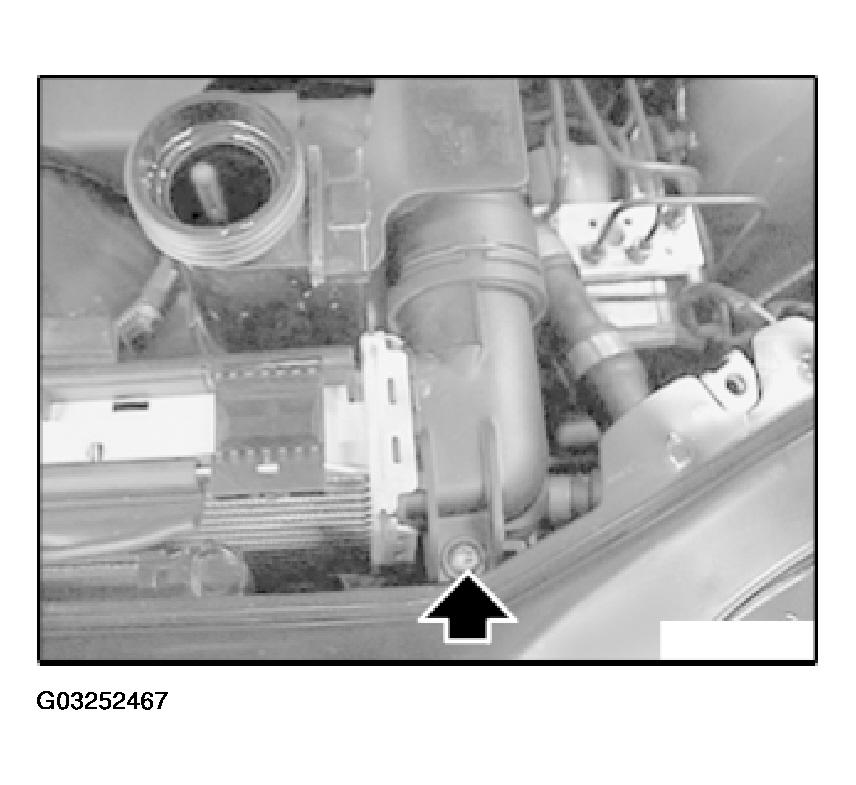

Release screw on left of radiator.

Fig 5: Removing Screw On Left Of Radiator

G03252467

Courtesy of BMW OF NORTH AMERICA, INC.

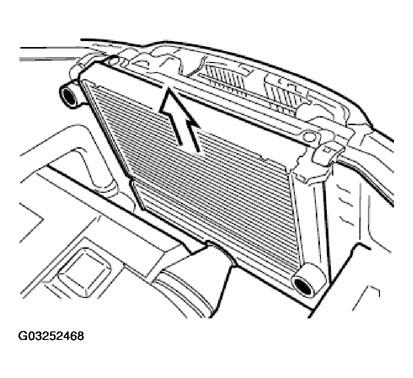

Remove radiator towards top.

Fig 6: Removing Radiator

G03252468

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

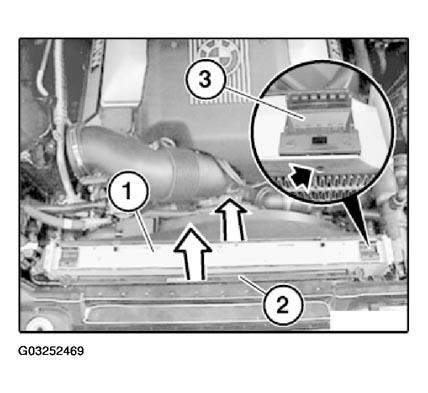

Lugs of both plastic guides (3) must be securely snapped into place in bores.

Replace faulty plastic guides (3).

Fig 7: Installing Plastic Guides And Replacing Faulty Plastic Guide

G03252469

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

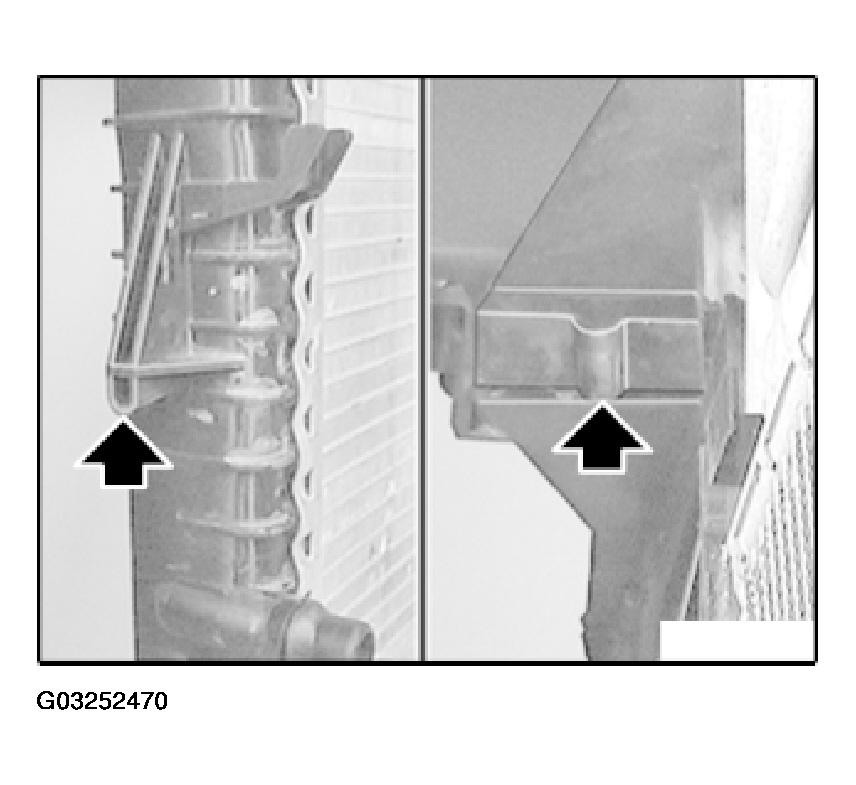

Insert radiator with supports into holders on left and right.

Fig 8: Installing Radiator With Supports Into Holders On Left And Right

G03252470

Courtesy of BMW OF NORTH AMERICA, INC.

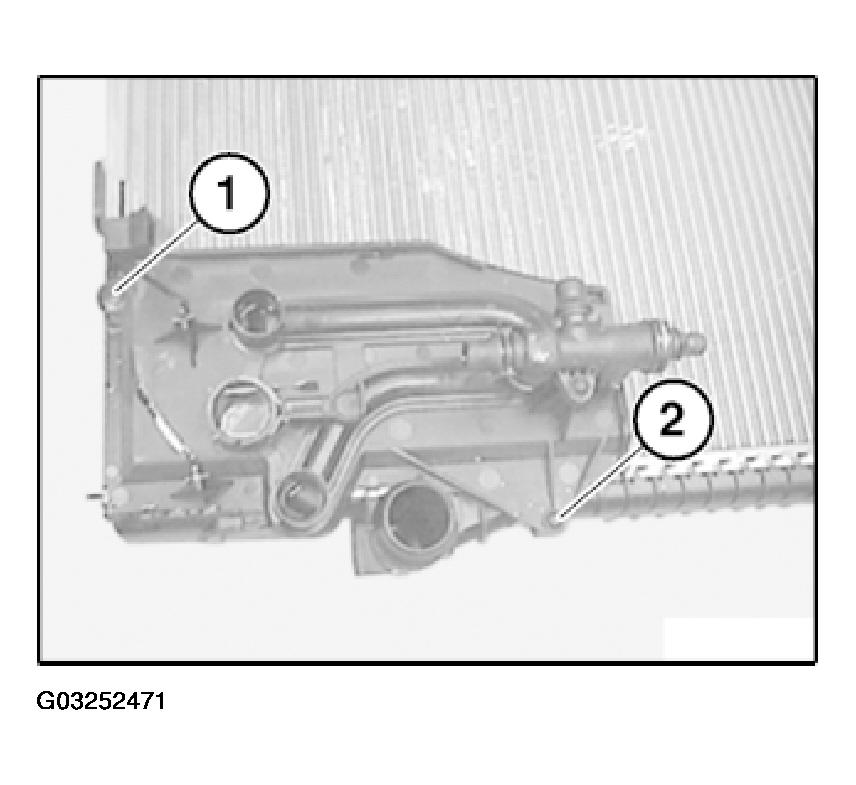

If necessary, remove mounting plate from radiator. Lever out expansion rivet (1). Release screw (2). Remove mounting plate.
