Checking Pressure Relief Valve In Cap:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Detach rubber (1) from hand pump.

Attach special tool 17 0 007 / 17 0 008.

Fig 1: Detaching Rubber From Hand Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Screw cap (1) onto special tool.

Build up pressure with special tool (hand pump) 17 0 002; observe pressure gauge to ascertain when opening pressure is achieved.

Compare opening pressure of pressure relief valve.

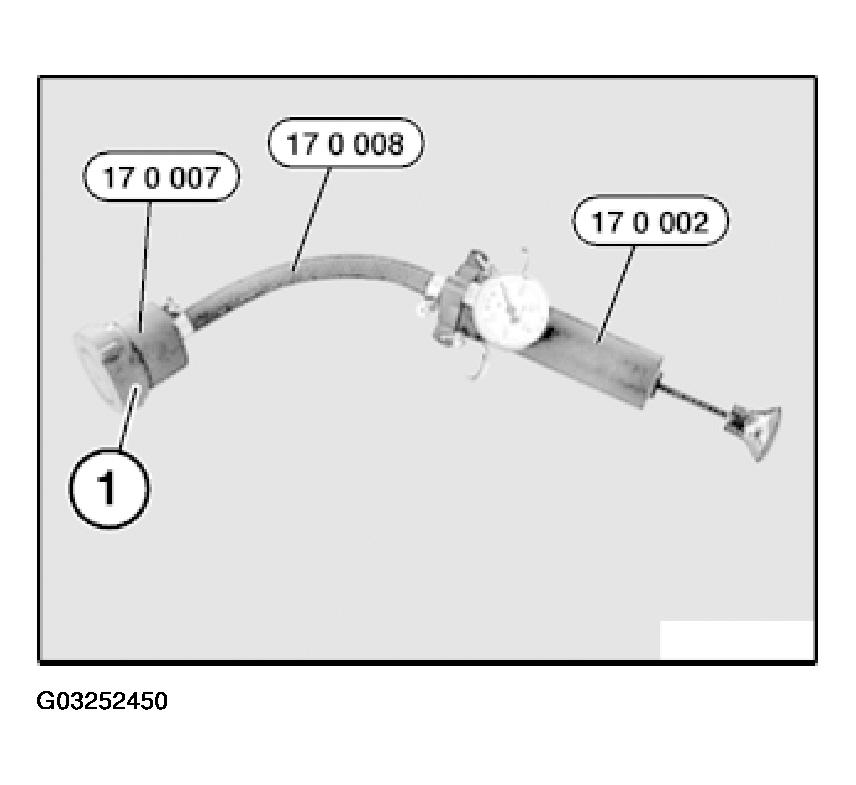

Fig 2: Checking Pressure Relief Valve In Cap

Courtesy of BMW OF NORTH AMERICA, INC.
