M62, M54 and M57

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove reinforcement plate. See FRONT AXLE SUPPORT .

CAUTION: FRONT AXLE SUPPORT contains important installation instructions.

Release screws.

Remove underbody paneling (1).

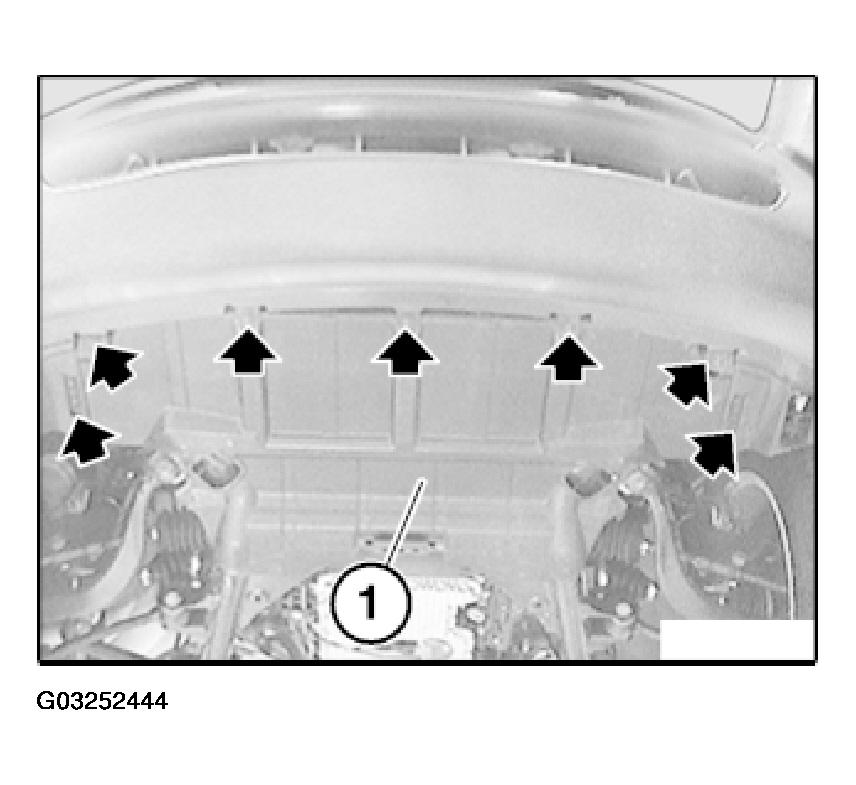

Fig 1: Removing Underbody Paneling
G03252444Courtesy of BMW OF NORTH AMERICA, INC.
