13 54 250 Replacing inlet hose (between mass air flow sensor and throttle body) (M62): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

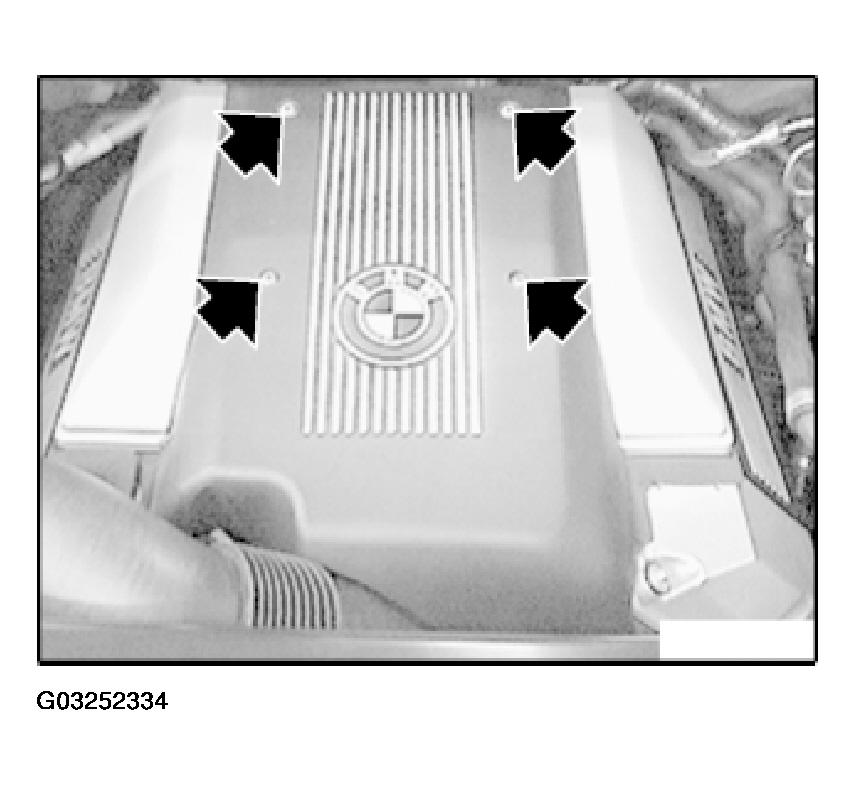

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (2).

Detach intake hose from air-mass flow sensor.

Installation:

Check sealing ring for damage and correct seating, replace if necessary.

Do not use any antiseize agent to install sealing ring/intake hose.

Fig 2: Detaching Intake Hose From Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1).

Detach vacuum hose (2) from intake hose.

Press lock (4) and detach vacuum line (3) from intake hose.
