13 54 250 Replacing inlet hose (between mass air flow sensor and throttle body) (M62): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Push vacuum line (3) onto intake hose until locking ring can clearly be heard snapping into place.

Detach intake hose from throttle assembly.

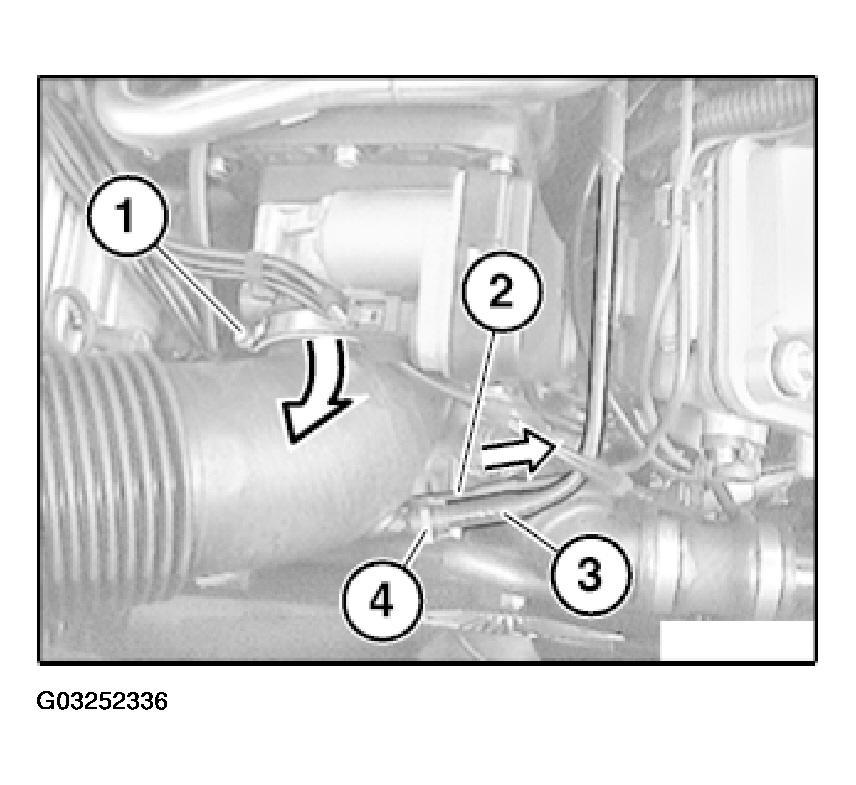

Fig 1: Detaching Vacuum Hose From Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing ring (1) for damage and correct seating, replace if necessary.

Do not use any antiseize agent to install sealing ring/intake hose.

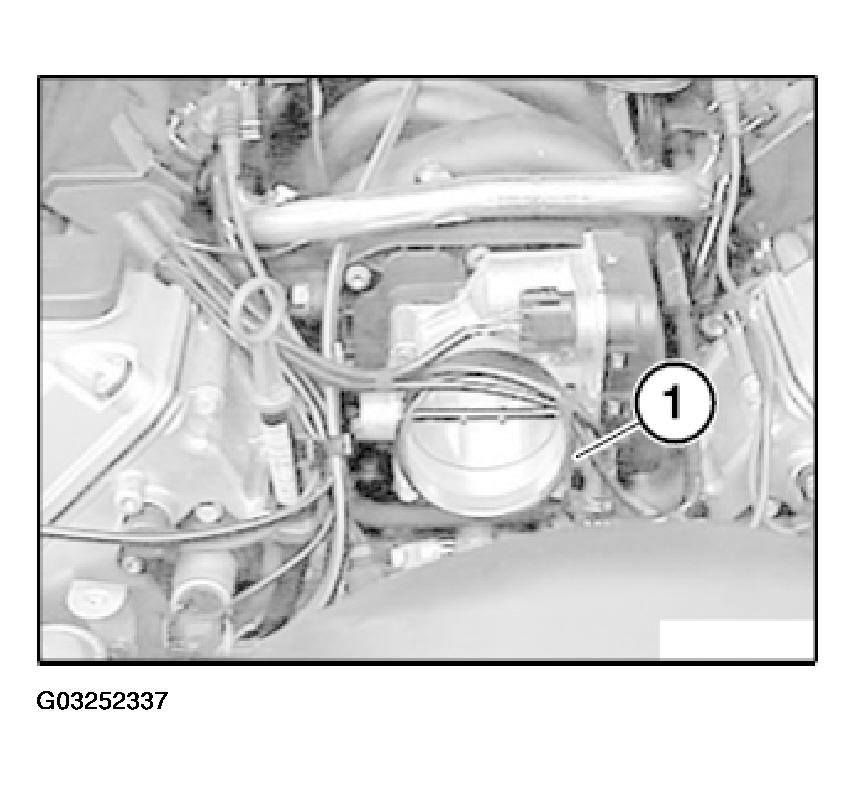

Fig 2: Checking Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
