13 54 030 Removing and installing/sealing throttle assembly (M62): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

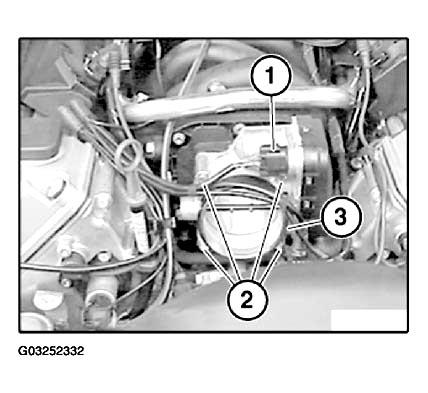

To assist installation, coat sealing ring (3) with anti-friction rubber coating (e.g. petroleum jelly).

Fig 1: Removing Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

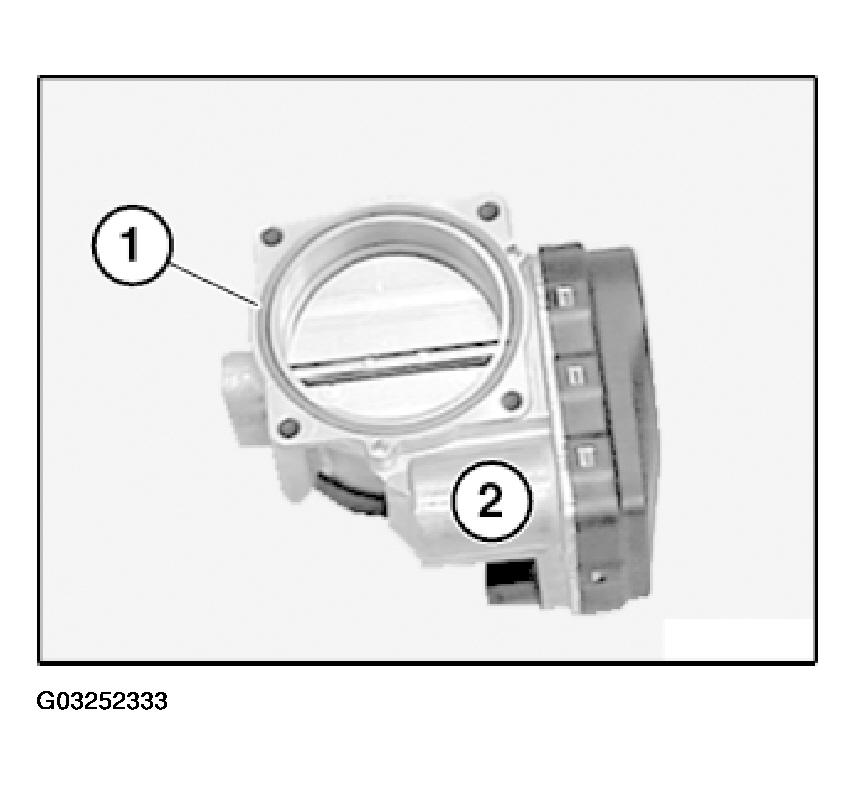

Check sealing ring (1) on throttle assembly (2) for damage and replace if necessary.

Fig 2: Checking Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
