13 62 531 Replacing coolant-temperature sensor (M62): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Interrogate fault memory of DME control unit. Switch off ignition.

WARNING: Danger of scalding!
Only perform these tasks on an engine that has cooled down.

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

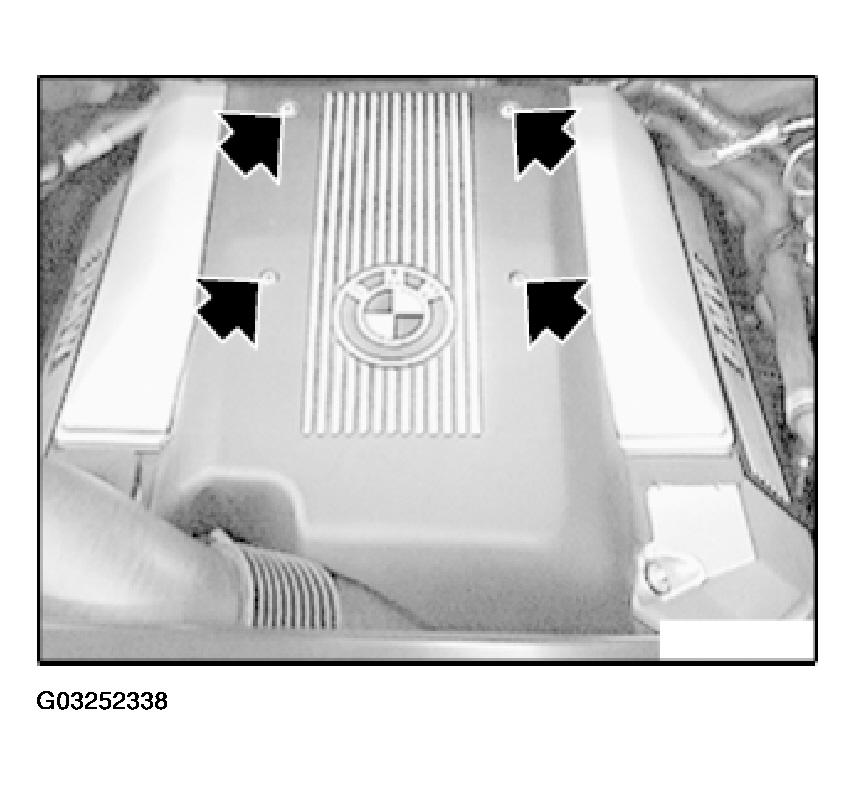

Fig 1: Locating Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Coolant temperature sensor is mounted on water pipe at front.

Remove vacuum lines (1).

Detach plug (2) from temperature sensor.

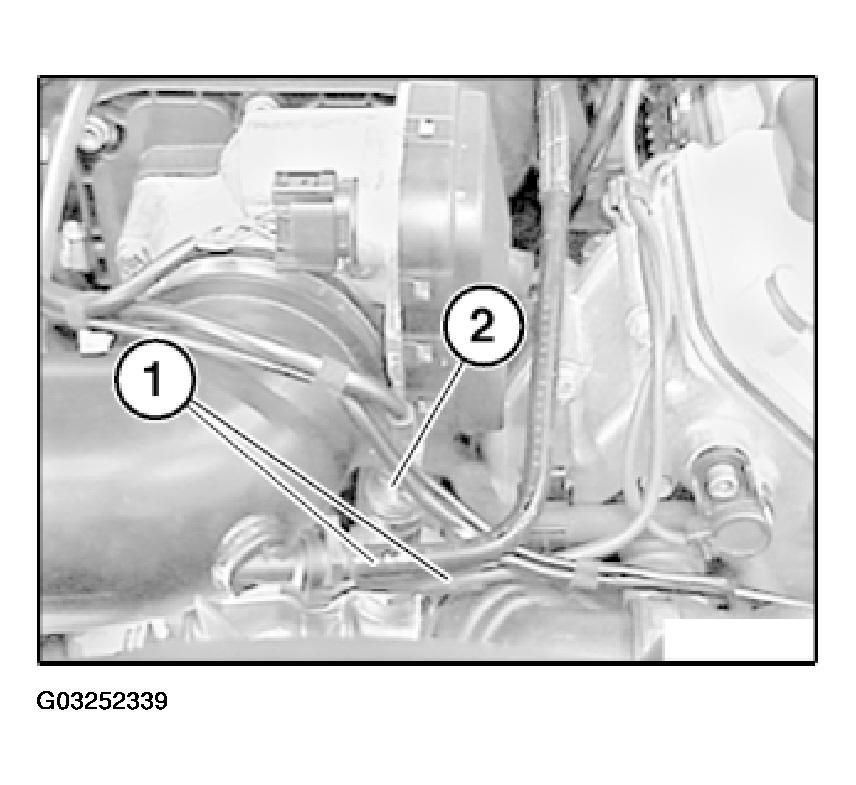

Fig 2: Removing Vacuum Lines And Detaching Plug

Courtesy of BMW OF NORTH AMERICA, INC.
