Removing Fuel Tank Underbody Protection On Left:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release metal screws (1).

Release screws (2).

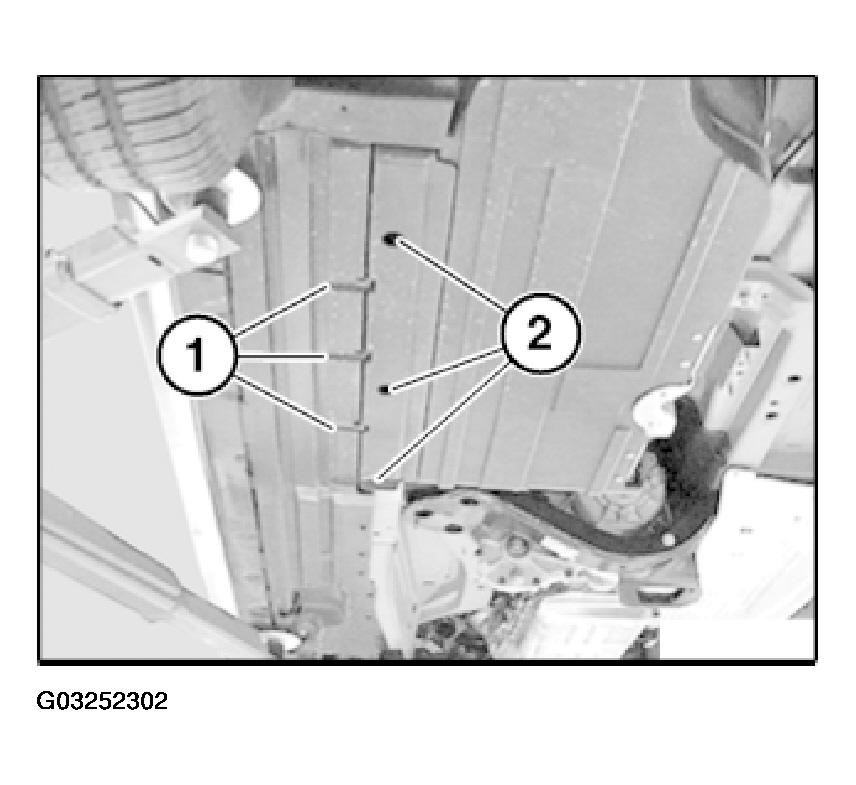

Fig 1: Identifying Metal Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on wheel arch trim, rear left.

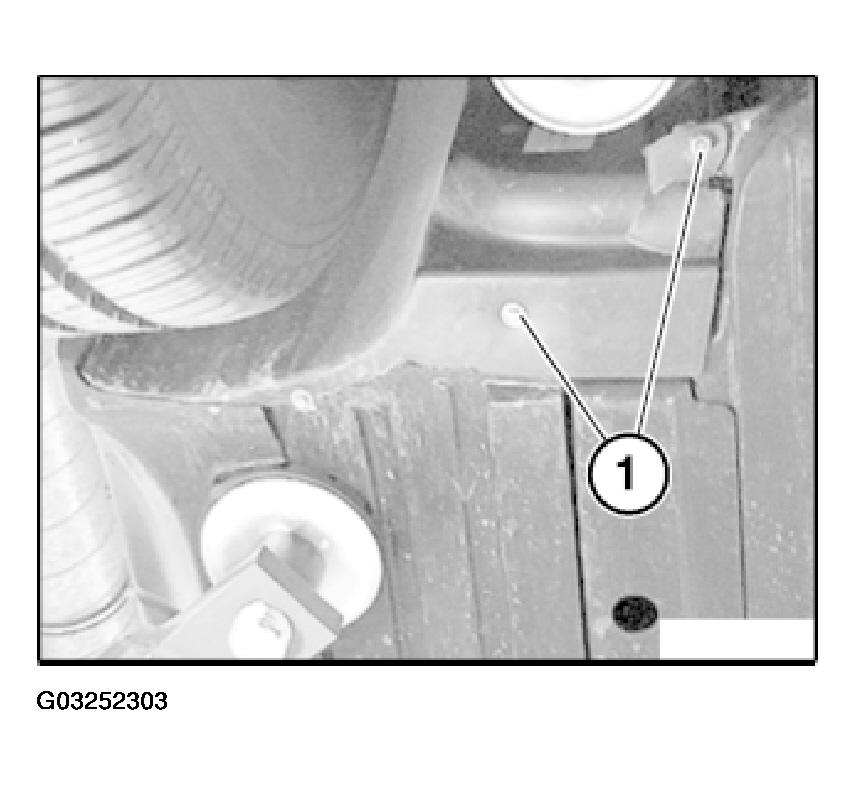

Fig 2: Releasing Screws On Wheel Arch Trim, Rear Left

Courtesy of BMW OF NORTH AMERICA, INC.

Bend wheel arch trim open.

Release screw (1).

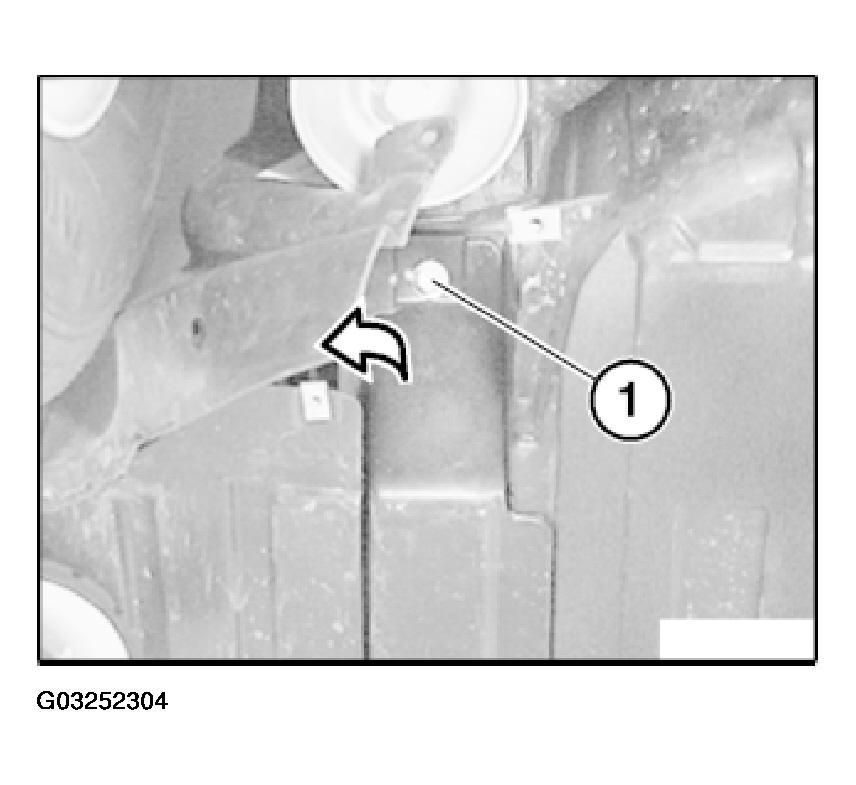

Fig 3: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

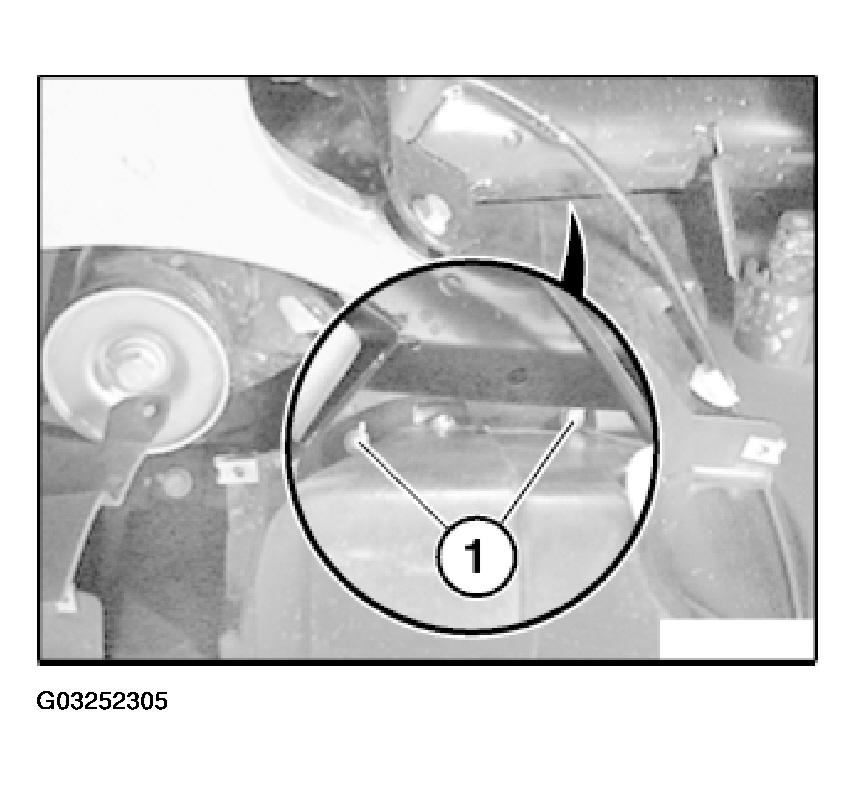

Fig 4: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2).

Release nuts (3).

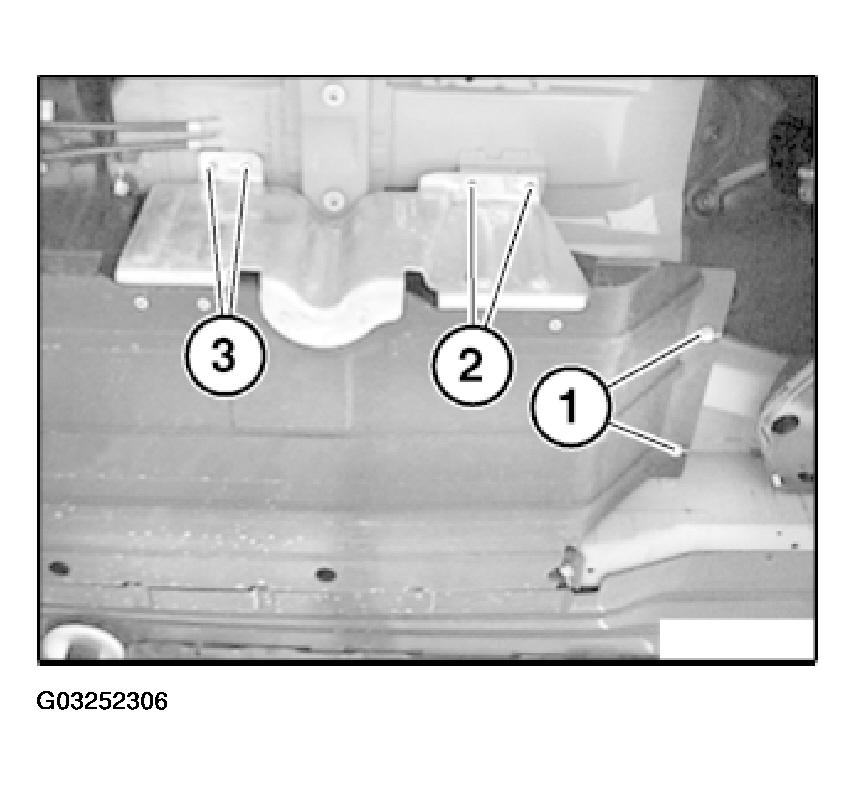

Fig 5: Releasing Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Lower fuel tank underbody protection (1) only until access to fuel filter/pressure regulator is unhindered.

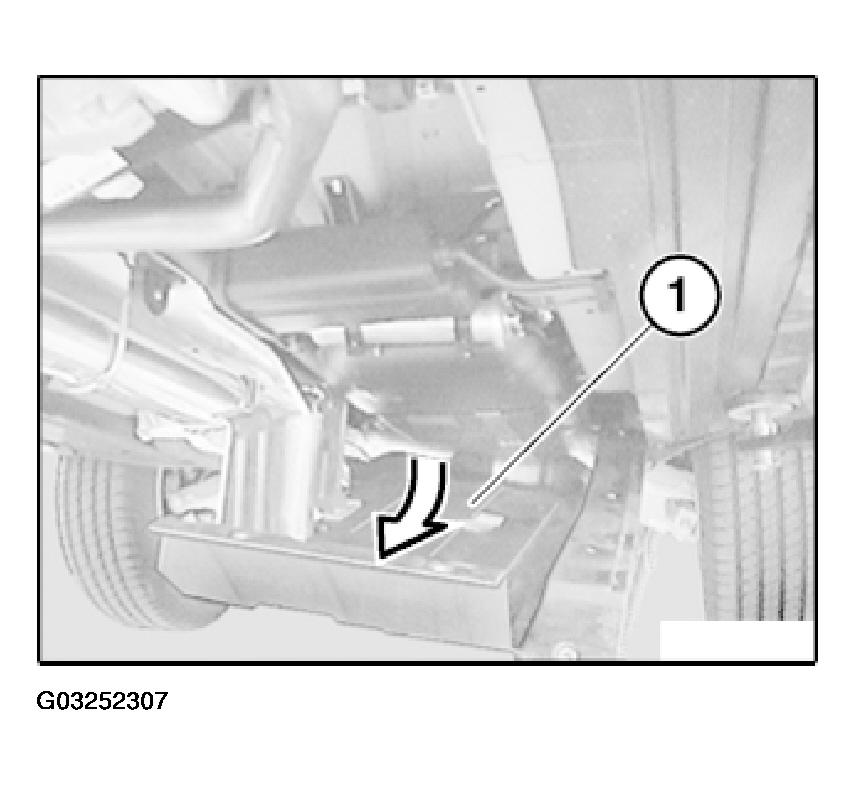

Fig 6: Lowering Fuel Tank Underbody

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check routing of handbrake cable on tank.

If necessary, clip handbrake cable into holders on tank.

NOTE: Fuel pressure regulator is integrated in fuel filter.

Disconnect vacuum hose.

Pull out locking bracket (1) in direction of arrow.

Remove fuel pressure regulator (2).

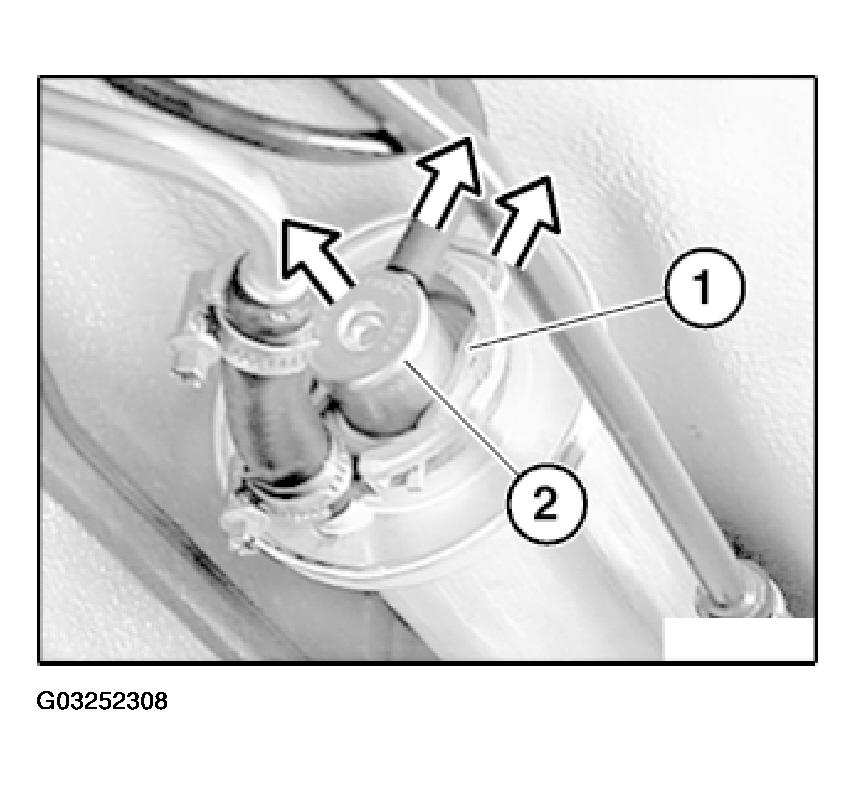

Fig 7: Disconnecting Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-rings on fuel pressure regulator (1).

To aid installation, apply a thin coat of petroleum jelly to O-rings (1).

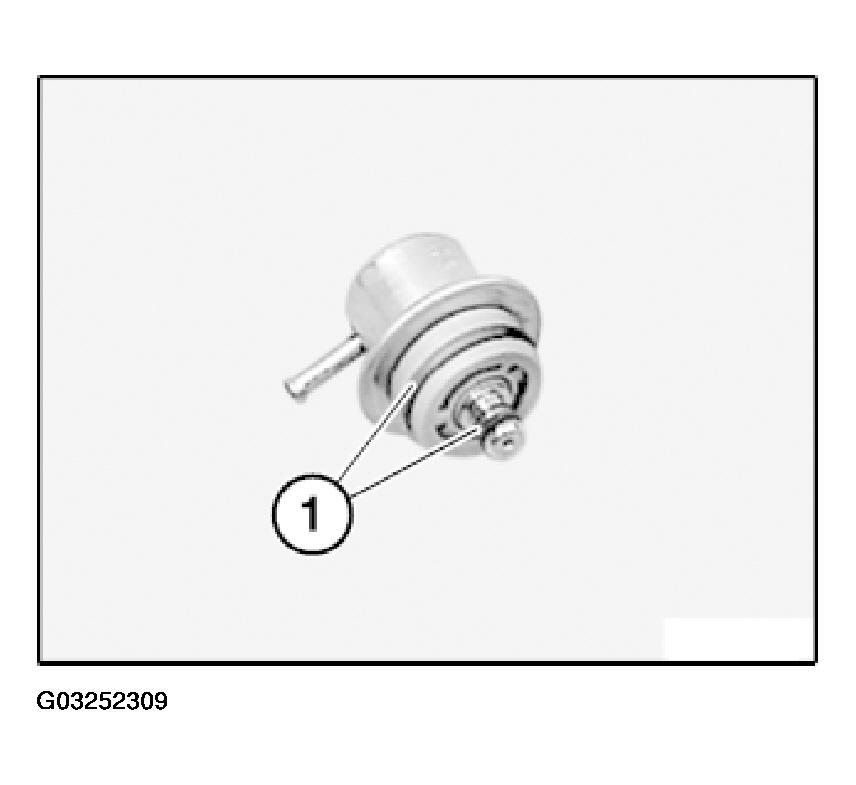

Fig 8: Identifying O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.
