Version, Fuel Hoses With Integrated Unlocking Facility:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Press fuel hose (1) downwards and keep pressed.

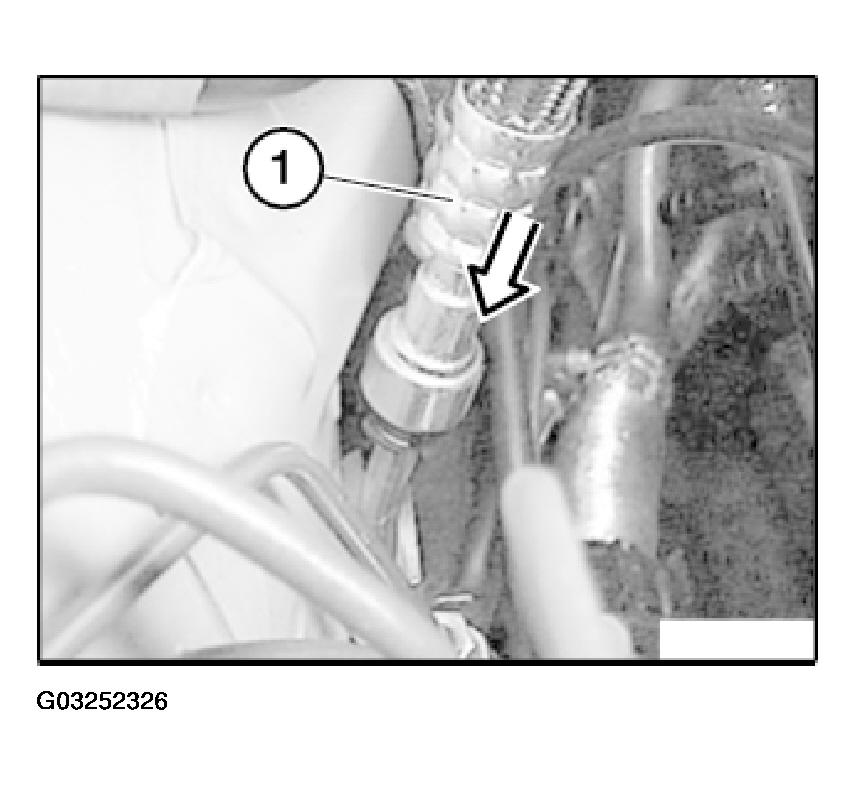

Fig 1: Pressing Fuel Hose Downwards
G03252326Courtesy of BMW OF NORTH AMERICA, INC.

Press unlocking ring (2) upwards, keep pressed and detach fuel hose (1).
