13 53 540 Replacing, sealing fuel hoses: Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Fuel hoses and hose clamps must be replaced each time they are removed!

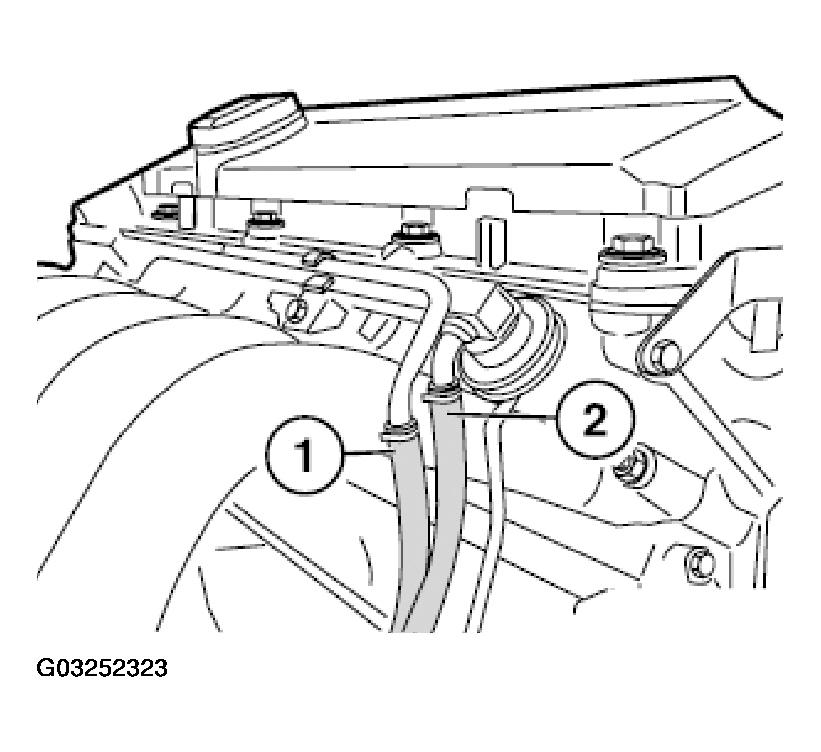

Fig 1: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.

Coat O-ring for assembly with anti-friction agent.

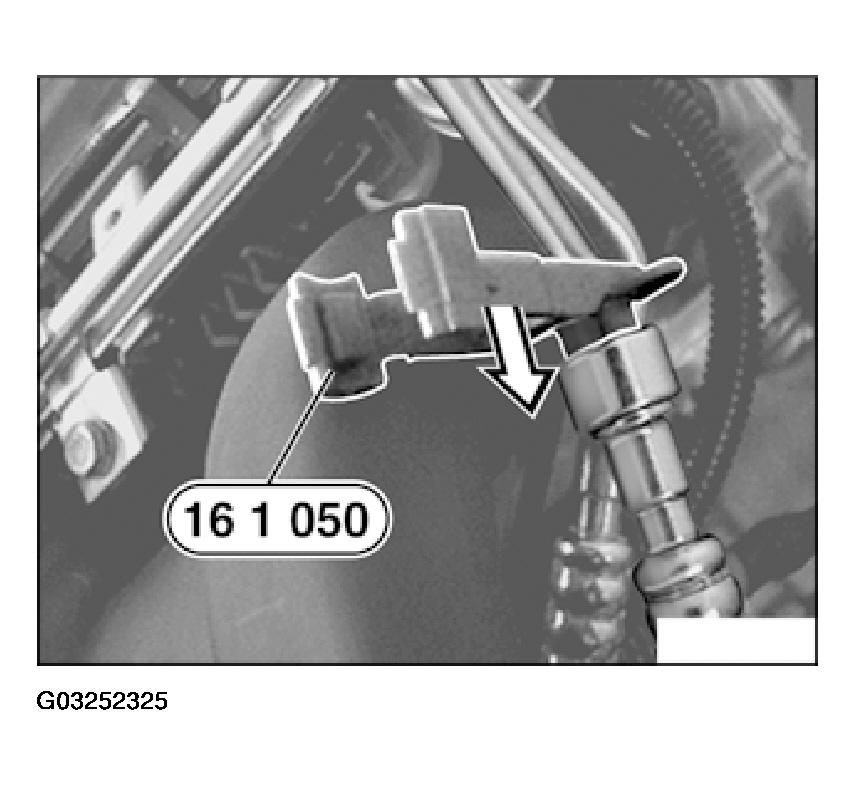

Fig 1: Unlocking Fuel Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Check O-ring in fuel hose and sealing surfaces on fuel lines for damage; replace components if necessary.

Coat O-ring for assembly with anti-friction agent.

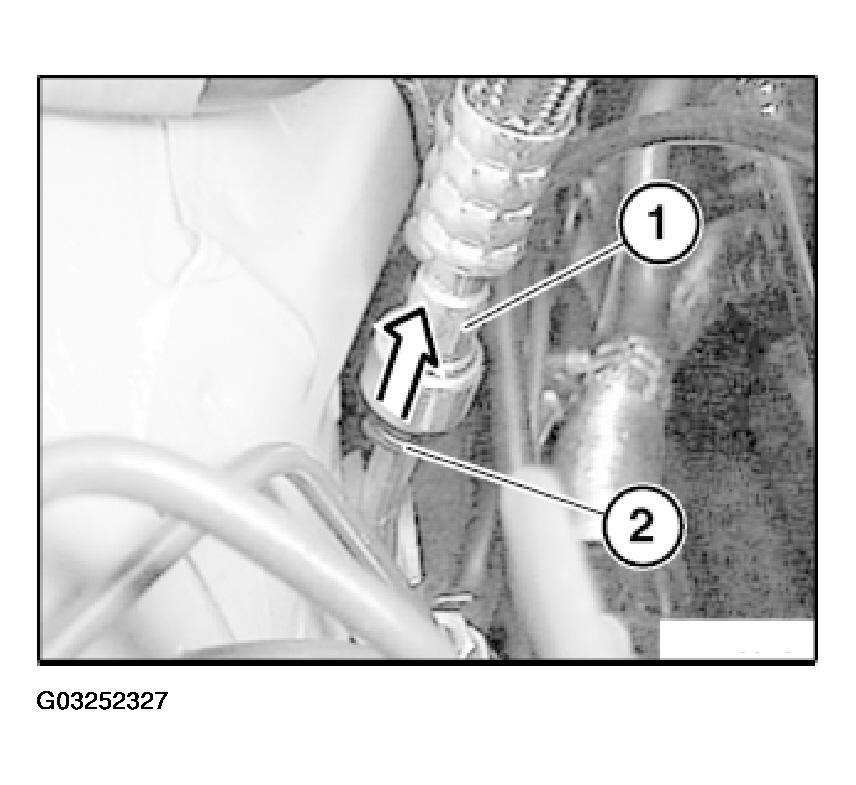

Fig 1: Pressing Unlocking Ring Upwards

Courtesy of BMW OF NORTH AMERICA, INC.
