13 53 240 Replacing complete injection pipe (M62): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit.

Switch off ignition.

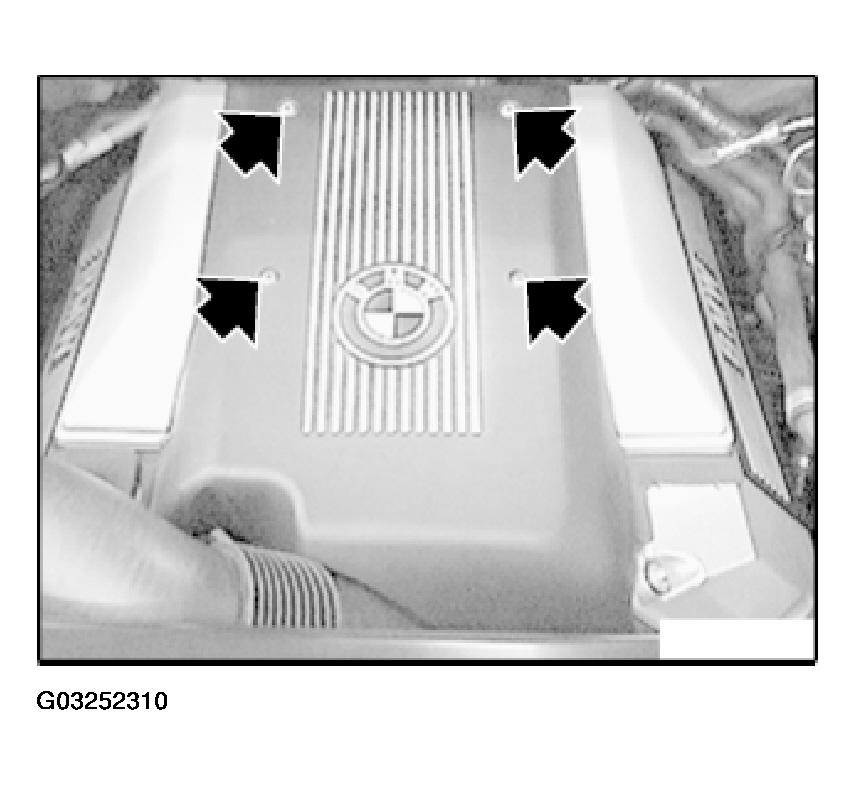

Turn fasteners on acoustic cover 90° counterclockwise.

Remove acoustic cover.

Fig 1: Identifying Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.

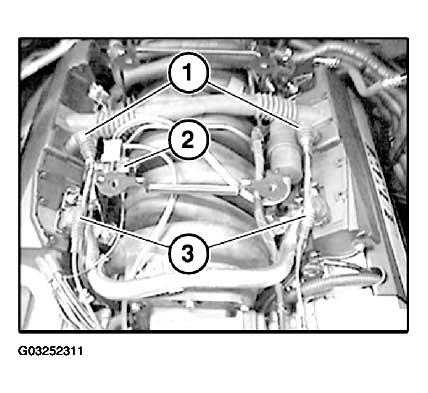

Detach plug connections (1) of knock sensors from cable strips.

Detach plug (2) from electric changeover valve.

Detach plugs (3) of camshaft sensors from cable strips.

Fig 2: Detaching Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

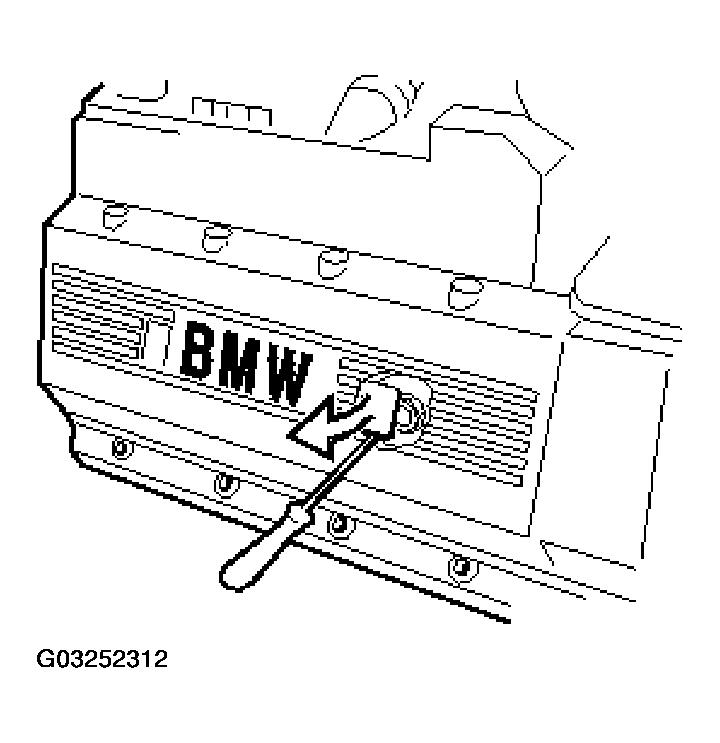

Remove sealing caps on cover of ignition coils on left.

Release nuts.

Remove cover on ignition coils on left.

Fig 3: Removing Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.
