13 53 240 Replacing complete injection pipe (M62): Installation:

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

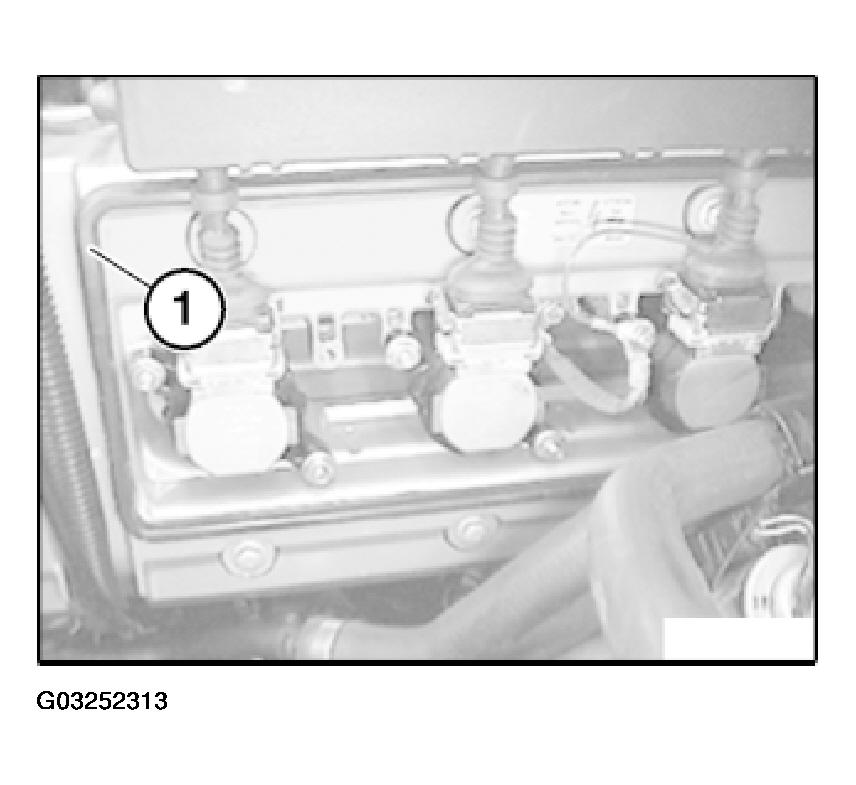

Check profile seal (1) for damage and correct seating, replace if necessary.

Fig 1: Checking Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

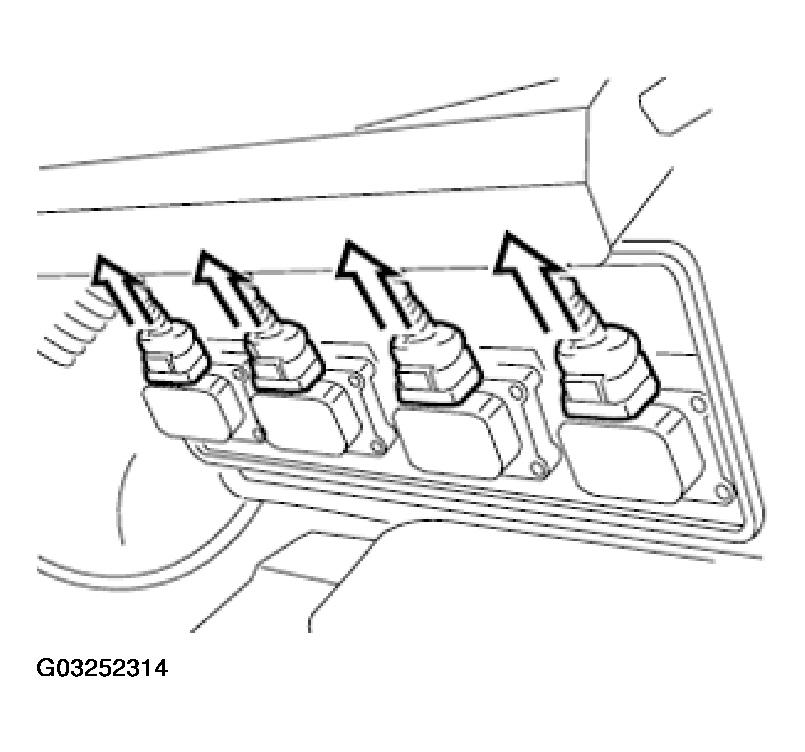

Disconnect plug connection of ignition coils on left cylinder head from ignition coils.

Fig 2: Disconnecting Ignition Coil Connection

Courtesy of BMW OF NORTH AMERICA, INC.

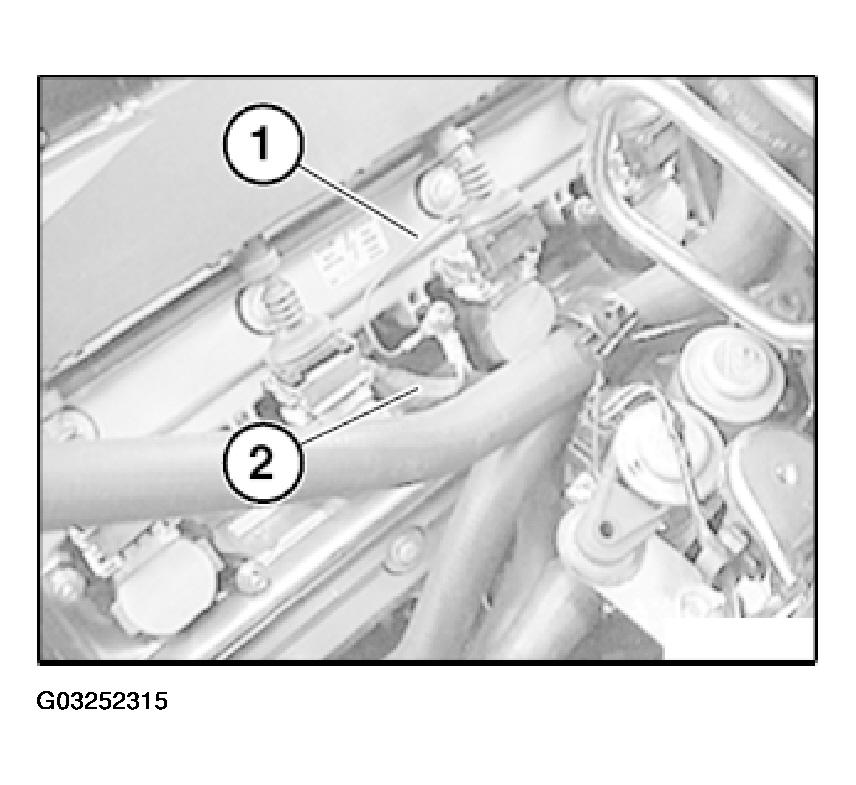

Screw thin grounding strap (1) and wide grounding strap (2) to ignition coil of cylinder 7.

Fig 3: Installing Grounding Strap

Courtesy of BMW OF NORTH AMERICA, INC.

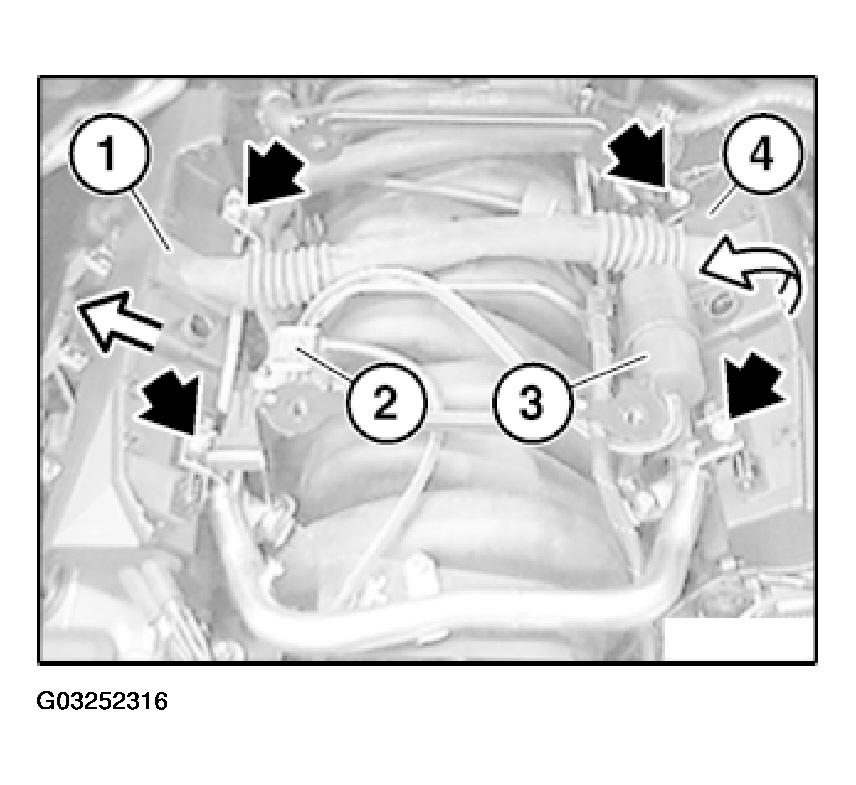

Release nuts.

Disconnect cable strip (1) from fuel injectors.

Place electric changeover valve (2) together with holder to one side.

Disconnect vacuum lines from vacuum accumulator (3).

Place vacuum accumulator (3) together with holder to one side.

Disconnect cable strip (4) from fuel injectors and place to one side.

Fig 4: Disconnecting Cable Strip

Courtesy of BMW OF NORTH AMERICA, INC.

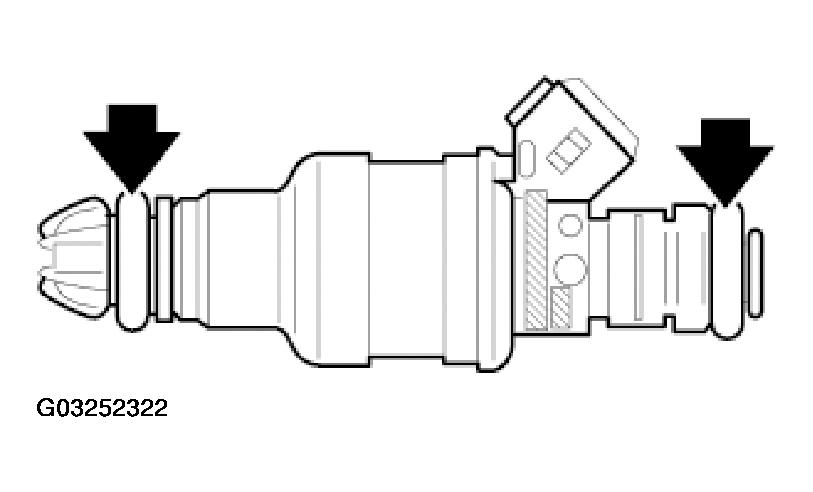

Check O-rings on fuel injectors for damage and replace if necessary.

Coat O-rings with anti-friction rubber coating (e.g. petroleum jelly).

Fig 1: Checking O-Rings On Fuel Injectors

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
